Verilen cıvatalı bağlantıda; a) Cıvatadaki kayma gerilmesini, b) Levhadaki ve çataldaki normal gerilmeleri hesaplayınız. 100 kN CIVATA M12 250mm 5mm ÇATAL 5mm 100 kN
Added by Michael M.
Close
Step 1
We need to calculate the shear stress in the bolt (a) and the normal stresses in the plate and the fork (b). Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 86 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Sri K.

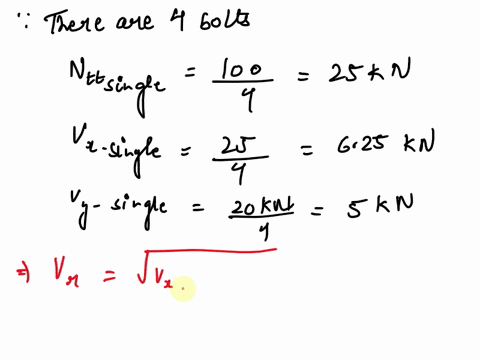

Figure 1 shows a pinned base plate connection for the steel column of 310UC96.8 (Grade 300), which is subjected to axial tensile force (Nt* = 100 kN) and shear forces (Vx* = 25 kN) and (Vy* = 20 kN). The end of the steel column is cold sawn. 6 mm SP fillet weld was used along column section profile. The steel column is supported by a concrete foundation. Design information of the base plate is given below: Design Information: - The compressive strength of concrete, fc' = 25MPa - The cross-sectional area of base plate, A1 = 400 mm x 400 mm - The cross-sectional area of concrete foundation, A2 = 800 mm x 800 mm - Four M16 bolts (Grade 8.8/s) are used for the connection - Tensile strength of bolt (fuf) = 830MPa - M16 bolt axial tension capacity (ΦNtf) =104 kN - M16 bolt (Thread excluded from shear plane) shear capacity (ΦVvf) =82.7 kN - Gauge of anchor bolts, Sg= 100 mm - Pitch of anchor bolts, Sp= 200 mm - Yield strength of base plate, fyi= 250 MPa - Thickness of base plate, ti= 16 mm - Friction co-efficient, μ= 0.55 - Weld capacity (ΦVw)= 0.835 kN/mm Figure 1: Pinned base plate connection Check whether the bolt satisfies the requirement for combined tension and shear.
