Question

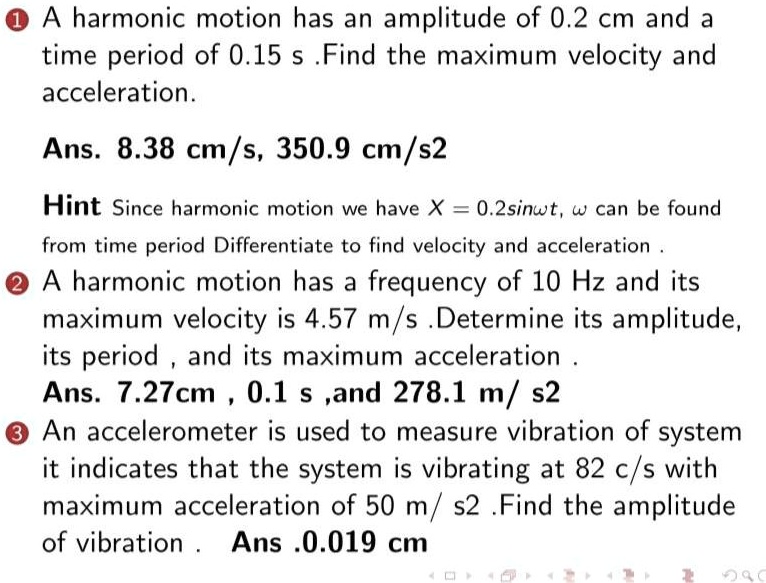

A harmonic motion has an amplitude of 0.2 cm and a time period of 0.15 s .Find the maximum velocity and acceleration. Ans. 8.38 cm/s, 350.9 cm/s2 Hint Since harmonic motion we have X = 0.2sin??t, ? can be found from time period Differentiate to find velocity and acceleration . A harmonic motion has a frequency of 10 Hz and its maximum velocity is 4.57 m/s .Determine its amplitude, its period , and its maximum acceleration . Ans. 7.27cm , 0.1 s ,and 278.1 m/ s2 An accelerometer is used to measure vibration of system it indicates that the system is vibrating at 82 c/s with maximum acceleration of 50 m/ s2 .Find the amplitude of vibration . Ans .0.019 cm

          A harmonic motion has an amplitude of 0.2 cm and a
time period of 0.15 s .Find the maximum velocity and
acceleration.
Ans. 8.38 cm/s, 350.9 cm/s2
Hint Since harmonic motion we have X = 0.2sin??t, ? can be found
from time period Differentiate to find velocity and acceleration .
A harmonic motion has a frequency of 10 Hz and its
maximum velocity is 4.57 m/s .Determine its amplitude,
its period , and its maximum acceleration .
Ans. 7.27cm , 0.1 s ,and 278.1 m/ s2
An accelerometer is used to measure vibration of system
it indicates that the system is vibrating at 82 c/s with
maximum acceleration of 50 m/ s2 .Find the amplitude
of vibration . Ans .0.019 cm

Show more…

A harmonic motion has an amplitude of 0.2 cm and a
time period of 0.15 s .Find the maximum velocity and
acceleration.
Ans. 8.38 cm/s, 350.9 cm/s2
Hint Since harmonic motion we have X = 0.2sin??t, ? can be found
from time period Differentiate to find velocity and acceleration .
A harmonic motion has a frequency of 10 Hz and its
maximum velocity is 4.57 m/s .Determine its amplitude,
its period , and its maximum acceleration .
Ans. 7.27cm , 0.1 s ,and 278.1 m/ s2
An accelerometer is used to measure vibration of system
it indicates that the system is vibrating at 82 c/s with
maximum acceleration of 50 m/ s2 .Find the amplitude
of vibration . Ans .0.019 cm

Added by Martin G.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

07/07/2023

Step 1

- Amplitude \( A = 0.2 \) cm - Time period \( T = 0.15 \) s Show more…

Show all steps

lock

Thanks for your feedback!

Play audio

Feedback

Powered by NumerAI

Madhur L and 77 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Recommended Videos

Recommended Textbooks

Transcript

00:01 Hello students, in this question given as amplitude of the harmonic oscillator is equal to 0 .2 cm and the time period is equal to 0 .15 seconds.

00:14 So, the angular velocity will be equal to 2 pi upon t.

00:19 Now, in this question we have to calculate the maximum velocity of the particle.

00:25 So, maximum velocity is equal to the formula is a into omega.

00:31 Now, we will substitute all the values 0 .2 cm into 2 into 3 .14 upon 0 .15.

00:40 So, after calculation we will get the maximum velocity of the particle is equal to the 8 .38 cm per second.

00:55 Next, we have to calculate the acceleration.

01:01 So, this is equal to minus a omega square.

01:05 The formula is this.

01:06 Now, we will substitute.

01:07 The negative sign shows that the particle is moving towards the center or the equilibrium position.

01:17 We can say that.

01:18 So, this is equal to minus 0 .2 into 2 into 3 .14 upon 0 .15 whole square.

01:30 So, after calculation we will get the acceleration.

01:32 After calculation, we will leave the negative sign only magnitude.

01:37 So, 350 .9 cm per second square.

01:48 In the next question given as frequency is equal to 10 hz...
