Voltage across each elements of a series LCR circuit are given by VL = 60V, Vc = 20V, Vr = 30V. The source voltage will be ?
Added by Sotor S.
Step 1
Step 1: Use the formula for calculating the source voltage in a series LCR circuit: \[ V_{\text{source}} = \sqrt{V_R^2 + (V_L - V_C)^2} \] Show more…
Show all steps
Your feedback will help us improve your experience
Kamlesh Goyal and 100 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

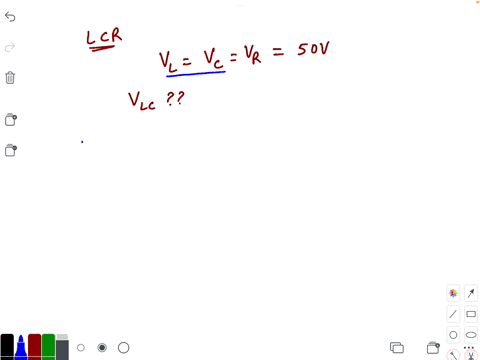

In an LCR series ac circuit the voltage across each of the components $\mathrm{L}, \mathrm{C}$ and $\mathrm{R}$ is $50 \mathrm{~V}$. The voltage across the LC combination will be (a) $50 \mathrm{~V}$ (b) $50 \sqrt{2} \mathrm{~V}$ (c) $100 \mathrm{~V}$ (d) $0 \mathrm{~V}$ (zero)
In an LCR series AC circuit, the voltage across each of the components, $L, C$, and $R$ is $50 \mathrm{~V}$. The voltage across the LC combination will be (A) $100 \mathrm{~V}$ (B) $50 \sqrt{2} \mathrm{~V}$ (C) $50 \mathrm{~V}$ (D) $0 \mathrm{~V}$ (zero)
