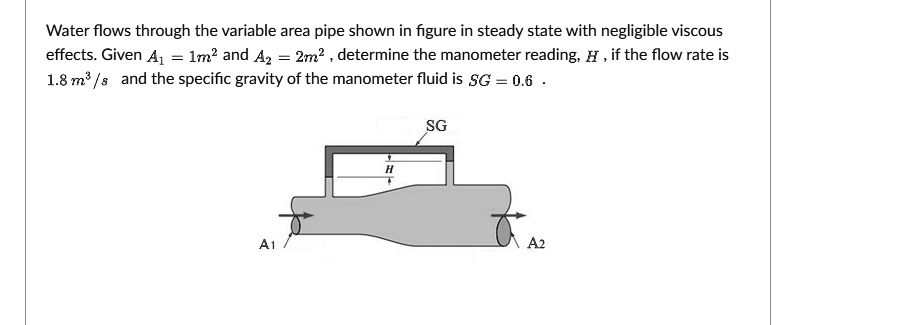

Water flows through the variable area pipe shown in figure in steady state with negligible viscous effects. Given A1 = 1m² and A2 = 2m² , determine the manometer reading, H , if the flow rate is 1.8 m³/s and the specific gravity of the manometer fluid is SG = 0.6 .

Name: Water flows through the variable area pipe shown in figure in steady state with negligible viscous effects. Given A1 = 1m² and A2 = 2m² , determine the manometer reading, H , if the flow rate is 1.8 m³/s and the specific gravity of the manometer fluid is SG = 0.6 .
Uploaded: 2022-04-21T10:35:38-08:00
Duration: 3 min 13 s
Channel: Madhur L
Description: Water flows through the variable area pipe shown in figure in steady state with negligible viscous effects. Given A1 = 1m² and A2 = 2m² , determine the manometer reading, H , if the flow rate is 1.8 m³/s and the specific gravity of the manometer fluid is SG = 0.6 .

          Water flows through the variable area pipe shown in figure in steady state with negligible viscous effects. Given A1 = 1m² and A2 = 2m² , determine the manometer reading, H , if the flow rate is 1.8 m³/s and the specific gravity of the manometer fluid is SG = 0.6 .

Water flows through the variable area pipe shown in figure in steady state with negligible viscous effects. Given A1 = 1m² and A2 = 2m² , determine the manometer reading, H , if the flow rate is 1.8 m³/s and the specific gravity of the manometer fluid is SG = 0.6 .

Added by Jessica C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

04/21/2022

Step 1

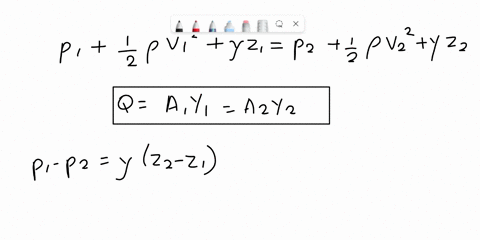

8 \times 0.8 \times \left(1.8^2 - 0.9^2\right) \] Show more…
