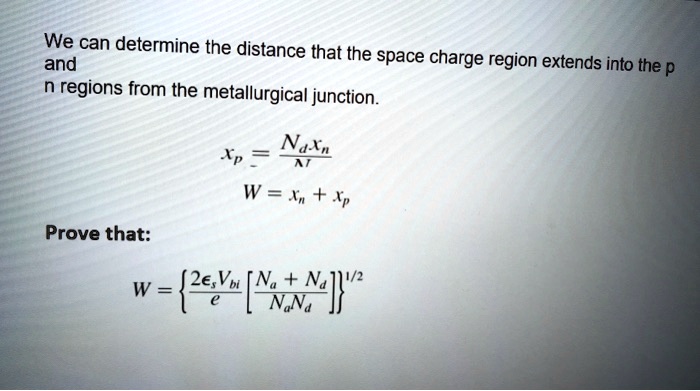

We can determine the distance that the space charge region extends into the p and n regions from the metallurgical junction. $x_p = \frac{N_d x_n}{N}$ $W = x_n + x_p$ Prove that: $W = \left\{\frac{2 \epsilon_s V_{bi}}{e} \left[\frac{N_a + N_d}{N_a N_d}\right] \right\}^{1/2}$
Added by Tina R.
Close
Step 1
Start with the equation Naxn = ax W = xn + xp. This equation relates the width of the space charge region (W) to the concentrations of acceptor impurities (Na) in the p-region and donor impurities (N) in the n-region. Show more…
Show all steps
Your feedback will help us improve your experience
Eduard Sanchez and 71 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
thoughtful
Rajani K.

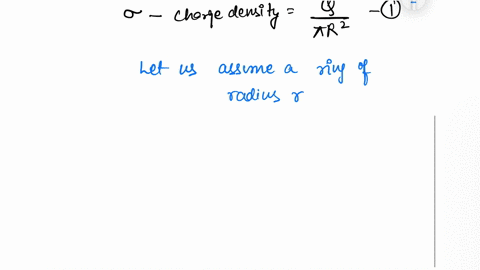

The electric field along the axis of a uniformly charged disk of radius $R$ and total charge $Q$ was calculated in Example 23.3. Show that the electric field at distances $x$ that are large compared with $R$ approaches that of a particle with charge $Q=\sigma \pi R^{2} .$ Suggestion: First show that $x /\left(x^{2}+R^{2}\right)^{1 / 2}=(1+$ $\left.R^{2} / x^{2}\right)^{-1 / 2}$ and use the binomial expansion $(1+\delta)^{n} \approx 1+$ $n \delta,$ when $\delta<<1$.

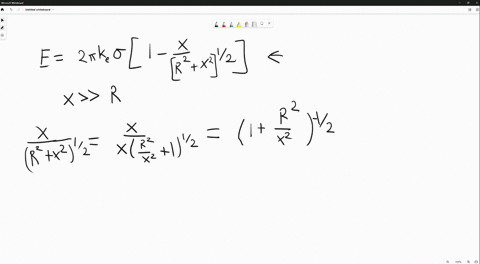

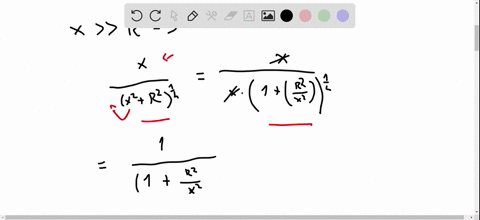

The electric field along the axis of a uniformly charged disk of radius $R$ and total charge $Q$ was calculated in Example $23.9 .$ Show that the electric field at distances $x$ that are large compared with $R$ approaches that of a point charge $Q=\sigma \pi R^{2}$ (Suggestion: First show that $x /\left(x^{2}+R^{2}\right)^{1 / 2}=$ $\left(1+R^{2} / x^{2}\right)^{-1 / 2}$ and use the binomial expansion $(1+\delta)^{n} \approx 1+n \delta$ when $\delta<1 . )$
