We want to draw a 0.3-inch diameter copper wire having a yield strength of 20,000 psi into 0.25-inch diameter wire. (a) Find the draw force, assuming no friction; (b) Will the drawn wire break during the drawing process? Show why.
Added by Antonia F.
Step 1
The cross-sectional area \( A \) of a wire with diameter \( d \) is given by: \[ A = \frac{\pi d^2}{4} \] For the initial wire with a diameter of 0.3 inches: \[ A_1 = \frac{\pi (0.3)^2}{4} \] For the final wire with a diameter of 0.25 inches: \[ A_2 = \frac{\pi Show more…
Show all steps
Close
Your feedback will help us improve your experience
Adriano Chikande and 81 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

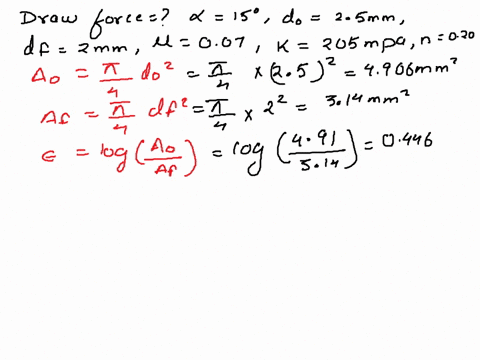

Wire is drawn through a draw die with an entrance angle of 15°. The starting diameter is 2.5 mm and the final diameter is 2.0 mm. The coefficient of friction at the work-die interface is 0.07. The metal has a strength coefficient K = 205 MPa and a strain hardening exponent n = 0.20. Determine the draw stress and draw force in this operation.
Madhur L.

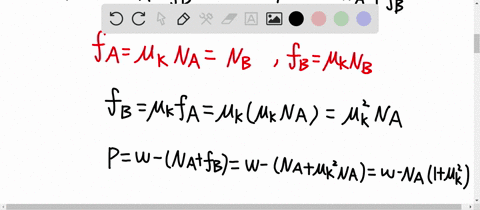

Wire is being drawn at a constant rate from a spool by applying a vertical force $P$ to the wire as shown. The spool and the wire wrapped on the spool have a combined weight of 20 Ib. Knowing that the coefficients of friction at both $A$ and $B$ are $\mu_{s}=0.40$ and $\mu_{k}=0.30,$ determine the required magnitude of force $\mathbf{P}$.
Friction
The Laws of Dry Friction
