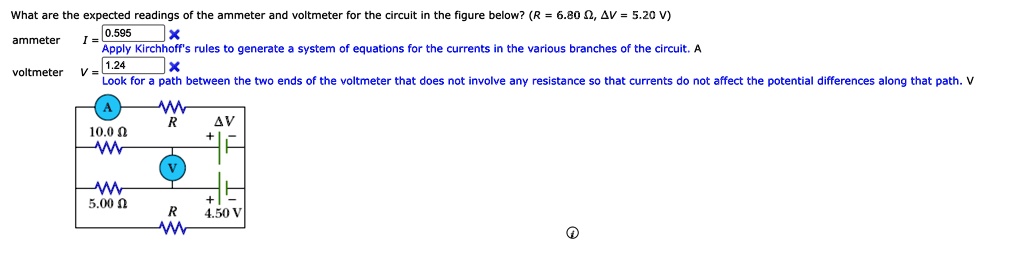

What are the expected readings of the ammeter and voltmeter for the circuit in the figure below? ($$R = 6.80 \Omega$$, $$\Delta V = 5.20 V$$)
ammeter $$I = 0.595$$
Apply Kirchhoff's rules to generate a system of equations for the currents in the various branches of the circuit. A
voltmeter $$V = 1.24$$
Look for a path between the two ends of the voltmeter that does not involve any resistance so that currents do not affect the potential differences along that path. V
$$10.0 \Omega$$
$$R$$
$$\Delta V$$
$$5.00 \Omega$$
$$R$$
$$4.50 V$$
