Magnetic field of 4 current carrying wires Four, long, parallel power lines each carry 100-A currents. A cross-sectional diagram of these lines is a square, 20.0 cm on each side. For each of the three cases shown in the figure below, calculate the magnetic field at the center of the square. (a) (b) (c)

          Magnetic field of 4 current carrying wires

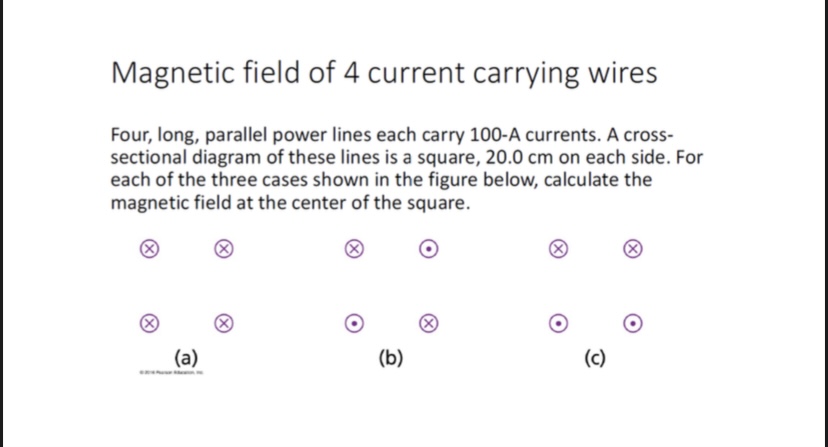

Four, long, parallel power lines each carry 100-A currents. A cross-sectional diagram of these lines is a square, 20.0 cm on each side. For each of the three cases shown in the figure below, calculate the magnetic field at the center of the square.
(a)
(b)
(c)

Magnetic field of 4 current carrying wires
Four, long, parallel power lines each carry 100-A currents. A cross-sectional diagram of these lines is a square, 20.0 cm on each side. For each of the three cases shown in the figure below, calculate the magnetic field at the center of the square.
(a)
(b)
(c)

Added by Memo T.

University Physics with Modern Physics

Hugh D. Young 13th Edition

Chapter 28

Instant Answer

Solved by Expert Prachita Kush

06/10/2022

Step 1

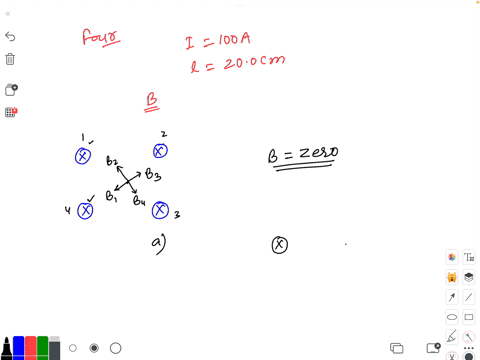

Given: Current in each wire, I = 100 A Distance from the center of the square to each wire, r = 0.141 m Using the formula for magnetic field due to a current-carrying wire at a distance r: \[ B = \frac{\mu_0 I}{2\pi r} \] Substitute the values: \[ B = Show more…
