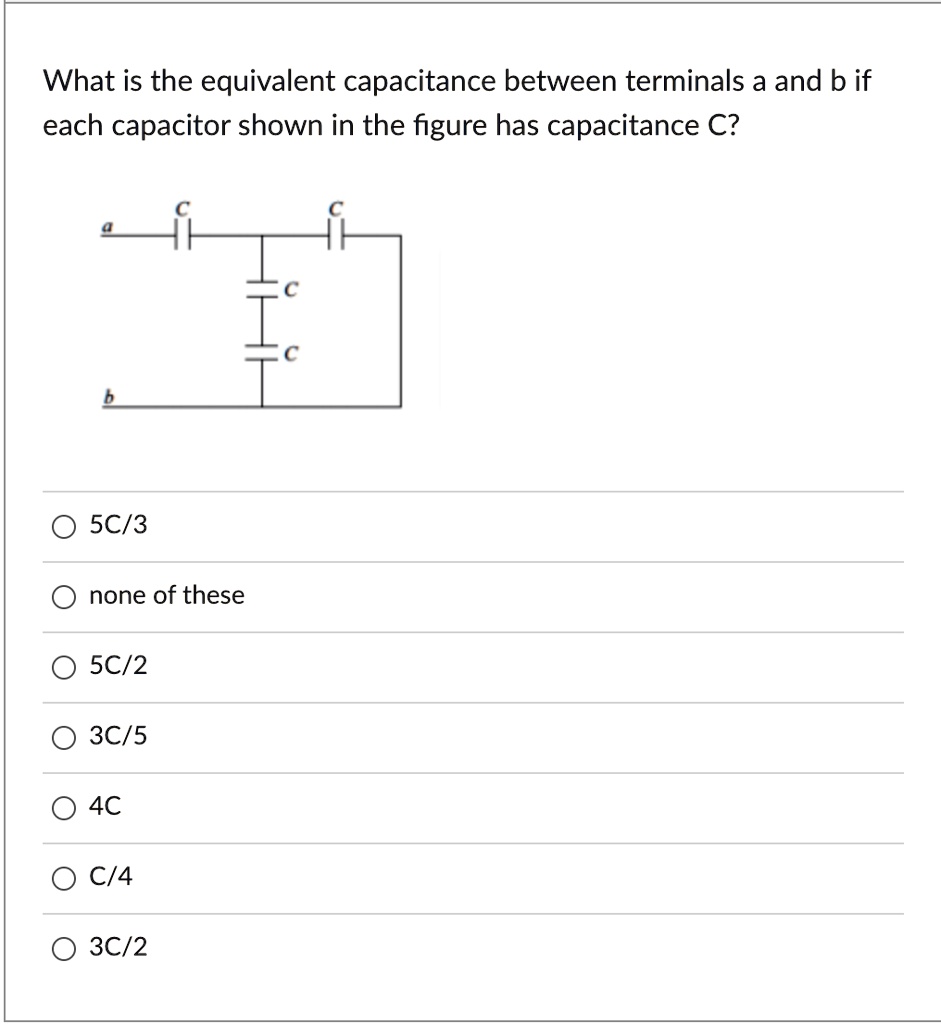

What is the equivalent capacitance between terminals a and b if each capacitor shown in the figure has capacitance C? 5C/3 none of these 5C/2 3C/5 4C C/4 3C/2
Added by Maria C.
Close
Step 1
The circuit consists of two capacitors in series on the top branch and two capacitors in series on the bottom branch. These two branches are in parallel with each other. Show more…
Show all steps
Your feedback will help us improve your experience
Maitreya E and 80 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Five identical capacitors, each with capacitance $C$ are connected as shown in the figure. Then the equivalent capacitance between $A$ and $B$ is (a) $\bar{C}$ (b) $5 C$ (c) $C / 5$ (d) $3 C$

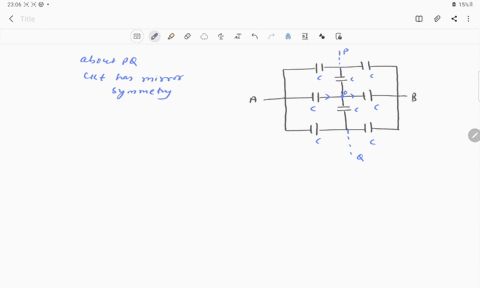

In the given Fig. $13.39$, find the equivalent capacitance between $A$ and $B$. (A) $\frac{2 C}{3}$ (B) $\frac{5 C}{4}$ (C) $\frac{3 C}{2}$ (D) $\frac{4 C}{5}$
Find (a) the equivalent capacitance of the capacitors in Figure $P 16.39,(b)$ the charge on each capacitor, and $(c)$ the potential difference across each capacitor.
