5 What is the equivalent resistance between points a and b when R = 12 ?? a 1. 20 ? 2. 16 ? 3. 24 ? 4. 28 ? 5. 6.0 ? If 480 C pass through a 4.0-? resistor in 10 min, what is the potential difference across the resistor?
Added by Janet R.
Close
Step 1
First, the question seems to be incomplete or incorrectly formatted, as it's not clear how the resistors are connected (in series or parallel) between points a and b. Show more…
Show all steps
Your feedback will help us improve your experience
Nishant Kumar and 89 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Five resistors are connected as shown. What is the equivalent resistance between points A and B? 16 Ω 6.8 Ω 9.2 Ω 3.4 Ω 2.1 Ω
Adi S.

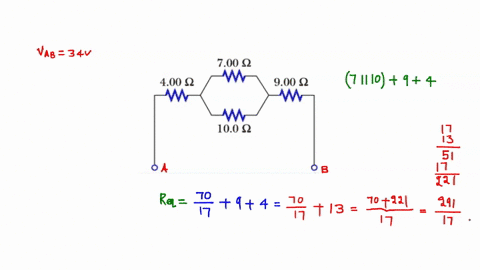

a) Find the equivalent resistance between points a and b in Figure. b) Calculate the current in each resistor if a potential difference of 34.0 V is applied between points a and b. 7.00 ̐ 4.00 ̐ 9.00 ̐ 10.0 ̐
Sahil K.
(a) Find the equivalent resistance between points $A$ and $B$ for the combination of resistors shown. (b) What is the potential difference across each of the $4.0-\Omega$ resistors? (c) What is the current in the $3.0-\Omega$ resistor? (FIGURE CAN'T COPY)
