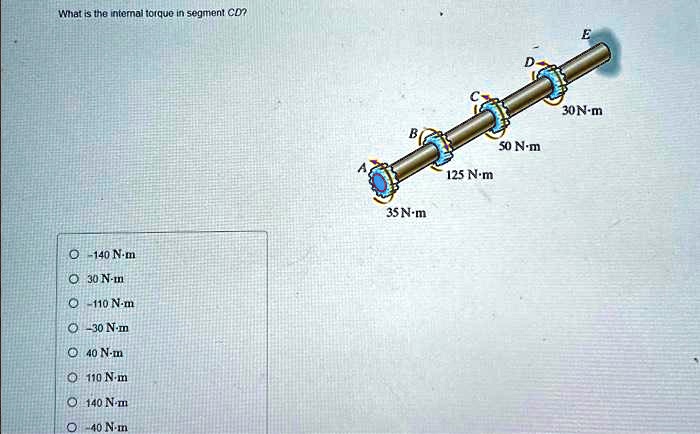

What is the internal torque in segment CD? -140 N-m 30 N-m -110 N-m -30 N-m 40 N-m 110 N-m 140 N-m -40 N-m A E D C 30 N-m B 50 N-m 125 N-m 35 N-m

          What is the internal torque in segment CD?

-140 N-m
30 N-m
-110 N-m
-30 N-m
40 N-m
110 N-m
140 N-m
-40 N-m
A
E
D
C
30 N-m
B
50 N-m
125 N-m
35 N-m

Added by Heidi S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Suman K

05/29/2022

Step 1

Segment CD is in equilibrium, so the sum of the torques acting on it must be zero. The only torque acting on segment CD is the internal torque. Show more…
