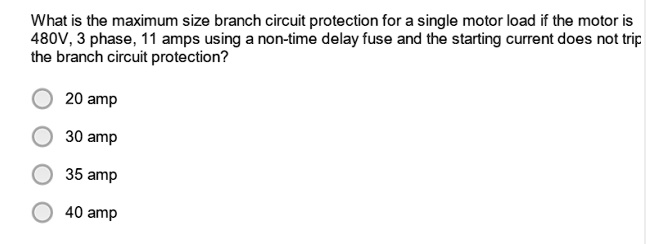

What is the maximum size branch circuit protection for a single motor load if the motor is 480V, 3 phase, 11 amps using a non-time delay fuse and the starting current does not trip the branch circuit protection? 20 amp 30 amp 35 amp 40 amp
Added by Alfonso D.
Close
Step 1
In this case, the full load current is given as 11 amps. Show more…
Show all steps
Your feedback will help us improve your experience
Lien Le and 53 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

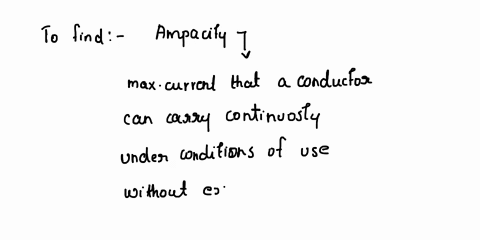

The branch circuit conductor for a 3/4 hp, single phase, 115v motor would require a minimum ampacity of - 8.6 amps. The full-load current of a three-phase, 20 hp induction motor on 208v is ____ amps - 54 amps. The motor running overload protection for a single-phase, 3 hp motor would be _____ amps on 115 volts - 39.1 amps. The branch circuit overcurrent protection is _____% of the full-load current for a DC motor using dual element fuses - 300%. Size the feeder conductor for a 3 hp, single-phase, 208v motor and two 2 hp, single-phase, 208v motors. Use 60^0C insulation - #8. Size the feeder protection using an inverse time breaker for three 5 hp, single-phase, 230v motors. Each motor has a 70 amp CB for branch circuit protection - 110 amp CB.
Adi S.
Supreeta N.

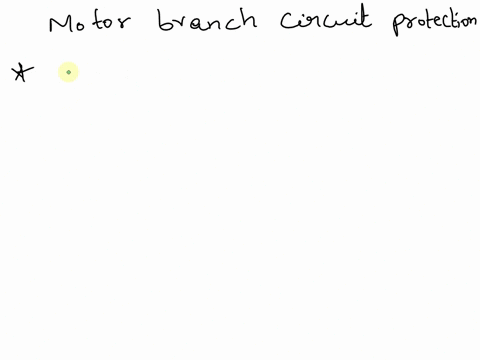

What information is needed to select the correct size motor branch circuit protection?
