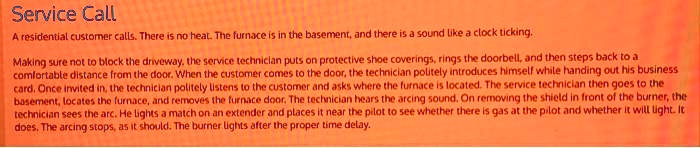

Service Call A residential customer calls. There is no heat. The furnace is in the basement, and there is a sound like a clock ticking. Making sure not to block the driveway, the service technician puts on protective shoe coverings, rings the doorbell, and then steps back to a comfortable distance from the door. When the customer comes to the door, the technician politely introduces himself while handing out his business card. Once invited in, the technician politely listens to the customer and asks where the furnace is located. The service technician then goes to the basement, locates the furnace, and removes the furnace door. The technician hears the arcing sound. On removing the shield in front of the burner, the technician sees the arc. He lights a match on an extender and places it near the pilot to see whether there is gas at the pilot and whether it will light. It does. The arcing stops, as it should. The burner lights after the proper time delay.
Added by Brianna B.
Close
Step 1
Problem: The residential customer has no heat, and there is a ticking sound coming from the furnace in the basement. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 53 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A commercial customer reports that an air-conditioning unit in a small office building is not cooling on the first warm day. The technician first goes to the thermostat and finds that it is set at 75 degrees Fahrenheit, and the space temperature is 82 degrees Fahrenheit. The air feels humid. No air is coming from the registers. The air handler is in the attic. An examination of the condensing unit shows that the suction line has ice all the way back to the compressor. The compressor is still running. What is the likely problem and the recommended solution?
Madhur L.

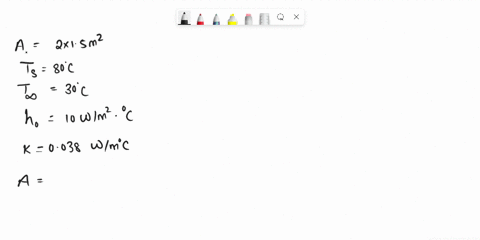

A 2m × 1.5m section of wall of an industrial furnace burning natural gas is not insulated, and the temperature at the outer surface of this section is measured to be 80°C. The temperature of the furnace room is 30°C, and the combined convection and radiation heat transfer coefficient at the surface of the outer furnace is 10 W/m²·K. It is proposed to insulate this section of the furnace wall with glass wool insulation (k = 0.038 W/m·K) in order to reduce the heat loss by 90 percent. Assuming the outer surface temperature of the metal section still remains at about 110°C, determine the thickness of the insulation that needs to be used. The furnace operates continuously and has an efficiency of 78 percent. The price of the natural gas is $1.10/therm (1 therm = 105,500 kJ of energy content). If the installation of the insulation will cost $250 for materials and labor, determine how long it will take for the insulation to pay for itself from the energy it saves.
Adi S.

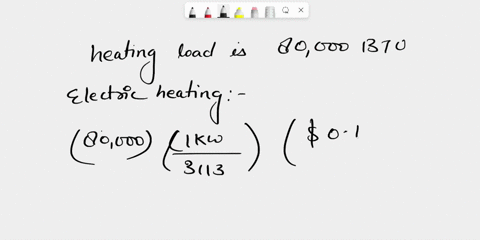

A homeowner in Chicago has determined he wants to install a heat pump after watching a Sierra Club special on Channel 11 where they explained how energy efficient heat pumps were in a house in California that is located close to L.A. Using the above graph with its 80,000 btu design heat loss, and 3 ton heat pump unit, select a back up furnace to heat the house when the heat pump can't do it any longer, and select what the backup heat form will be ......gas, or electric Hint: To determine the least expensive form of heat, simply take the heat content of the energy source (3113 btu per Kw for electric, 100,000 btu per therm for gas) and divide it into the cost per unit of energy ($.14 for Kw electricity and $.50 per therm of gas). The resulting numbers will be quite small (your calculating $ per BTU after all) and just simply take the least expensive. Show your work below, and turn in to your instructor for credit. How big of a back up furnace will you install? At what temperature will you disable the heat pump and simply run back up heat? What fuel source will you use for back up heta?
