What is the THD of the following waveform generated by a certain converter? Assume that the dc component is removed by filtering. $0,4 \times T$ $V_0$ 0 T
Added by Mercedes B.
Close
Step 1
4T$ and period $T$. The amplitude is $V_0$. The DC component is removed. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 86 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Calculate the THD of the following waveform generated by a certain power regulator connected to an AC source. In this waveform ̑ = 90º.
Madhur L.
The voltage from a square wave generator is of the form: v(t) = {0, -4 < t < 0; 10, 0 < t < 4 And has a period of 8 seconds. Find the Fourier Series for this periodic function.

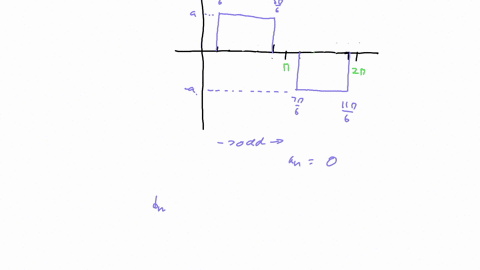

Example: Calculate the rms value and the THD for the following quasi-square waveform. USE Fourier series and Fourier coefficients with even and odd symmetry to get the solution below. ANSWER: a0 = 0 ; an = 0 b_n = { (4a)/(nπ) [cos(nπ/6)] for n = 1,3,5,7,9,... 0 for n = 2,4,6,8,... } = (2√3 a)/(nπ) * { 1 for n = 1,11,13,... -1 for n = 5,7,17,19,... 0 otherwise }
