To Power Source 1 µF 5 ?H 0.1 µF 5k ? To EUT To 50 ? Termination Or 50? Input Of Measurement Receiver Signal Output Port
Added by Juan Antonio S.
Close
Step 1
Step 1: Calculate the total impedance of the LISN at 20 MHz by adding the impedances in series. Show more…
Show all steps
Your feedback will help us improve your experience
João Gabriel Alencar Caribé and 66 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
$\cdot$ Loudspeaker Impedance A loudspeaker's impedance is listed as 8.0$\Omega$ at 2.0 kHz. Assuming its resistance and capacitance are negligibly small, what is the inductance of the speaker coil?
Find the impedance at $10 \mathrm{kHz}$ of a circuit consisting of a $1.5-\mathrm{k} \Omega$ resistor, 5.0 - $\mu$ F capacitor, and 50 -mH inductor in series.

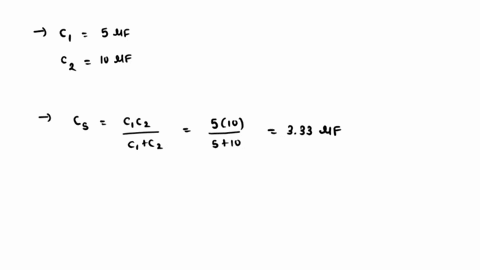

What is the impedance of a series combination of a 50-Ω resistor, a 5.0-μF capacitor, and a 10-μF capacitor at a frequency of 2.0 kHz?
