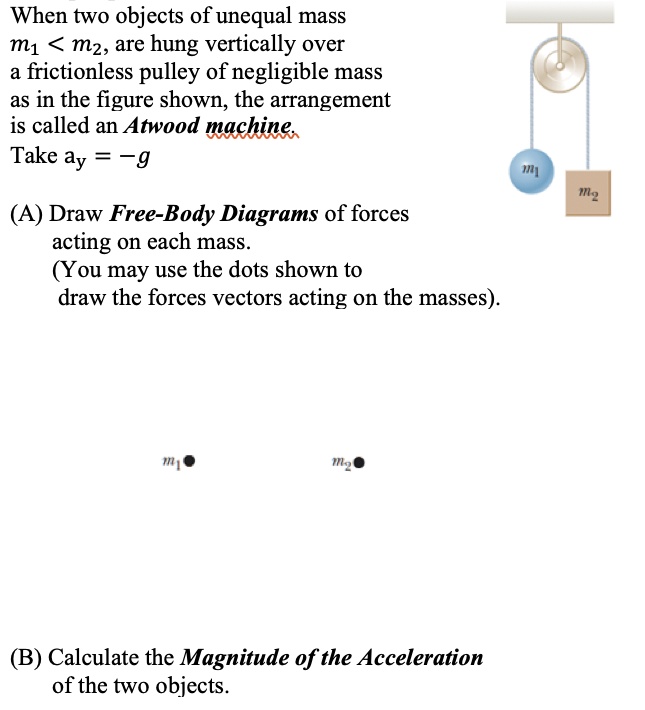

When two objects of unequal mass m1 < m2, are hung vertically over a frictionless pulley of negligible mass as in the figure shown, the arrangement is called an Atwood machine. Take ay = -g (A) Draw Free-Body Diagrams of forces acting on each mass. (You may use the dots shown to draw the forces vectors acting on the masses). m1 m2 (B) Calculate the Magnitude of the Acceleration of the two objects.
Added by Pilar H.
Close
Step 1
Step 1: Write the Newton's equations for the forces acting on each mass: For mass M1: - Tension (T) is acting upwards - Weight (M1 * g) is acting downwards - Net force = M1 * a (where a is the acceleration) For mass M2: - Tension (T) is acting downwards - Weight Show more…
Show all steps
Your feedback will help us improve your experience
Sahil Kumar and 50 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
In Atwood's machine, two masses $m_{1}$ and $m_{2}$ hang vertically, connected over a frictionless pulley, as in Figure P4.62. Assume $m_{2}>m_{1}$. (a) Draw force diagrams for both masses. (b) Find the magnitude of the masses' acceleration, in terms of $m_{1}, m_{2},$ and $g$. (c) Evaluate the acceleration numerically if $m_{1}=0.150 \mathrm{~kg}$ and $m_{2}=0.200 \mathrm{~kg}$.

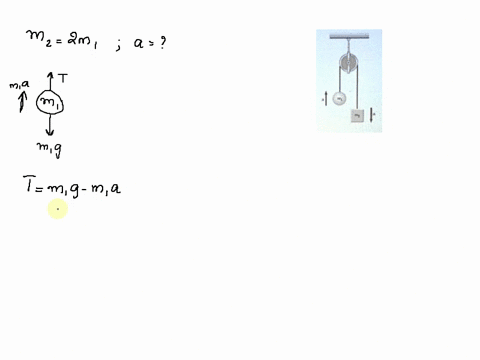

Two objects of unequal masses are hung vertically over a frictionless pulley of negligible mass, as shown in the Figure. The arrangement is called Atwood's Machine. If m2 = 2m1 then the magnitude of the acceleration of the two objects equals a) (m2 - m1)g/(2m2 + m1) b) 2(m2 - m1)g/(m2 + m1) c) g/2 d) g/3 Select one:
Madhu K.
An object of mass $m_{1}=5.00 \mathrm{kg}$ placed on a frictionless, horizontal table is connected to a string that passes over a pulley and then is fastened to a hanging object of mass $m_{2}=9.00 \mathrm{kg}$ as shown in Figure P. 28 . (a) Draw free-body diagrams of both objects. Find (b) the magnitude of the acceleration of the objects and (c) the tension in the string.
