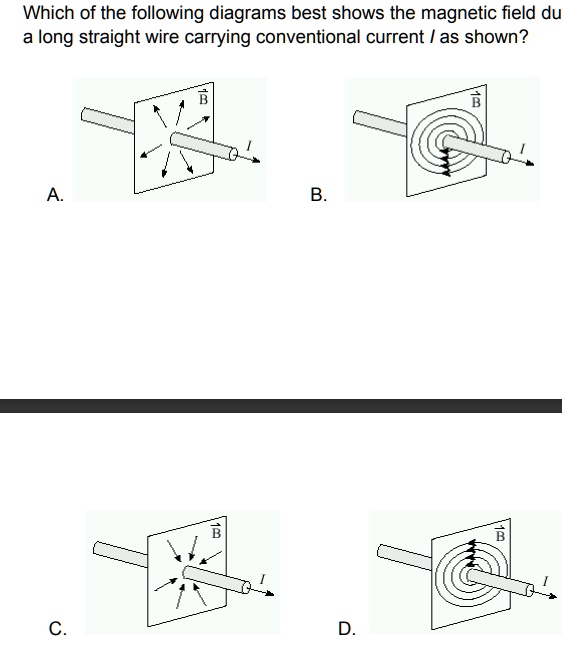

Which of the following diagrams best shows the magnetic field due to a long straight wire carrying conventional current I as shown? A. B. C. D.
Added by Edward C.
Close
Step 1
We need to determine which diagram correctly represents the magnetic field around a long straight wire that is carrying a conventional current. The conventional current is shown flowing from the positive to the negative terminal, which is the direction that Show more…
Show all steps
Your feedback will help us improve your experience
Urvashi Arora and 65 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

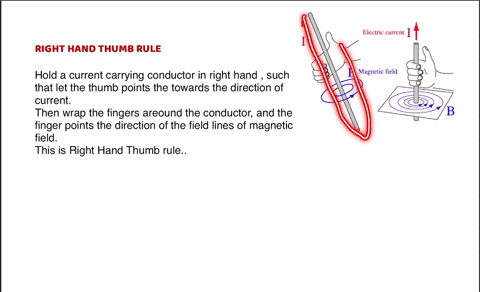

A wire carries a current out of the page. Which diagram below correctly describes the magnetic field of the wire?
Which diagram best represents the magnetic field near the poles of a horseshoe magnet?

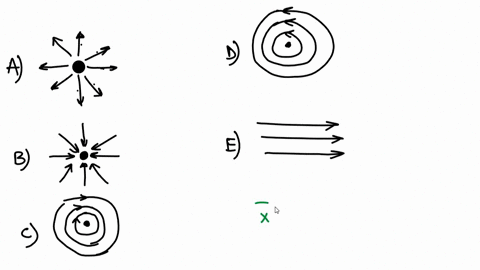

Questions $4-6$ refer to the following field diagrams. Which diagram correctly depicts the magnetic field of a wire carrying a current into and perpendicular to the page?
