In this question, we need to choose the correct statement related to steady horizontal flow from the given four options.
00:10
Option a is given as the pressure is greatest where the speed is leased.
00:17
Option b is the pressure is independent of speed.
00:22
Option c is the pressure is least where the speed is least.
00:27
Option d is a and c are correct.
00:31

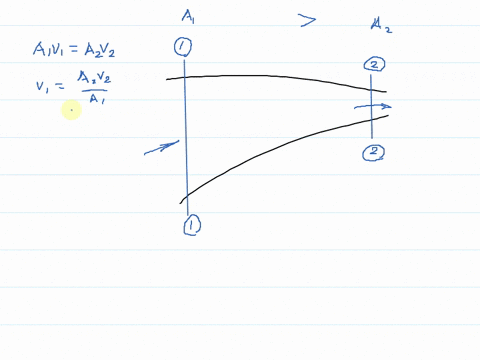

For this, what we do, we will consider a two -dimensional pipe whose cross -section changes from a1 to a2.
00:43
Let us consider this is section 1 and this one is the section 2.
00:56
From this figure itself, it is very clear that the cross -sectional area, a1, is greater than a2.
01:08
A1 is greater than a2.
01:12
Consider some liquid is flowing through this varying cross -section pipe.
01:22
Let us apply the continuity equation.
01:26
A1, v1 is equal to a2 v2 for the incompressible fluid.
01:36
So from this we can write v1 is equal to a2 v2 by a1.
01:46
From this you can find that the cross -sectional area is small, that is the a2 is small and a1 is bigger.
01:58
Therefore this right -hand -side quantity will be less than the left -hand side.
02:06
Therefore we can say that b1 is less than b2.
02:14
Okay, let it be.
02:23
Now, you will apply the bernoulli's equation between the section 1 and 2...
