00:01
In this question we are talking about a compound name acetamide for which we can draw the structure to the compound as we have one methyl group which is linked to c double bond o then we have nh2, two hydrogens linked to single nitrogen.
00:30

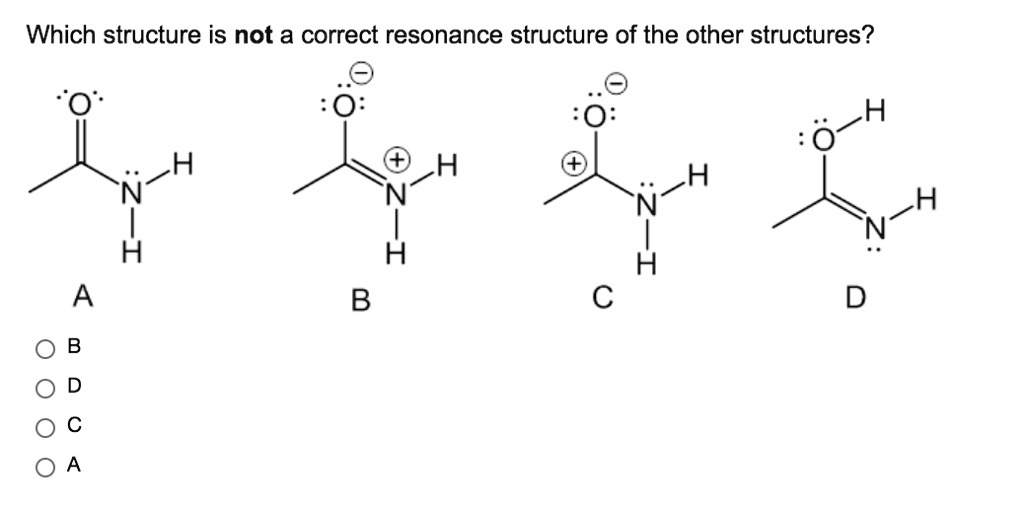

We are asked to draw the resonance or the resonating structure for this acetamide compound.
00:41
So it can be drawn as we have a ch3 group over here to which double bond o is attached and onto the right side we have nitrogen with two hydrogens attached to it.
00:56
Nitrogen as we know has a lone pair of electrons and oxygen because it is doubly bonded to carbon, it possess two lone pairs.
01:05
Otherwise, when it is linked with a single bond, then in that case it possess three pairs of lone pair electrons.
01:12
Then this bond will shift over here as a result of resonance and here it will shift over here and we can draw it another resonating structure as th3 on the left, single bond o, oxygen with three lone tail of electrons and one negative charge, then it is linked with a double bond to nitrogen.
01:43
This is a double bond to which nitrogen is linked with a positive charge and there are two hydrogen...
