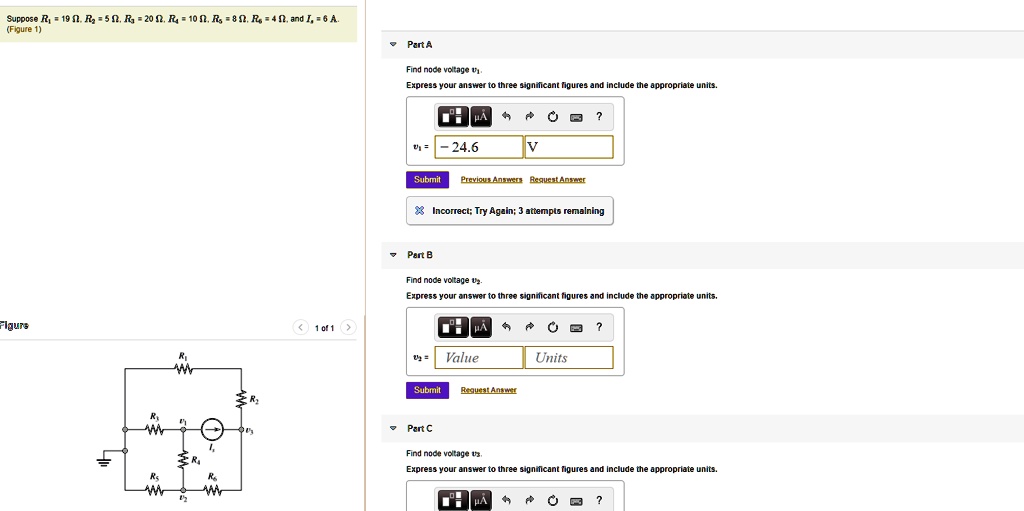

Suppose $R_1 = 19 \Omega$, $R_2 = 5 \Omega$, $R_3 = 20 \Omega$, $R_4 = 10 \Omega$, $R_5 = 8 \Omega$, $R_6 = 4 \Omega$, and $I_s = 6 A$. (Figure 1) Part A Find node voltage $v_1$. Express your answer to three significant figures and include the appropriate units. $v_1 = -24.6 V$ Part B Find node voltage $v_2$. Express your answer to three significant figures and include the appropriate units. $v_2 = $ Part C Find node voltage $v_3$. Express your answer to three significant figures and include the appropriate units.

          Suppose $R_1 = 19 \Omega$, $R_2 = 5 \Omega$, $R_3 = 20 \Omega$, $R_4 = 10 \Omega$, $R_5 = 8 \Omega$, $R_6 = 4 \Omega$, and $I_s = 6 A$.
(Figure 1)
Part A
Find node voltage $v_1$.
Express your answer to three significant figures and include the appropriate units.
$v_1 = -24.6 V$
Part B
Find node voltage $v_2$.
Express your answer to three significant figures and include the appropriate units.
$v_2 = $
Part C
Find node voltage $v_3$.
Express your answer to three significant figures and include the appropriate units.

Suppose R1 = 19 Ω, R2 = 5 Ω, R3 = 20 Ω, R4 = 10 Ω, R5 = 8 Ω, R6 = 4 Ω, and Is = 6 A.
(Figure 1)
Part A
Find node voltage v1.
Express your answer to three significant figures and include the appropriate units.
v1 = -24.6 V
Part B
Find node voltage v2.
Express your answer to three significant figures and include the appropriate units.
v2 =
Part C
Find node voltage v3.
Express your answer to three significant figures and include the appropriate units.
