Two parallel conducting rails in a horizontal plane are separated by a distance 0.188 m, and are connected by a resistor R=82.08?. They are in a region of spatially-uniform magnetic field that points into the page as shown in the figure. A conducting bar in electrical contact with the rails is being pulled away from the resistor at constant speed v=24.75m/s by an external agent. If the induced current is 0.046A, what is the magnitude of the magnetic field B? 0.852023210831722 T 0.811450676982592 T 0.933168278529981 T 0.97374081237911 T 0.608588007736944 T
Added by Mitchell A.
Close
Step 1
188 \, \text{m} \) - Resistor, \( R = 82.0822 \, \Omega \) - Speed of the bar, \( v = 24.75 \, \text{m/s} \) - Induced current, \( I = 0.0464 \, \text{A} \) Show more…
Show all steps
Your feedback will help us improve your experience
Suman K and 78 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

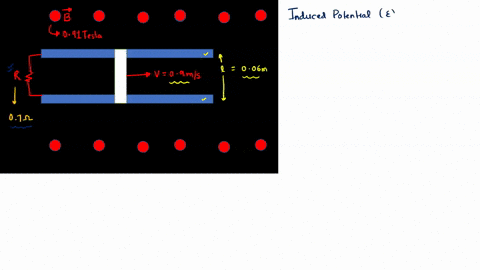

Two parallel, conducting rails in a horizontal plane (in the page) are separated by a distance 0.06 m. The rails are connected by a resistor with resistance R = 0.7 Ω Bext R Insulating Material The rails and resistor are in a region containing spatially uniform magnetic field that points out of the page as shown in the figure: conducting bar, with negligible resistance, is in electrical contact with the rails. You push it away from the resistor at constant speed v = 0.9 m/s If the external magnetic field is 0.91 T, what is the induced current I? (a) I = 5.67 x 10^-02 A (b) I = 1.40 x 10^-01 A (c) I = 7.02 x 10^-02 A (d) I = 3.78 x 10^-03 A
Gaurav P.

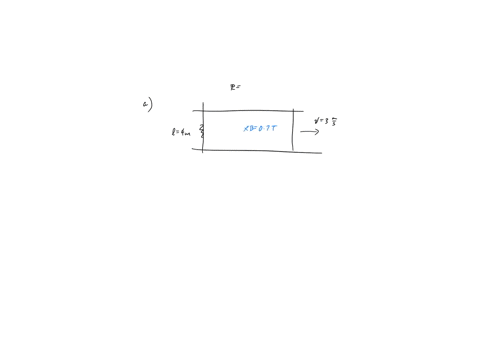

A pair of rails is connected by two mobile rods. A uniform magnetic field B directed into the plane is present. In the situations (a), (b), (c), one or both rods move at a constant velocity as shown. The resistance of the conducting loop is R = 0.2Ω in each case. Find the magnitude of the induced current and the direction (CW/CCW) of the induced current in each case: a) I = 8.4A, CCW b) I = 112A, CCW a) I = 168A CW b) I = 224A CW a) I = 14A, CW b) I = 124A, CW a) I = 42A, CCW b) I = 112A, CCW
Timothy J.

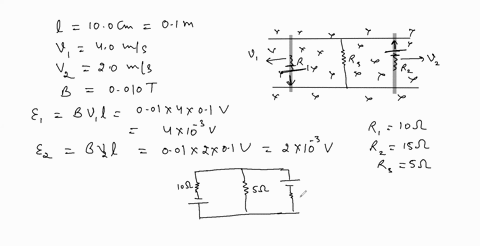

Two parallel rails with negligible resistance are $10.0 \mathrm{~cm}$ apart and are connected by a $5.00-\Omega$ resistor. The circuit also contains two metal rods having resistances of $10.0 \Omega$ and $15.0 \Omega$ sliding along the rails (Fig. P31.31). The rods are pulled away from the resistor at constant speeds $4.00 \mathrm{~m} / \mathrm{s}$ and $2.00 \mathrm{~m} / \mathrm{s}$, respectively. A uniform magnetic field of magnitude $0.0100 \mathrm{~T}$ is applied perpendicular to the plane of the rails. Determine the current in the $5.00-\Omega$ resistor.
