You are allowed to use the Matlab scripts for
this problem

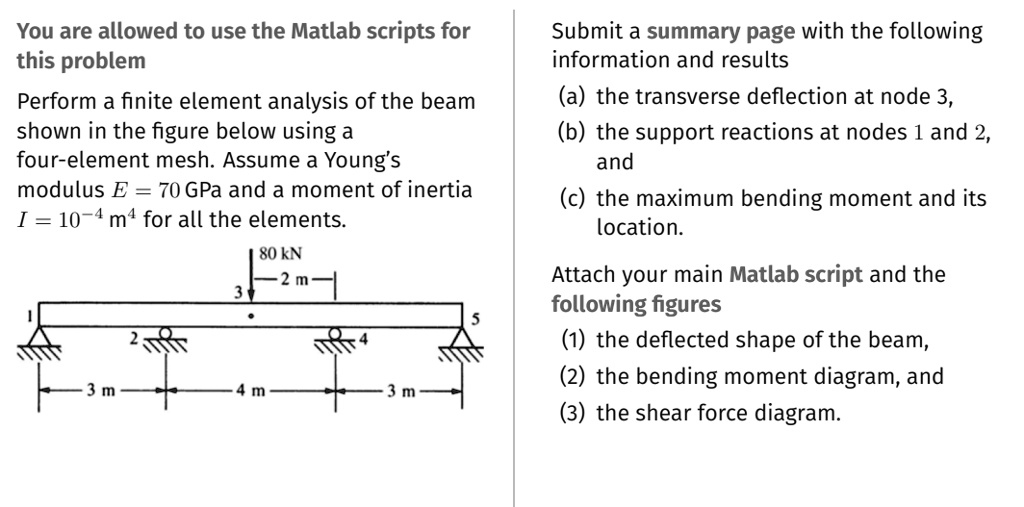

Perform a finite element analysis of the beam
shown in the figure below using a
four-element mesh. Assume a Young's
modulus E=70GPa and a moment of inertia
I=10^(-4)m^(4) for all the elements.
Submit a summary page with the following
information and results
(a) the transverse deflection at node 3,
(b) the support reactions at nodes 1 and 2,
and
(c) the maximum bending moment and its
location.
Attach your main Matlab script and the
following figures
(1) the deflected shape of the beam,
(2) the bending moment diagram, and
(3) the shear force diagram.
You are allowed to use the Matlab scripts for
Submit a summary page with the following information and results
this problem
Perform a finite element analysis of the beam shown in the figure below using a four-element mesh. Assume a Young's modulus E= 70GPa and a moment of inertia I = 10-4 m4 for all the elements. J 8O kN 2m 3
(a) the transverse deflection at node 3, (b) the support reactions at nodes 1 and 2, and (c) the maximum bending moment and its location.
Attach vour main Matlab script and the
following figures (1) the deflected shape of the beam,
(2) the bending moment diagram, and (3) the shear force diagram
