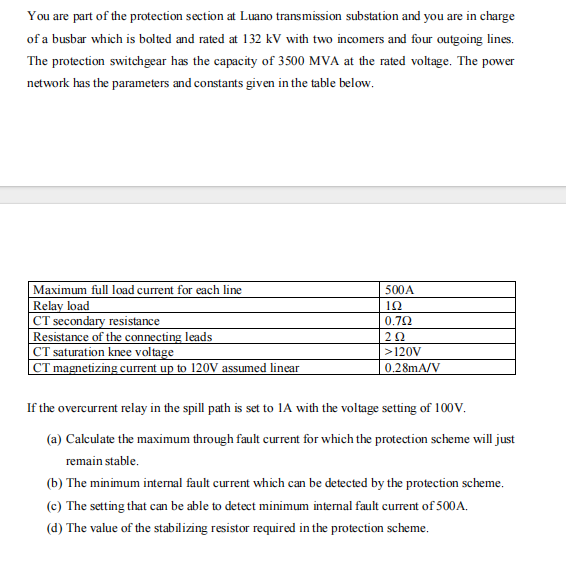

You are part of the protection section at Luano transmission substation and you are in charge of a busbar which is bolted and rated at 132 kV with two incomers and four outgoing lines. The protection switchgear has the capacity of 3500 MVA at the rated voltage. The power network has the parameters and constants given in the table below. egin{tabular}{|l|l|} hline Maximum full load current for each line & 500A \ hline Relay load & ( 1 Omega ) \ hline CT secondary resistance & ( 0.7 Omega ) \ hline Resistance of the connecting leads & ( 2 Omega ) \ hline CT saturation knee voltage & ( >120 mathrm{~V} ) \ hline CT magnetizing current up to 120 V assumed linear & ( 0.28 mathrm{~mA} / mathrm{V} ) \ hline end{tabular} If the overcurrent relay in the spill path is set to 1 A with the voltage setting of 100 V . (a) Calculate the maximum through fault current for which the protection scheme will just remain stable. (b) The minimum internal fault current which can be detected by the protection scheme. (c) The setting that can be able to detect minimum internal fault current of 500 A . (d) The value of the stabilizing resistor required in the protection scheme.
Added by Daniel M.
Close
Step 1
- Total resistance \( R_t = \text{Relay load} + \text{CT secondary resistance} + \text{Resistance of connecting leads} \) - \( R_t = 1 \, \Omega + 0.7 \, \Omega + 2 \, \Omega = 3.7 \, \Omega \) Show more…
Show all steps
Your feedback will help us improve your experience
Tavis Lam and 80 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

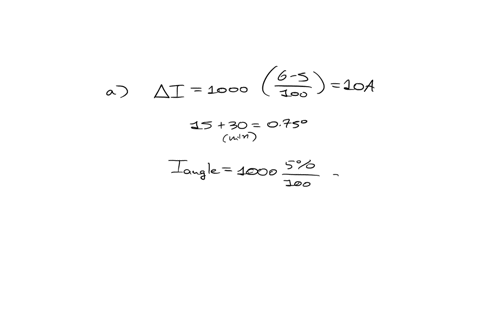

a) The ratings of CT1 and CT2 in a differential protection scheme have a nominal ratio of 100/1. The CT error for a 'through fault' current of 1000 A are as follows | | CT1 | CT2 | |---|---|---| | Ratio error | 5% | 6% | | Phase angle error | 30min | -15 min | Determine the pickup setting of the OC relay remain stable. b) A 10MVA 0.415kV/33 kV star-delta power transformer need to be protected by a biased differential protection system shown in Figure Q3 (b). If the restraint coil of the relay is rated at 5 ampere, calculate the ratios of the current transformer (CT) on both sides of the transformer. (CT ratios available: 100/5A, 150/5A, 300/5A, 600/5A, 800/5A, 900/5A, 1000/5A, 15,000/5A, 20,000/5A, 25,000/5A, 30,000/5A) Figure Q3 (b): 3 Phase Differential Protection
Andreas P.

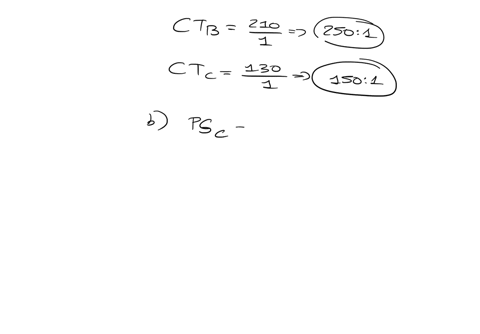

Consider a radial system with three relay points A, B and C. With point A being on the supply side. The maximum load currents at the three relay points are 360A, 210A and 130A respectively. The relay curve is standard IDMT and the relay time multiplier ranges from 0.1 to 1.2 in steps of 0.01. The relay plug setting range is from 50% to 200% in steps of 5%. a) Suggest suitable CT ratios for A, B and C. b) Suggest suitable plug settings for the relays at A, B and C. c) Determine the TMSs for the relays to satisfy graded operation for a fault at C, given that the fault current at C is 7.5kA. Allow discriminative time between relays of 300ms
