Fundamentals of Electric Circuits

Charles K. Alexander, Matthew N.O. Sadiku

Chapter 1

Basic Concepts - all with Video Answers

Educators

Chapter Questions

Problem 1

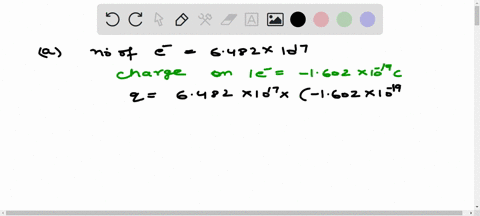

How many coulombs are represented by these amounts of electrons:
(a) $6.482 \times 10^{17}$
(b) $1.24 \times 10^{18}$
(c) $2.46 \times 10^{19}$
(d) $1.628 \times 10^{20}$

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 2

Find the current flowing through an element if the charge flow is given by:
(a) $q(t)=(t+2) \mathrm{mC}$
(b) $q(t)=\left(5 t^{2}+4 t-3\right) \mathrm{C}$
(c) $q(t)=10 e^{-4 t} \mathrm{pC}$
(d) $q(t)=20 \cos 50 \pi t \mathrm{nC}$
(e) $q(t)=5 e^{-2 t} \sin 100 t \mu \mathrm{C}$

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 3

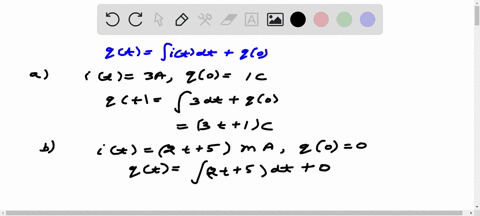

Find the charge $q(t)$ flowing through a device if the current is:
(a) $i(t)=3 \mathrm{A}, q(0)=1 \mathrm{C}$
(b) $i(t)=(2 t+5) \mathrm{mA}, q(0)=0$
(c) $i(t)=20 \cos (10 t+\pi / 6) \mu \mathrm{A}, q(0)=2 \mu \mathrm{C}$
(d) $i(t)=10 e^{-30 t} \sin 40 t$ A, $q(0)=0$

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 4

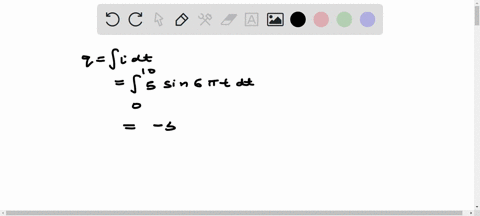

The current flowing through a device is $i(t)=5 \sin 6 \pi t$ A. Calculate the total charge flow through the device from $t=0$ to $t=10 \mathrm{ms}$

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 5

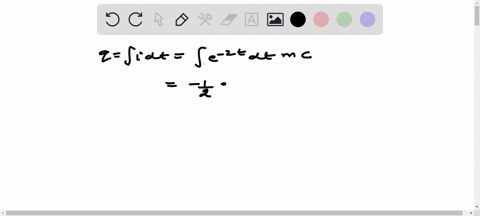

Determine the total charge flowing into an element for $0<t<2$ s when the current entering its positive terminal is $i(t)=e^{-2 t} \mathrm{mA}$

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 6

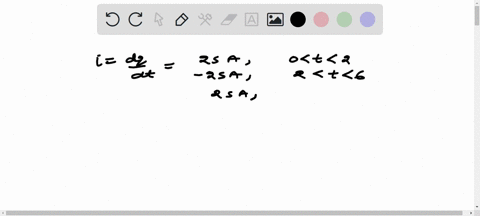

The charge entering a certain element is shown in Fig. $1.20 .$ Find the current at:
(a) $t=1 \mathrm{ms}$
(b) $t=6 \mathrm{ms}$
(c) $t=10 \mathrm{ms}$

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 7

The charge flowing in a wire is plotted in Fig. 1.21 Sketch the corresponding current.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 8

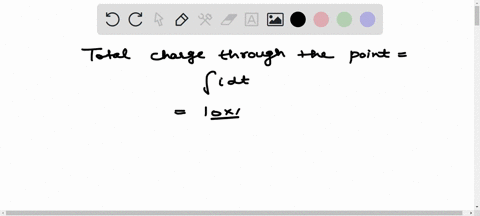

The current flowing past a point in a device is shown in Fig. $1.22 .$ Calculate the total charge through the point.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 9

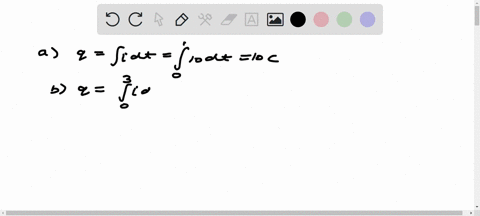

The current through an element is shown in Fig. 1.23. Determine the total charge that passed through the element at:
(a) $t=1 \mathrm{s}$
(b) $t=3 \mathrm{s}$
(c) $t=5 \mathrm{s}$

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 10

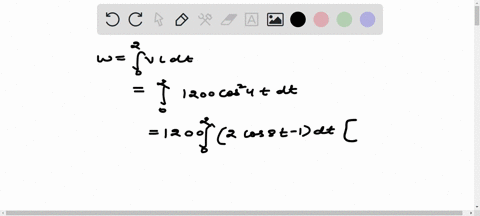

A certain electrical element draws the current $i(t)=10 \cos 4 t \mathrm{A}$ at a voltage $v(t)=120 \cos 4 t \mathrm{V}$ Find the energy absorbed by the element in 2 s.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 11

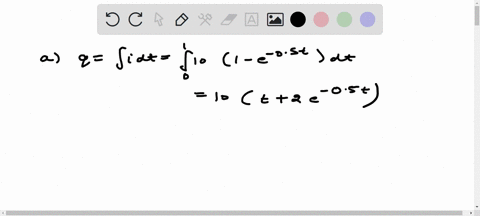

The voltage $v$ across a device and the current $i$ through it are
\[v(t)=5 \cos 2 t \mathrm{V}, \quad i(t)=10\left(1-e^{-0.5 t}\right) \mathrm{A}\]
Calculate:
(a) the total charge in the device at $t=1$ s
(b) the power consumed by the device at $t=1$ s.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 12

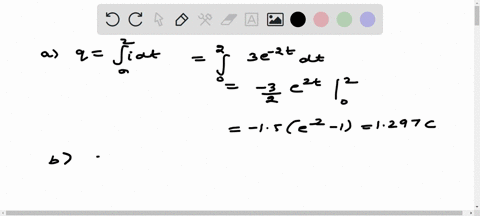

The current entering the positive terminal of a device is $i(t)=3 e^{-2 t}$ A and the voltage across the device is $v(t)=5 d i / d t$ V.
(a) Find the charge delivered to the device between $t=0$ and $t=2 \mathrm{s}$
(b) Calculate the power absorbed.
(c) Determine the energy absorbed in 3 s.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 13

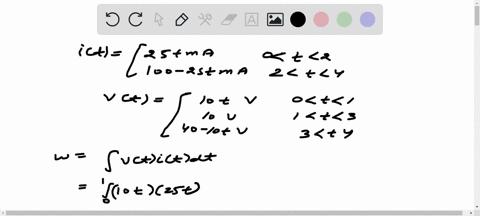

Figure 1.24 shows the current through and the voltage across a device. Find the total energy absorbed by the device for the period of $0<t<4$ s.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 14

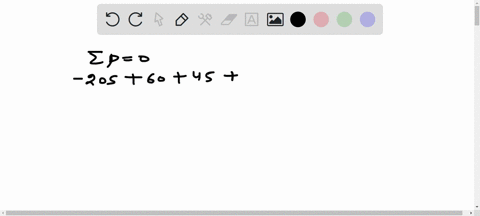

Figure 1.25 shows a circuit with five elements. If $p_{1}=-205 \mathrm{W}, p_{2}=60 \mathrm{W}, p_{4}=45 \mathrm{W}, p_{5}=30 \mathrm{W}$
calculate the power $p_{3}$ received or delivered by element 3

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 15

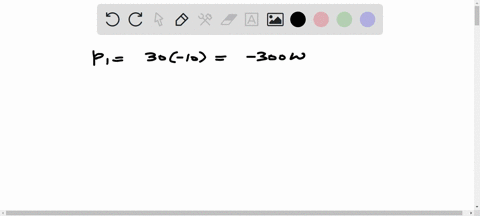

Find the power absorbed by each of the elements in Fig. 1.26

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 16

Determine $I_{o}$ in the circuit of Fig. 1.27

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 17

Find $V_{o}$ in the circuit of Fig. 1.28

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 18

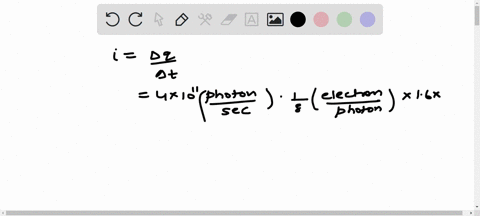

It takes eight photons to strike the surface of a photodetector in order to emit one electron. If $4 \times 10^{11}$ photons/second strike the surface of the photodetector, calculate the amount of current flow.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 19

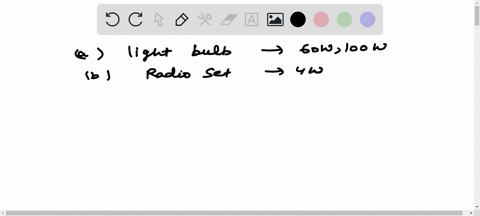

Find the power rating of the following electrical appliances in your household:
(a) Lightbulb
(b) Radio set
(c) TV set
(d) Refrigerator
(e) Personal computer
(f) PC printer
(g) Microwave oven
(h) Blender

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 20

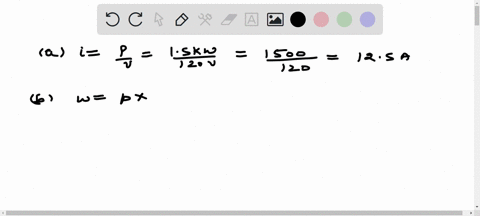

A $1.5-\mathrm{kW}$ electric heater is connected to a $120-\mathrm{V}$
source.
(a) How much current does the heater draw?
(b) If the heater is on for 45 minutes, how much energy is consumed in kilowatt-hours (kWh)?
(c) Calculate the cost of operating the heater for 45 minutes if energy costs 10 cents/kWh.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 21

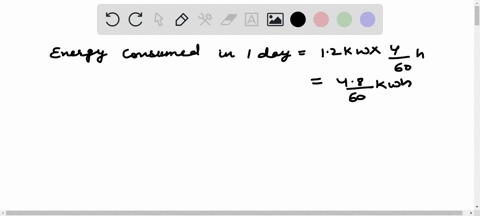

A $1.2-\mathrm{kW}$ toaster takes roughly 4 minutes to heat four slices of bread. Find the cost of operating the toaster once per day for 1 month $(30$ days). Assume energy costs 9 cents/kWh.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 22

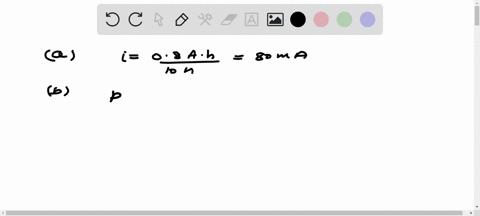

A flashlight battery has a rating of 0.8 ampere-hours
(Ah) and a lifetime of 10 hours.
(a) How much current can it deliver?
(b) How much power can it give if its terminal voltage is $6 \mathrm{V} ?$
(c) How much energy is stored in the battery in kWh?

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 23

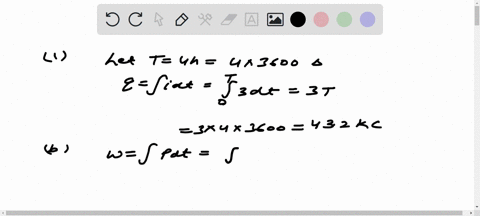

A constant current of 3 A for 4 hours is required to charge an automotive battery. If the terminal voltage is $10+t / 2 \mathrm{V}$, where $t$ is in hours,
(a) how much charge is transported as a result of the charging?
(b) how much energy is expended?
(c) how much does the charging cost? Assume electricity costs 9 cents/kWh.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 24

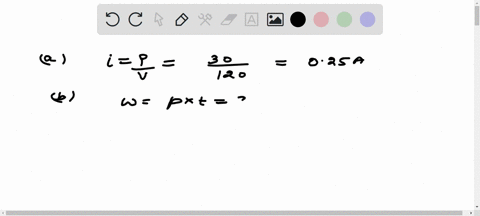

A $30-\mathrm{W}$ incandescent lamp is connected to a $120-\mathrm{V}$ source and is left burning continuously in an otherwise dark staircase. Determine:
(a) the current through the lamp,
(b) the cost of operating the light for one non-leap year if electricity costs 12 cents per $\mathrm{kWh}$.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 25

An electric stove with four burners and an oven is used in preparing a meal as follows.
Burner 1: 20 minutes $\quad$ Burner 2: 40 minutes
Burner 3: 15 minutes Burner 4: 45 minutes
Oven: 30 minutes If each burner is rated at $1.2 \mathrm{kW}$ and the oven at $1.8 \mathrm{kW},$ and electricity costs 12 cents per $\mathrm{kWh}$ calculate the cost of electricity used in preparing the meal.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 26

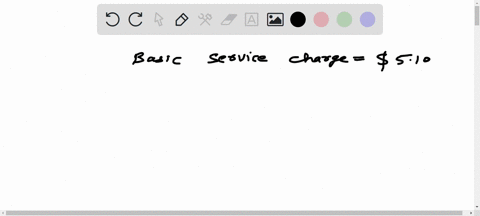

PECO (the electric power company in Philadelphia) charged a consumer $\$ 34.24$ one month for using $215 \mathrm{kWh}$. If the basic service charge is $\$ 5.10$, how much did PECO charge per kWh?

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 27

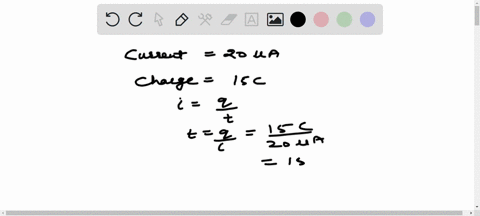

A telephone wire has a current of $20 \mu$ A flowing through it. How long does it take for a charge of $15 \mathrm{C}$ to pass through the wire?

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 28

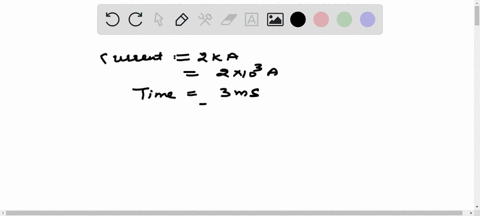

A lightning bolt carried a current of $2 \mathrm{kA}$ and lasted for $3 \mathrm{ms}$. How many coulombs of charge were contained in the lightning bolt?

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 29

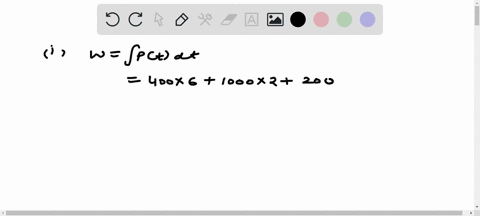

The power consumption for a certain household for a day is shown in Fig. $1.29 .$ Determine:
(a) the total energy consumed in $\mathrm{kWh}$
(b) the average power per hour.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 30

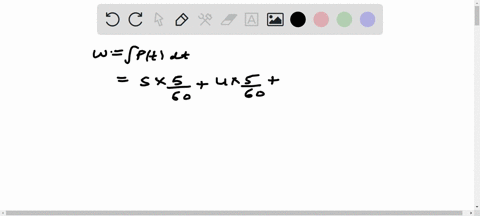

The graph in Fig. 1.30 represents the power drawn by an industrial plant between 8: 00 and 8: 30 A.M.
Calculate the total energy in MWh consumed by the plant.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 31

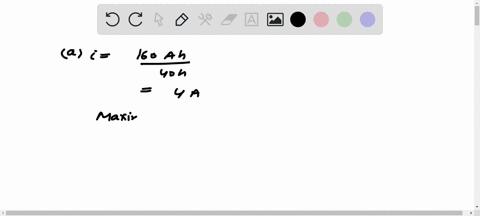

A battery may be rated in ampere-hours (Ah). An lead-acid battery is rated at 160 Ah.
(a) What is the maximum current it can supply for $40 \mathrm{h} ?$
(b) How many days will it last if it is discharged at $1 \mathrm{mA} ?$

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 32

How much work is done by a $12-\mathrm{V}$ automobile battery in moving $5 \times 10^{20}$ electrons from the positive terminal to the negative terminal?

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 33

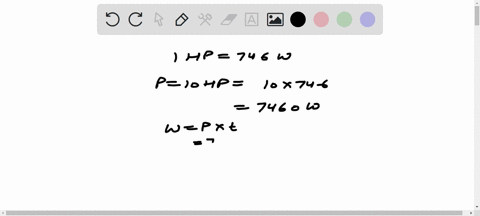

How much energy does a 10 -hp motor deliver in 30 minutes? Assume that 1 horsepower $=746 \mathrm{W}$

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator

Problem 34

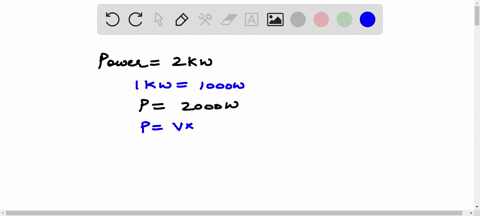

A $2-\mathrm{kW}$ electric iron is connected to a $120-\mathrm{V}$ line. Calculate the current drawn by the iron.

Varsha Aggarwal

Varsha Aggarwal

Numerade Educator
