Sears and Zemansky’s University Physics with Modern Physics

Hugh D Young, Roger A Freedman, Ragbir Bhathal

Chapter 26

Direct-Current curcuits - all with Video Answers

Educators


Chapter Questions

03:13

Problem 1

A uniform wire of resistance $R$ is cut into three equal lengths. One of these is formed into a circle and connected between the other two (Fig. 26.28). What is the resistance between the opposite ends $a$ and $b$ ?
( FIGURE CAN'T COPY )

Vishal Gupta
Vishal Gupta
Numerade Educator
00:43

Problem 2

A machine part has a resistor $X$ protruding from an opening in the side. This resistor is connected to three other resistors, as shown in Fig. 26.29. An ohmmeter connected across $a$ and $b$ reads $2.00 \Omega$. What is the resistance of $X$ ?
( FIGURE CAN'T COPY )

Jilin Wang
Jilin Wang
Boston University
03:48

Problem 3

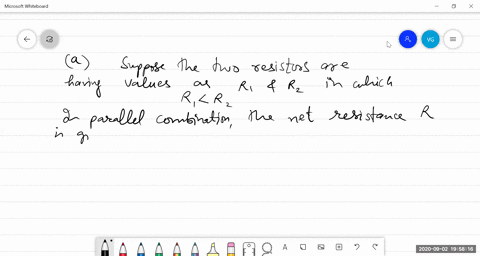

(a) Prove that when two resistors are connected in parallel, the equivalent resistance of the combination is always smaller than
that of the smaller resistor. (b) Generalise your result from part (a) for $N$ resistors.

Vishal Gupta
Vishal Gupta
Numerade Educator
01:25

Problem 4

A $32 \Omega$ resistor and a $20 \Omega$ resistor are connected in parallel, and the combination is connected across a $240 \mathrm{~V}$ dc line. (a) What is the resistance of the parallel combination? (b) What is the total current through the parallel combination? (c) What is the current through each resistor?

Jilin Wang
Jilin Wang
Boston University
03:48

Problem 5

A triangular array of resistors is shown in Fig. 26.30. What current will this array draw from a $35.0 \mathrm{~V}$ battery having negligible internal resistance if we connect it across (a) $a b$; (b) $b c$; (c) $a c$ ? (d) If the battery has an internal resistance of $3.00 \Omega$, what current will the array draw if the battery is connected across $b c$ ?
( FIGURE CAN'T COPY )

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
06:27

Problem 6

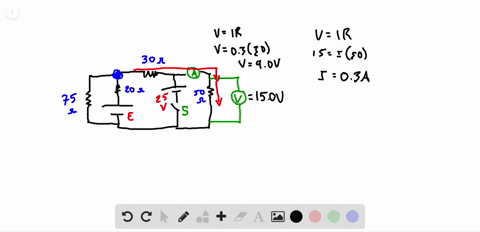

For the circuit shown in Fig. 26.31 both meters are idealised, the battery has no appreciable internal resistance, and the ammeter reads $1.25 \mathrm{~A}$. (a) What does the voltmeter read? (b) What is the emf $\mathcal{E}$ of the battery?

Vishal Gupta
Vishal Gupta
Numerade Educator
03:55

Problem 7

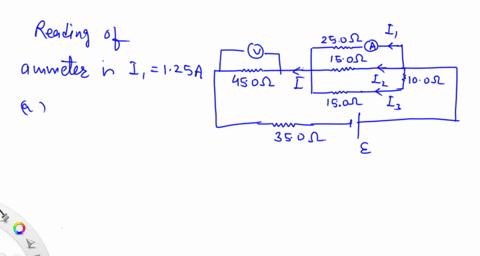

For the circuit shown in Fig. 26.32 find the reading of the idealised ammeter if the battery has an internal resistance of $3.26 \Omega$.

Meghan Miholics
Meghan Miholics
Numerade Educator
07:08

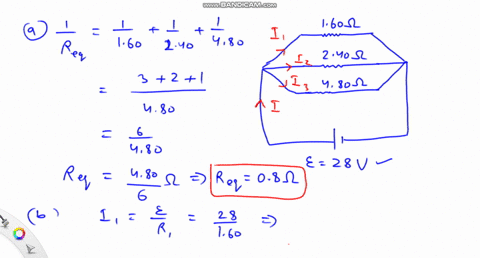

Problem 8

Three resistors having resistances of $1.60 \Omega, 2.40 \Omega$, and $4.80 \Omega$ are connected in parallel to a $28.0 \mathrm{~V}$ battery that has
( FIGURE CAN'T COPY )
negligible internal resistance. Find (a) the equivalent resistance of the combination; (b) the current in each resistor; (c) the total current through the battery; (d) the voltage across each resistor; (e) the power dissipated in each resistor. (f) Which resistor dissipates the most power: the one with the greatest resistance or the least resistance? Explain why this should be.

Vishal Gupta
Vishal Gupta
Numerade Educator
04:29

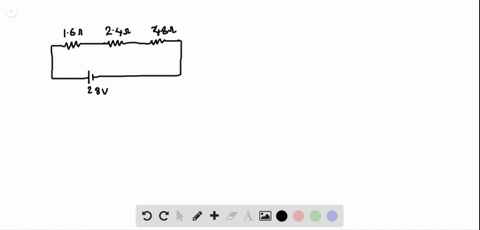

Problem 9

Now the three resistors of Exercise 26.8 are connected in series to the same battery. Answer the same questions for this situation.

Shital Rijal
Shital Rijal
Numerade Educator
03:48

Problem 10

Engineering. The power rating of a resistor is the maximum power the resistor can safely dissipate without too great a rise in temperature and hence damage to the resistor. (a) If the power rating of a $15 \mathrm{k} \Omega$ resistor is $5.0 \mathrm{~W}$, what is the maximum allowable potential difference across the terminals of the resistor? (b) A $9.0 \Omega$ resistor is to be connected across a $120 \mathrm{~V}$ potential difference. What power rating is required? (c) A $100.0 \Omega$ and a $150.0 \Omega$ resistor, both rated at $2.00 \mathrm{~W}$, are connected in series across a variable potential difference. What is the greatest this potential difference can be without overheating either resistor, and what is the rate of heat generated in each resistor under these conditions?

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
02:08

Problem 11

Compute the equivalent resistance of the network in Fig. 26.33, and find the current in each resistor. The battery has negligible internal resistance.
( FIGURE CAN'T COPY )

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
02:08

Problem 12

Compute the equivalent resistance of the network in Fig. 26.34, and find the current in each resistor. The battery has negligible internal resistance.
( FIGURE CAN'T COPY )

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
View

Problem 13

In the circuit of Fig. 26.35, each resistor represents a light bulb. Let $R_1=$ $R_2=R_3=R_4=4.50 \Omega$ and $\mathcal{E}=9.00 \mathrm{~V}$. (a) Find the current in each bulb. (b) Find the power dissipated in each bulb. Which bulb or bulbs glow the brightest? (c) Bulb $R_4$ is now removed from the circuit, leaving a break in the wire at its position. Now what is the current in each of the remaining bulbs $R_1, R_2$, and $R_3$ ? (d) With bulb $R_4$ removed, what is the power dissipated in each of the remaining bulbs? (e) Which light bulb(s) glow brighter as a result of removing $R_4$ ? Which bulb(s) glow less brightly? Discuss why there are different effects on different bulbs.
( FIGURE CAN'T COPY )

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
01:58

Problem 14

Consider the circuit shown in Fig.
26.36. The current through the $6.00 \Omega$ resis-tor is $4.00 \mathrm{~A}$, in the direction shown. What are the currents through the $25.0 \Omega$ and $20.0 \Omega$ resistors?
( FIGURE CAN'T COPY )

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
03:22

Problem 15

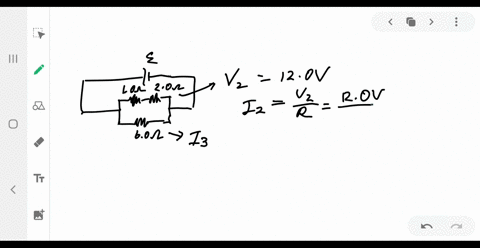

In the circuit shown in Fig. 26.37, the voltage across the $2.00 \Omega$ resistor is $12.0 \mathrm{~V}$. What are the emf of the battery and the current through the $6.00 \Omega$ resistor?
( FIGURE CAN'T COPY )

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
07:20

Problem 16

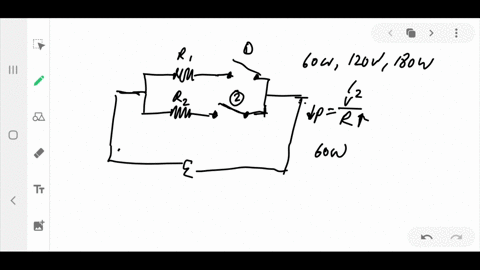

Engineering. A three-way light bulb has three brightness settings (low, medium, and high) but only two filaments. (a) A particular three-way light bulb connected across a $120 \mathrm{~V}$ line can dissipate $60 \mathrm{~W}, 120 \mathrm{~W}$ or $180 \mathrm{~W}$. Describe how the two filaments are arranged in the bulb, and calculate the resistance of each filament. (b) Suppose the filament with the higher resistance burns out. How much power will the bulb dissipate on each of the three brightness settings? What will be the brightness (low, medium, or high) on each setting? (c) Repeat part (b) for the situation in which the filament with the lower resistance burns out.

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
08:29

Problem 17

Two light bulbs have resistances of $400 \Omega$ and $800 \Omega$. If the two light bulbs are connected in series across a $120 \mathrm{~V}$ line, find (a) the current through each bulb; (b) the power dissipated in each bulb; (c) the total power dissipated in both bulbs. The two light bulbs are now connected in parallel across the $120 \mathrm{~V}$ line. Find (d) the current through each bulb; (e) the power dissipated in each bulb; (f) the total power dissipated in both bulbs. (g) In each situation, which of the two bulbs glows the brightest? (h) In which situation is there a greater total light output from both bulbs combined?

Shital Rijal
Shital Rijal
Numerade Educator
04:00

Problem 18

A $60 \mathrm{~W}, 120 \mathrm{~V}$ light bulb and a $200 \mathrm{~W}, 120 \mathrm{~V}$ light bulb are connected in series across a $240 \mathrm{~V}$ line. Assume that the resistance of each bulb does not vary with current. (Note: This description of a light bulb gives the power it dissipates when connected to the stated potential difference; that is, a $25 \mathrm{~W}, 120 \mathrm{~V}$ light bulb dissipates $25 \mathrm{~W}$ when connected to a $120 \mathrm{~V}$ line.) (a) Find the current through the bulbs. (b) Find the power dissipated in each bulb. (c) One bulb burns out very quickly. Which one? Why?

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
04:47

Problem 19

In the circuit in Fig. 26.38 , a $20.0 \Omega$ resistor is inside $100 \mathrm{~g}$
( FIGURE CAN'T COPY )
of pure water that is surrounded by insulating styrofoam. If the water is initially at $10.0^{\circ} \mathrm{C}$, how long will it take for its temperature to rise to $58.0^{\circ} \mathrm{C}$ ?

Shital Rijal
Shital Rijal
Numerade Educator
09:51

Problem 20

In the circuit shown in Fig. 26.39, the rate at which $R_1$ is dissipating electrical energy is $20.0 \mathrm{~W}$. (a) Find $R_1$ and $R_2$. (b) What is the emf of the battery? (c) Find the current through both $R_2$ and the $10.0 \Omega$ resistor. (d) Calculate the total electrical power consumption in all the resistors and the electrical power delivered by the battery. Show that your results are consistent with conservation of energy.
( FIGURE CAN'T COPY )

Vishal Gupta
Vishal Gupta
Numerade Educator
02:43

Problem 21

In the circuit shown in Fig. 26.40 find (a) the current in resistor $R$; (b) the resistance $R$; (c) the unknown emf $\mathcal{E}$. (d) If the circuit is broken at point $x$, what is the current in resistor $R$ ?
( FIGURE CAN'T COPY )

Ajay Singhal
Ajay Singhal
Numerade Educator
05:57

Problem 22

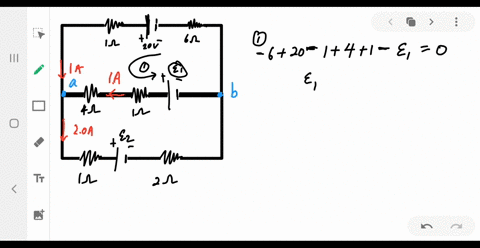

Find the emfs $\mathcal{E}_1$ and $\mathcal{E}_2$ in the circuit of Fig. 26.41, and find the potential difference of point $b$ relative to point $a$.
( FIGURE CAN'T COPY )

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
04:36

Problem 23

In the circuit shown in Fig. 26.42, find (a) the current in the $3.00-\Omega$ resistor; (b) the unknown emfs $\mathcal{E}_1$ and $\mathcal{E}_2$; (c) the resistance $R$. Note that three currents are given.
( FIGURE CAN'T COPY )

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
03:18

Problem 24

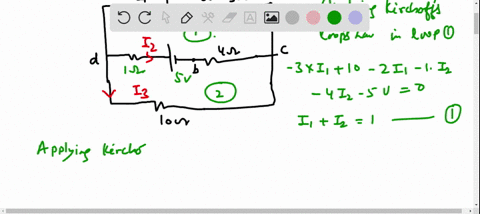

In the circuit shown in Fig. 26.43, find (a) the current in each branch and (b) the potential difference $V_{\text {ab }}$ of point $a$ relative to point $b$.
( FIGURE CAN'T COPY )

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
02:50

Problem 25

The $10.00 \mathrm{~V}$ battery in Fig. 26.43 is removed from the circuit and reinserted with the opposite polarity, so that its positive terminal is now next to point $a$. The rest of the circuit is as shown in the figure. Find (a) the current in each branch and (b) the potential difference $V_{a b}$ of point $a$ relative to point $b$.
( FIGURE CAN'T COPY )

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
04:37

Problem 26

The $5.00 \mathrm{~V}$ battery in Fig. 26.43 is removed from the circuit and replaced by a $20.00 \mathrm{~V}$ battery, with its negative terminal next to point $b$. The rest of the circuit is as shown in the figure. Find (a) the current in each branch and (b) the potential difference $V_{\text {a }}$ of point $a$ relative to point $b$.
( FIGURE CAN'T COPY )

Christopher Dzorkpata
Christopher Dzorkpata
Numerade Educator
07:32

Problem 27

In the circuit shown in Fig. 26.44 the batteries have negligible internal resistance and the meters are both idealised. With the switch $\mathrm{S}$ open, the voltmeter reads $15.0 \mathrm{~V}$. (a) Find the emf $\mathcal{E}$ of the battery. (b) What will the ammeter read when the switch is closed?
( FIGURE CAN'T COPY )

bt
Bruce Tracy
Numerade Educator
04:45

Problem 28

In the circuit shown in Fig. 26.45 both batteries have insignificant internal resistance and the idealised ammeter reads $1.50 \mathrm{~A}$ in the direction shown. Find the emf $\mathcal{E}$ of the battery. Is the polarity shown correct?
( FIGURE CAN'T COPY )

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
04:58

Problem 29

In the circuit shown in Fig. 26.46 all meters are idealised and the batteries have no appreciable internal resistance. (a) Find the reading of the voltmeter with the switch S open. Which point is at a higher potential: $a$ or $b$ ? (b) With the switch closed, find the reading of the voltmeter and the ammeter.
( FIGURE CAN'T COPY )
Which way (up or down) does the current flow through the switch?

Dading Chen
Dading Chen
Numerade Educator
09:29

Problem 30

In the circuit shown in Fig. 26.12 (Example 26.6) the $2 \Omega$ resistor is replaced by a $1 \Omega$ resistor, and the centre $1 \Omega$ resistor (through which the current is $I_3$ ) is replaced by a resistor of unknown resistance $R$. The rest of the circuit is as shown in the figure. (a) Calculate the current in each resistor. Draw a diagram of the circuit, and label each resistor with the current through it. (b) Calculate the equivalent resistance of the network. (c) Calculate the potential difference $V_{a b}$. (d) Your answers in parts (a), (b), and (c) do not depend on the value of $R$. Explain why.

Vishal Gupta
Vishal Gupta
Numerade Educator
05:59

Problem 31

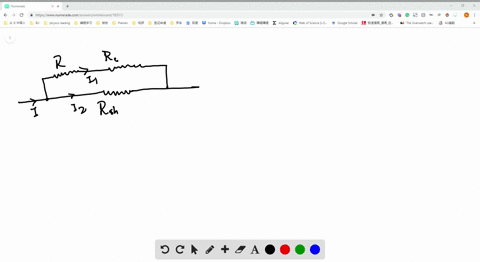

Engineering. The resistance of a galvanometer coil is $25.0 \Omega$, and the current required for full-scale deflection is $500 \mu \mathrm{A}$. (a) Show in a diagram how to convert the galvanometer to an ammeter reading $20.0 \mathrm{~mA}$ full scale, and compute the shunt resistance. (b) Show how to convert the galvanometer to a voltmeter reading $500 \mathrm{mV}$ full scale, and compute the series resistance.

Shital Rijal
Shital Rijal
Numerade Educator
02:25

Problem 32

The resistance of the coil of a pivotedcoil galvanometer is $9.36 \Omega$, and a current of $0.0224 \mathrm{~A}$ causes it to deflect full scale. We want to convert this galvanometer to an ammeter reading 20.0 A full scale. The only shunt available has a resistance of $0.0250 \Omega$. What resistance $R$ must be connected in series with the coil (Fig. 26.47)?
( FIGURE CAN'T COPY )

Jilin Wang
Jilin Wang
Boston University
View

Problem 33

A circuit consists of a series combination of $6.00 \mathrm{k} \Omega$ and $5.00 \mathrm{k} \Omega$ resistors connected across a $50.0 \mathrm{~V}$ battery having negligible internal resistance. You want to measure the true potential difference (that is, the potential difference without the meter present) across the $5.00 \mathrm{k} \Omega$ resistor using a voltmeter having an internal resistance of $10.0 \mathrm{k} \Omega$ (a) What potential difference does the voltmeter measure across the $5.00 \mathrm{k} \Omega$ resistor? (b) What is the true potential difference across this resistor when the meter is not present? (c) By what percentage is the voltmeter reading in error from the true potential difference?

Lainey Roebuck
Lainey Roebuck
Numerade Educator
02:01

Problem 34

Engineering. A galvanometer having a resistance of $25.0 \Omega$ has a $1.00 \Omega$ shunt resistance installed to convert it to an ammeter. It is then used to measure the current in a circuit consisting of a $15.0 \Omega$ resistor connected across the terminals of a $25.0 \mathrm{~V}$ battery having no appreciable internal resistance. (a) What current does the ammeter measure? (b) What should be the true current in the circuit (that is, the current without the ammeter present)? (c) By what percentage is the ammeter reading in error from the true current?

Jilin Wang
Jilin Wang
Boston University
07:23

Problem 35

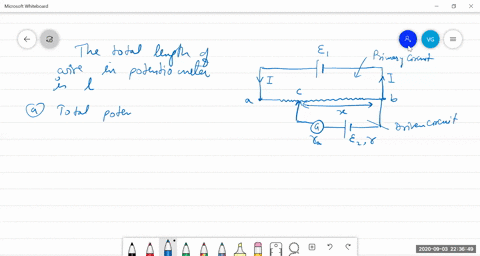

Consider the potentiometer circuit of Fig. 26.19a. The resistor between $a$ and $b$ is a uniform wire with length $l$, with a sliding contact $c$ at a distance $x$ from $b$. An unknown $\operatorname{emf} \mathcal{E}_2$ is measured by sliding the contact until the galvanometer $\mathrm{G}$ reads zero. (a) Show that under this condition the unknown emf is given by $\mathcal{E}_2=(x / I) \mathcal{E}_1$. (b) Why is the internal resistance of the galvano-meter not important? (c) Suppose $\mathcal{E}_1=9.15 \mathrm{~V}$ and $l=1.000 \mathrm{~m}$. The galvanometer $\mathrm{G}$ reads zero when $x=0.365 \mathrm{~m}$. What is the emf $\mathcal{E}_2$ ?

Vishal Gupta
Vishal Gupta
Numerade Educator
04:55

Problem 36

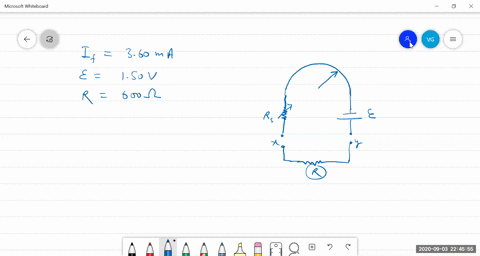

Engineering. In the ohmmeter of Fig. 26.17, the coil of the meter has resistance $R_c=15.0 \Omega$ and the current required for fullscale deflection is $I_{\mathrm{ts}}=3.60 \mathrm{~mA}$. The source is a torch battery with $\mathcal{E}=1.50 \mathrm{~V}$ and negligible intemal resistance. The ohmmeter is to show a meter deflection of one-half of full-scale when connected to a resistor with $R=0$. What series resistance $R$ is required?

Vishal Gupta
Vishal Gupta
Numerade Educator
09:22

Problem 37

In the ohmmeter in Fig. $26.48 \mathrm{M}$ is a $2.50 \mathrm{~mA}$ meter of resistance $65.0 \Omega$. (A 2.50 $\mathrm{mA}$ meter deflects full scale when the current through it is $2.50 \mathrm{~mA}$.) The battery $B$ has an emf of $1.52 \mathrm{~V}$ and negligible internal resistance. $R$ is chosen so that when the terminals $a$ and $b$ are shorted $\left(R_x=0\right)$, the meter reads
( FIGURE CAN'T COPY )
full scale. When $a$ and $b$ are open $\left(R_x=\infty\right)$, the meter reads zero. (a) What is the resistance of the resistor $R$ ? (b) What current indicates a resistance $R_x$ of $200 \Omega$ ? (c) What values of $R_x$ correspond to meter deflections of $\frac{1}{4}, \frac{1}{2}$ and $\frac{3}{4}$ of full scale if the deflection is proportional to the current through the galvanometer?

Vishal Gupta
Vishal Gupta
Numerade Educator
03:41

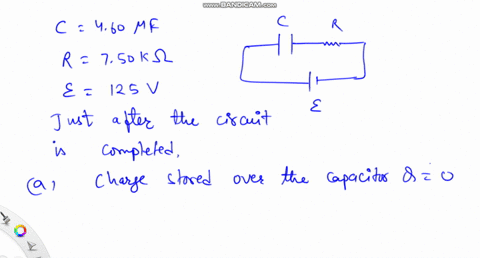

Problem 38

A $4.60 \mu F$ capacitor that is initially uncharged is connected in series with a $7.50-\mathrm{k} \Omega$ resistor and an emf source with $\mathcal{E}=125 \mathrm{~V}$ and negligible internal resistance. Just after the circuit is completed, what are (a) the voltage drop across the capacitor; (b) the voltage drop across the resistor; (c) the charge on the capacitor; (d) the current through the resistor? (e) A long time after the circuit is completed (after many time constants) what are the values of the quantities in parts (a)-(d)?

Vishal Gupta
Vishal Gupta
Numerade Educator
04:57

Problem 39

A capacitor is charged to a potential of $12.0 \mathrm{~V}$ and is then connected to a voltmeter having an internal resistance of $3.40 \mathrm{M} \Omega$. After a time of $4.00 \mathrm{~s}$ the voltmeter reads $3.0 \mathrm{~V}$. What is (a) the capacitance and (b) the time constant of the circuit?

Yaqub Khan
Yaqub Khan
Numerade Educator
15:52

Problem 40

A $12.4 \mu \mathrm{F}$ capacitor is connected through a $0.895 \mathrm{M} \Omega$ resistor to a constant potential difference of 60.0 V. (a) Compute the charge on the capacitor at the following times after the connections are made: $0,5.0 \mathrm{~s}, 10.0 \mathrm{~s}, 20.0 \mathrm{~s}$ and $100.0 \mathrm{~s}$. (b) Compute the charging currents at the same instants. (c) Graph the results of parts (a) and (b) for $t$ between 0 and $20 \mathrm{~s}$.

Yaqub Khan
Yaqub Khan
Numerade Educator
03:19

Problem 41

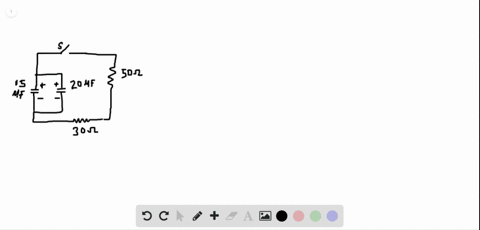

In the circuit shown in Fig. 26.49 both capacitors are initially charged to 45.0 V. (a) How long after closing the switch $\mathrm{S}$ will the potential across each capacitor be reduced to $10.0 \mathrm{~V}$, and (b) what will be the current at that time?
( FIGURE CAN'T COPY )

Shital Rijal
Shital Rijal
Numerade Educator
01:56

Problem 42

A resistor and a capacitor are connected in series to an emf
source. The time constant for the circuit is $0.870 \mathrm{~s}$. (a) A second capacitor, identical to the first, is added in series. What is the time constant for this new circuit? (b) In the original circuit a second capacitor, identical to the first, is connected in parallel with the first capacitor. What is the time constant for this new circuit?

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
01:01

Problem 43

An emf source with $\mathcal{E}=120 \mathrm{~V}$, a resistor with $R=80.0 \Omega$, and a capacitor with $C=4.00 \mu \mathrm{F}$ are connected in series. As the capacitor charges, when the current in the resistor is $0.900 \mathrm{~A}$, what is the magnitude of the charge on each plate of the capacitor?

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
02:38

Problem 44

A $1.50 \mu \mathrm{F}$ capacitor is charging through a $12.0 \Omega$ resistor using a $10.0 \mathrm{~V}$ battery. What will be the current when the capacitor has acquired $\frac{1}{4}$ of its maximum charge? Will it be $\frac{1}{4}$ of the maximum current?

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
07:04

Problem 45

In the circuit shown in Fig. 26.50 each capacitor initially has a charge of magnitude $3.50 \mathrm{nC}$ on its plates. After the switch $S$ is closed, what will be the current in the circuit at the instant that the capacitors have lost $80.0 \%$ of their initial stored energy?
( FIGURE CAN'T COPY )

Rashmi Sinha
Rashmi Sinha
Numerade Educator
03:48

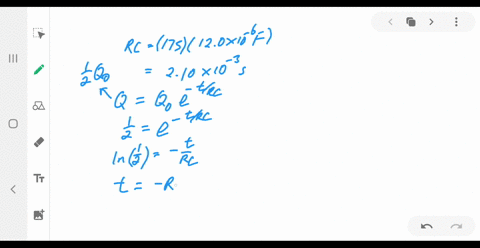

Problem 46

A $12.0 \mu \mathrm{F}$ capacitor is charged to a potential of $50.0 \mathrm{~V}$ and
then discharged through a $175 \Omega$ resistor. How long does it take the capacitor to lose (a) half of its charge and (b) half of its stored energy?

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
08:11

Problem 47

In the circuit in Fig. 26.51 the capacitors are all initially uncharged, the battery has no internal resistance, and the ammeter is idealised. Find the reading of the ammeter (a) just after the switch $\mathrm{S}$ is closed and (b) after the switch has been closed for a very long time
( FIGURE CAN'T COPY )

Linda Winkler
Linda Winkler
Numerade Educator
03:42

Problem 48

In the circuit shown in Fig. $26.52, C=5.90 \mu \mathrm{F}, \mathcal{E}=28.0 \mathrm{~V}$, and the emf has negligible resistance. Initially the capacitor is uncharged and the switch $\mathrm{S}$ is in position 1. The switch is then moved to position 2 , so that the capacitor begins to charge. (a) What will be the charge on the capacitor a long time after the switch is moved to position 2? (b) After the switch has been in position 2 for
$3.00 \mathrm{~ms}$, the charge on the capacitor is measured to be $110 \mu \mathrm{C}$. What is the value of the resistance $R$ ? (c) How long after the switch is moved to position 2 will the charge on the capacitor be equal to $99.0 \%$ of the final value found in part (a)?
( FIGURE CAN'T COPY )

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
07:36

Problem 49

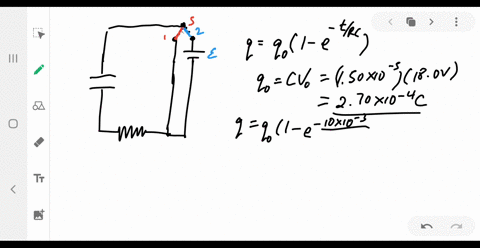

A capacitor with $C=1.50 \times 10^{-5} \mathrm{~F}$ is connected as shown in Fig. 26.52 with a resistor with $R=980 \Omega$ and an emf source with $\mathcal{E}=18.0 \mathrm{~V}$ and negligible internal resistance. Initially the capacitor is uncharged and the switch $\mathrm{S}$ is in position 1. The switch is then moved to position 2 , so that the capacitor begins to charge. After the switch has been in position 2 for $10.0 \mathrm{~ms}$, the switch is moved back to position 1 so that the capacitor begins to discharge. (a) Compute the charge on the capacitor just before the switch is thrown from position 2 back to position 1. (b) Compute the voltage drops across the resistor and across the capacitor at the instant described in part (a). (c) Compute the voltage drops across the resistor and across the capacitor just after the switch is thrown from position 2 back to position 1. (d) Compute the charge on the capacitor $10.0 \mathrm{~ms}$ after the switch is thrown from position 2 back to position 1 .
( FIGURE CAN'T COPY )

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
04:50

Problem 50

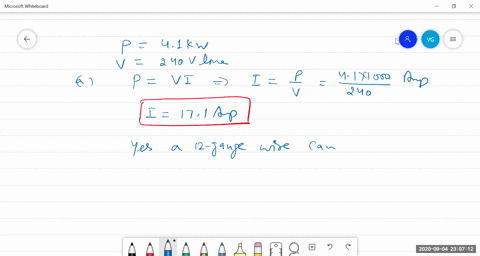

Engineering. The heating element of an electric clothes dryer is rated at $4.1 \mathrm{~kW}$ when connected to a $240 \mathrm{~V}$ line. (a) What is the current in the heating element? Is 12 gauge wire large enough to supply this current? (b) What is the resistance of the dryer's heating element at its operating temperature? (c) At 11 cents per $\mathrm{kWh}$, how much does it cost per hour to operate the dryer?

Vishal Gupta
Vishal Gupta
Numerade Educator
02:15

Problem 51

Engineering. A $1500 \mathrm{~W}$ electric heater is plugged into the outlet of a $120 \mathrm{~V}$ circuit that has a $20 \mathrm{~A}$ circuit breaker. You plug an electric hair dryer into the same outlet. The hair dryer has power settings of $600 \mathrm{~W}, 900 \mathrm{~W}, 1200 \mathrm{~W}$ and $1500 \mathrm{~W}$. You start with the hair dryer on the $600 \mathrm{~W}$ setting and increase the power setting until the circuit breaker trips. What power setting caused the breaker to trip?

Shital Rijal
Shital Rijal
Numerade Educator
03:25

Problem 52

Engineering. How many $90 \mathrm{~W}, 120 \mathrm{~V}$ light bulbs can be connected to a $20 \mathrm{~A}, 120 \mathrm{~V}$ circuit without tripping the circuit breaker?

Vishal Gupta
Vishal Gupta
Numerade Educator
05:30

Problem 53

Engineering. The heating element of an electric stove consists of a heater wire embedded within an electrically insulating material, which in turn is inside a metal casing. The heater wire has a resistance of $20 \Omega$ at room temperature $\left(23.0^{\circ} \mathrm{C}\right)$ and a temperature coefficient of resistivity $\alpha=2.8 \times 10^{-3}\left(\mathrm{C}^0\right)^{-1}$. The heating element operates from a $120 \mathrm{~V}$ line. (a) When the heating element is first turned on, what current does it draw and what electrical power does it dissipate? (b) When the heating element has reached an operating temperature of $280^{\circ} \mathrm{C}$, what current does it draw and what electrical power does it dissipate?

Vishal Gupta
Vishal Gupta
Numerade Educator
05:17

Problem 54

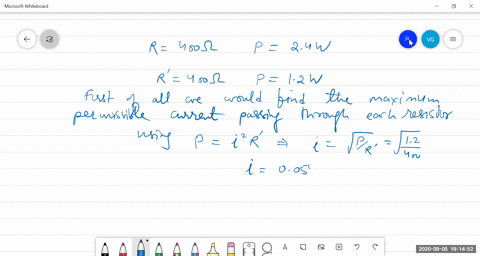

A $400 \Omega 2.4 \mathrm{~W}$ resistor is needed, but only several $400 \Omega$, $1.2 \mathrm{~W}$ resistors are available. (a) What two different combinations of the available units give the required resistance and power rating? (b) For each of the resistor networks from part (a), what power is dissipated in each resistor when $2.4 \mathrm{~W}$ is dissipated by the combination?

Vishal Gupta
Vishal Gupta
Numerade Educator
08:36

Problem 55

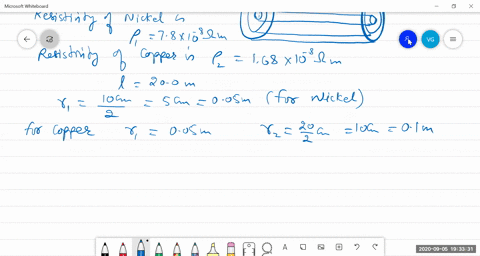

A $20.0 \mathrm{~m}$ long cable consists of a solid-inner, cylindrical, nickel core $10.0 \mathrm{~cm}$ in diameter surrounded by a solid-outer cylindrical shell of copper $10.0 \mathrm{~cm}$ in inside diameter and $20.0 \mathrm{~cm}$ in outside diameter. The resistivity of nickel is $7.8 \times 10^{-8} \Omega \cdot \mathrm{m}$. (a) What is the resistance of this cable? (b) If we think of this cable as a single material, what is its equivalent resistivity?

Vishal Gupta
Vishal Gupta
Numerade Educator
03:40

Problem 56

Two identical $1.00 \Omega$ wires are laid side by side and soldered together so they touch each other for half of their lengths. What is the equivalent resistance of this combination?

Vishal Gupta
Vishal Gupta
Numerade Educator
04:03

Problem 57

The two identical light bulbs in Example 26.2 (Section 26.1) are connected in parallel to a different source, one with $\mathcal{E}=8.0 \mathrm{~V}$ and internal resistance $0.8 \Omega$. Each light bulb has a resistance $R=2.0 \Omega$ (assumed independent of the current through the bulb). (a) Find the current through each bulb, the potential difference across each bulb, and the power delivered to each bulb. (b) Suppose one of the bulbs burns out, so that its filament breaks and current no longer flows through it. Find the power delivered to the remaining bulb. Does the remaining bulb glow more or less brightly after the other bulb burns out than before?

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
04:22

Problem 58

Each of the three resistors in Fig. 26.53 has a resistance of $2.4 \Omega$ and can dissipate a maximum of $36 \mathrm{~W}$ without becoming excessively heated. What is the maximum power the circuit can dissipate?
( FIGURE CAN'T COPY )

Vishal Gupta
Vishal Gupta
Numerade Educator
07:00

Problem 59

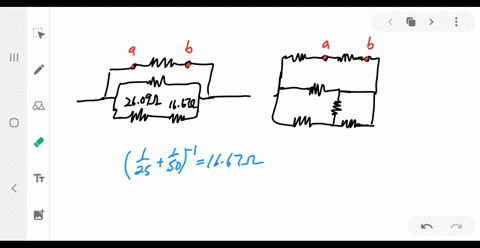

If an ohmmeter is connected between points $a$ and $b$ in each of the circuits shown in Fig. 26.54, what will it read?
(a) ( FIGURE CAN'T COPY )
(b) ( FIGURE CAN'T COPY )

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
04:42

Problem 60

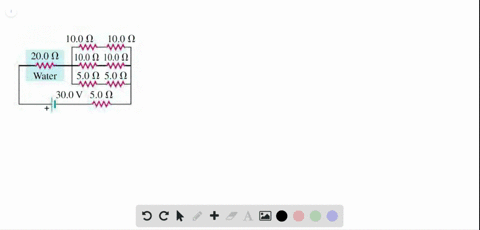

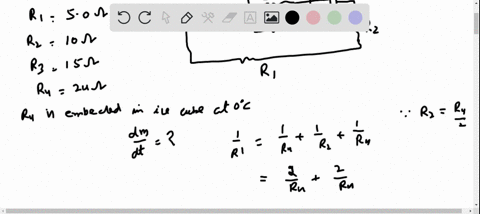

For the circuit shown in Fig. 26.55 a $20.0 \Omega$ resistor is embedded in a large block of ice at $0.00^{\circ} \mathrm{C}$, and the battery has negligible internal resistance. At what rate (in $\mathrm{g} / \mathrm{s}$ ) is this circuit melting the ice? (The latent heat of fusion for ice is $\left.3.34 \times 10^5 \mathrm{~J} / \mathrm{kg}.\right)$
( FIGURE CAN'T COPY )

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
15:14

Problem 61

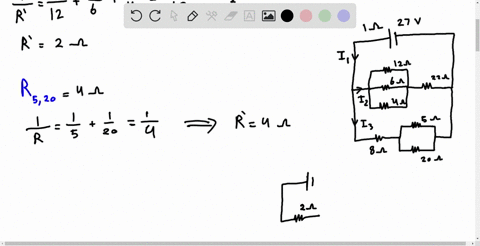

Calculate the three currents $I_1, I_2$, and $I_3$ indicated in the circuit diagram shown in Fig. 26.56.
( FIGURE CAN'T COPY )

Vishal Gupta
Vishal Gupta
Numerade Educator
02:04

Problem 62

What must the emf $\mathcal{E}$ in Fig. 26.57 be in order for the current through the $7.00 \Omega$ resistor to be $1.80 \mathrm{~A}$ ? Each emf source has negligible internal resistance.
( FIGURE CAN'T COPY )

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
09:24

Problem 63

Find the current through each of the three resistors of the circuit shown in Fig. 26.58. The emf sources have negligible internal resistance.
( FIGURE CAN'T COPY )

Vishal Gupta
Vishal Gupta
Numerade Educator
14:38

Problem 64

(a) Find the current through the battery and each resistor in the circuit shown in Fig. 26.59. (b) What is the equivalent resistance of the resistor network?
( FIGURE CAN'T COPY )

Matthew Miranda
Matthew Miranda
Numerade Educator
03:34

Problem 65

(a) Find the potential of point $a$ with respect to point $b$ in Fig. 26.60. (b) If points $a$ and $b$ are connected by a wire with negligible resistance, find the current in the $12.0 \mathrm{~V}$ battery.
( FIGURE CAN'T COPY )

Christopher Dzorkpata
Christopher Dzorkpata
Numerade Educator
05:37

Problem 66

Consider the circuit shown in Fig. 26.61: (a) What must the emf $\mathcal{E}$ of the battery be in order for a current of $2.00 \mathrm{~A}$ to flow through the $5.00 \mathrm{~V}$ battery as shown? Is the polarity of the battery correct as shown? (b) How long does it take for $60.0 \mathrm{~J}$ of thermal energy to be produced in the $10.0 \Omega$ resistor?
( FIGURE CAN'T COPY )

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
10:30

Problem 67

In the circuit shown in Fig. 26.62 the current through the $12.0-\mathrm{V}$ battery is measure to be $70.6 \mathrm{~mA}$ in the direction shown. What is the terminal voltage $V_{a b}$ of the $24.0 \mathrm{~V}$ battery?
( FIGURE CAN'T COPY )

Vishal Gupta
Vishal Gupta
Numerade Educator
12:03

Problem 68

In the circuit shown in Fig. 26.63 all the resistors are rated at a maximum power of $1.00 \mathrm{~W}$. What is the maximum $\operatorname{emf} \mathcal{E}$ that the battery can have without burning up any of the resistors?
( FIGURE CAN'T COPY )

Vishal Gupta
Vishal Gupta
Numerade Educator
08:43

Problem 69

In the circuit shown in Fig. 26.64, the current in the $20.0 \mathrm{~V}$ battery is $5.00 \mathrm{~A}$ in the direction shown and the voltage across the $8.00 \Omega$ resistor is $16.0 \mathrm{~V}$, with the lower end of the resistor at higher potential. Find (a) the emf (including its polarity) of the battery X; (b) the current $I$ through the $200.0 \mathrm{~V}$ battery (including its direction); (c) the resistance $R$.

Shital Rijal
Shital Rijal
Numerade Educator
04:59

Problem 70

Three identical resistors are connected in series. When a certain potential difference is applied across the combination, the
total power dissipated is $27 \mathrm{~W}$. What power would be dissipated if the three resistors were connected in parallel across the same potential difference?

Yaqub Khan
Yaqub Khan
Numerade Educator
04:44

Problem 71

A resistor $R_1$ consumes electrical power $P_1$ when connected to an emf $\mathcal{E}$. When resistor $R_2$ is connected to the same emf, it consumes electrical power $P_2$. In terms of $P_1$ and $P_2$, what is the total electrical power consumed when they are both connected to this emf source (a) in parallel and (b) in series?

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
05:38

Problem 72

The capacitor in Fig. 26.65 is initially uncharged. The switch is closed at $t=0$ (a) Immediately after the switch is closed, what is the current through each resistor? (b) What is the final charge on the capacitor?
( FIGURE CAN'T COPY )

Rashmi Sinha
Rashmi Sinha
Numerade Educator
17:07

Problem 73

Figure 26.66 employs a convention often used in circuit
diagrams. The battery (or other power supply) is not shown explicitly. It is understood that the point at the top, labelled ' $36.0 \mathrm{~V}$ ', is connected to the positive terminal of a $36.0 \mathrm{~V}$ battery having negligible internal resistance, and that the 'ground' symbol at the bottom is connected to the negative terminal of the battery. The circuit is completed through the battery, even though it is not shown on the diagram.
(a) What is the potential difference $V_{a b}$, the potential of point $a$ relative to point $b$, when the switch $\mathrm{S}$ is open? (b) What is the current through switch $\mathrm{S}$ when it is closed? (c) What is the equivalent resistance when switch $\mathrm{S}$ is closed?
( FIGURE CAN'T COPY )

Vishal Gupta
Vishal Gupta
Numerade Educator
15:59

Problem 74

(See Problem 26.73.) (a) What is the potential of point $a$ with respect to point $b$ in Fig. 26.67 when switch $S$ is open? (b) Which point, $a$ or $b$, is at the higher potential? (c) What is the final potential of point $b$ with respect to ground when switch $\mathrm{S}$ is closed? (d) How much does the charge on each capacitor change when $\mathrm{S}$ is closed?
( FIGURE CAN'T COPY )

Daniel Sneed
Daniel Sneed
Numerade Educator
06:07

Problem 75

Engineering. The resistance of the moving coil of the galvanometer $\mathrm{G}$ in Fig. 26.68 is $48.0 \Omega$, and the galvanometer deflects full scale with a current of $0.0200 \mathrm{~A}$. When the meter is connected to the circuit being measured, one connection is made to the post marked + and the other to the post
marked with the desired current range. Find the magnitudes of the resistances $R_1, R_2$ and $R_3$ required to convert the galvanometer to a multirange ammeter deflecting full scale with currents of $10.0 \mathrm{~A}$, $1.00 \mathrm{~A}$, and $0.100 \mathrm{~A}$.
( FIGURE CAN'T COPY )

Vishal Gupta
Vishal Gupta
Numerade Educator
05:59

Problem 76

Engineering. Figure 26.69 shows the internal wiring of a 'three-scale' voltmeter whose binding posts are marked +, $3.00 \mathrm{~V}, 15.0 \mathrm{~V}$ and $150 \mathrm{~V}$. When the meter is connected to the circuit being measured, one connec-
tion is made to the post marked + and the other to the post marked with the desired voltage range. The resistance of the moving coil, $R_{\mathrm{G}}$, is $40.0 \Omega$, and a current of $1.00 \mathrm{~mA}$ in the coil causes it to deflect full scale. Find the resistances $R_1, R_2$ and $R_3$ and the overall resistance of the meter on each of its ranges.
( FIGURE CAN'T COPY )

Vishal Gupta
Vishal Gupta
Numerade Educator
06:05

Problem 77

Point $a$ in Fig. 26.70 is maintained at a constant potential of $400 \mathrm{~V}$ above ground. (See Problem 26.73.) (a) What is the reading of a voltmeter with the proper range and with resistance $5.00 \times 10^4 \Omega$ when connected
between point $b$ and ground? (b) What is the reading of a voltmeter with resistance $5.00 \times 10^6 \Omega$ ? (c) What is the reading of a voltmeter with infinite resistance?
( FIGURE CAN'T COPY )

Shital Rijal
Shital Rijal
Numerade Educator
02:58

Problem 78

A $150 \mathrm{~V}$ voltmeter has a resistance of $30,000 \Omega$. When connected in series with a large resistance $R$ across a $110 \mathrm{~V}$ line, the meter reads $68 \mathrm{~V}$. Find the resistance $R$.

Vishal Gupta
Vishal Gupta
Numerade Educator
05:10

Problem 79

The circuit shown in Fig. 26.71, called a Wheatstone bridge, is used to determine the value of an unknown resistor $X$ by comparison with three resistors $M$, $N$ and $P$ whose resistances can be varied. For each setting, the resistance of each resistor is precisely known. With switches $K_1$ and $K_2$ closed, these resistors are varied until the current in the galvanometer
$\mathrm{G}$ is zero; the bridge is then said to be balanced. (a) Show that under this condition the unknown resistance is given by $X=M P / N$. (This method permits very high precision in comparing resistors.) (b) If the galvanometer $G$ shows zero deflection when $M=850.0 \Omega, N=15.00 \Omega$ and $P=33.48 \Omega$, what is the unknown resistance $X$ ?
( FIGURE CAN'T COPY )

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
01:19

Problem 80

Engineering. A certain galvanometer has a resistance of $65.0 \Omega$ and deflects full scale with a current of $1.50 \mathrm{~mA}$ in its coil. This is to be replaced with a second galvanometer that has a resistance of $38.0 \Omega$ and deflects full scale with a current of $3.60 \mu \mathrm{A}$ in its coil. Devise a circuit incorporating the second galvanometer such that the equivalent resistance of the circuit equals the resistance of the first galvanometer, and the second galvanometer deflects full scale when the current through the circuit equals the full-scale current of the first galvanometer.

Mayukh Banik
Mayukh Banik
Numerade Educator
13:29

Problem 81

A $224 \Omega$ resistor and a $589 \Omega$ resistor are connected in series across a $90.0 \mathrm{~V}$ line. (a) What is the voltage across each resistor? (b) A voltmeter connected across the $224 \Omega$ resistor reads $23.8 \mathrm{~V}$. Find the voltmeter resistance. (c) Find the reading of the same voltmeter if it is connected across the $589 \Omega$ resistor. (d) The readings on this voltmeter are lower than the 'true' voltages (that is, without the voltmeter present). Would it be possible to design a voltmeter that gave readings higher than the 'true' voltages? Explain.

Vishal Gupta
Vishal Gupta
Numerade Educator
12:14

Problem 82

A $2.36 \mu \mathrm{F}$ capacitor that is initially uncharged is connected in series with a $4.26 \Omega$ resistor and an emf source with $\mathcal{E}=120 \mathrm{~V}$ and negligible internal resistance. (a) Just after the connection is made, what are (i) the rate at which electrical energy is being dissipated in the resistor; (ii) the rate at which the electrical energy stored in the capacitor is increasing; (iii) the electrical power output of the source? How do the answers to parts (i), (ii) and (iii) compare? (b) Answer the same questions as in part (a) at a long time after the connection is made. (c) Answer the same questions as in part (a) at the instant when the charge on the capacitor is one-half its final value.

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
03:00

Problem 83

A capacitor that is initially uncharged is connected in series with a resistor and an emf source with $\mathcal{E}=110 \mathrm{~V}$ and negligible internal resistance. Just after the circuit is completed, the current through the resistor is $6.5 \times 10^{-5} \mathrm{~A}$. The time constant for the circuit is $6.2 \mathrm{~s}$. What are the resistance of the resistor and the capacitance of the capacitor?

Vishal Gupta
Vishal Gupta
Numerade Educator
04:07

Problem 84

A resistor with $R=850 \Omega$ is connected to the plates of a charged capacitor with capacitance $C=4.62 \mu \mathrm{F}$. Just before the connection is made, the charge on the capacitor is $8.10 \mathrm{mC}$. (a) What is the energy initially stored in the capacitor? (b) What is the electrical power dissipated in the resistor just after the connection is made? (c) What is the electrical power dissipated in the resistor at the instant when the energy stored in the capacitor has decreased to half the value calculated in part (a)?

Salamat Ali
Salamat Ali
Numerade Educator
04:16

Problem 85

Strictly speaking, Eq. (26.16) implies that an infinite amount of time is required to discharge a capacitor completely. Yet for practical purposes, a capacitor may be considered to be fully discharged after a finite length of time. To be specific, consider a capacitor with capacitance $C$ connected to a resistor $R$ to be fully discharged if its charge $q$ differs from zero by no more than the charge of one electron. (a) Calculate the time required to reach this state if $C=0.920 \mu \mathrm{F}, R=670 \mathrm{k} \Omega$ and $Q_0=7.00 \mu \mathrm{C}$. How many time constants is this? (b) For a given $Q_0$, is the time required to reach this state always the same number of time constants, independent of the values of $C$ and $R$ ? Why or why not?

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
04:32

Problem 86

An $R-C$ circuit has a time constant $R C$. (a) If the circuit is discharging, how long will it take for its stored energy to be reduced to $1 / e$ of its initial value? (b) If it is charging, how long will it take for the stored energy to reach $1 / e$ of its maximum value?

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
07:51

Problem 87

The current in a charging capacitor is given by Eq. (26.13). (a) The instantaneous power supplied by the battery is $\mathcal{E} i$. Integrate this to find the total energy supplied by the battery. (b) The instantaneous power dissipated in the resistor is $i^2 R$. Integrate this to find the total energy dissipated in the resistor. (c) Find the final energy stored in the capacitor, and show that this equals the total energy supplied by the battery less the energy dissipated in the resistor, as obtained in parts (a) and (b). (d) What fraction of the energy supplied by the battery is stored in the capacitor? How does this fraction depend on $R$ ?

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
04:13

Problem 88

(a) Using Eq. (26.17) for the current in a discharging capacitor, derive an expression for the instantaneous power $P=i^2 R$ dissipated in the resistor. (b) Integrate the expression for $P$ to find the
total energy dissipated in the resistor, and show that this is equal to the total energy initially stored in the capacitor.

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
08:51

Problem 89

According to the theorem of superposition, the response (current) in a circuit is proportional to the stimulus (voltage) that causes it. This is true even if there are multiple sources in a circuit. This theorem can be used to analyse a circuit without resorting to Kirchhoff's rules by consider-
ing the currents in the circuit to be the superposition of currents caused by each source independently. In this way the circuit can be analysed by computing equivalent resistances rather than by using the (sometimes) more cumbersome method of Kirchhoff's rules. Furthermore, with the superposition theorem it is possible to examine how the modification of a source in one part of the circuit will affect the currents in all parts of the circuit without having to use Kirchhoff's rules to recalculate all of the currents. Consider the circuit shown in Fig. 26.72. If the circuit were redrawn with the $55.0 \mathrm{~V}$ and $57.0 \mathrm{~V}$ sources replaced by short circuits, the circuit could be analysed by the method of equivalent resistances without resorting to Kirchhoff's rules, and the current in each branch could be found in a simple manner. Similarly, if the circuit with the $92.0 \mathrm{~V}$ and the $55.0 \mathrm{~V}$ sources were replaced by short circuits, the circuit could again be analysed in a simple manner. Finally, if the $92.0 \mathrm{~V}$ and the $57.0 \mathrm{~V}$ sources were replaced with a short circuit, the circuit could once again be analysed simply. By superimposing the respective currents found in each of the branches by using the three simplified circuits, we can find the actual current in each branch. (a) Using Kirchhoff's rules, find the branch currents in the $140.0 \Omega, 210.0 \Omega$ and $35.0 \Omega$ resistors. (b) Using a circuit similar to the circuit of Fig. 26.72 , but with the $55.0 \mathrm{~V}$ and $57.0 \mathrm{~V}$ sources replaced by a short circuit, determine the currents in each resistance. (c) Repeat part (b) by replacing the $92.0 \mathrm{~V}$ and $55.0 \mathrm{~V}$ sources by short circuits, leaving the $57.0 \mathrm{~V}$ source intact. (d) Repeat part (b) by replacing the $92.0 \mathrm{~V}$ and $57.0 \mathrm{~V}$ sources by short circuits, leaving the $55.0 \mathrm{~V}$ source intact. (e) Verify the superposition theorem by taking the currents calculated in parts (b), (c) and (d) and comparing them with the currents calculated in part (a). (f) If the $57.0 \mathrm{~V}$ source is replaced by an $80.0 \mathrm{~V}$ source, what will be the new currents in all branches of the circuit?
( FIGURE CAN'T COPY )

Shelby Mohamed
Shelby Mohamed
Numerade Educator
06:16

Problem 90

Engineering. The capacitance of a capacitor can be affected by dielectric material that, although not inside the capacitor, is near enough to the capacitor to be polarised by the fringing electric field that exists near a charged capacitor. This effect is usually of the order of picofarads $(\mathrm{pF})$, but it can be used with appropriate electronic circuitry to detect a change in the dielectric material surrounding the capacitor. Such a dielectric material might be the human body, and the effect described above might be
used in the design of a burglar alarm. Consider the simplified circuit shown in Fig. 26.73. The voltage source has emf $\mathcal{E}=1000 \mathrm{~V}$, and the capacitor has capacitance $C=10.0 \mathrm{pF}$. The electronic circuitry for detecting the current, represented as an ammeter in the diagram, has negligible resistance
and is capable of detecting a current that persists at a level of at least $1.00 \mu \mathrm{A}$ for at least $200 \mu$ s after the capacitance has changed abruptly from $C$ to $C^{\prime}$. The burglar alarm is designed to be activated if the capacitance changes by $10 \%$. (a) Determine the charge on the $10.0-\mathrm{pF}$ capacitor when it is fully charged. (b) If the capacitor is fully charged before the intruder is detected, assuming that the time taken for the capacitance to change by $10 \%$ is short enough to be ignored, derive an equation that expresses the current through the resistor $R$ as a function of the time $t$ since the capacitance has changed. (c) Determine the range of values of the resistance $R$ that will meet the design specifications of the burglar alarm. What happens if $R$ is too small? Too large?
( FIGURE CAN'T COPY )

Kai Chen
Kai Chen
Princeton University
View

Problem 91

As shown in Fig. 26.74, a network of resistors of resistances $R_1$ and $R_2$ extends to infinity towards the right. Prove that the total resistance $R_{\mathrm{T}}$ of the infinite network is equal to
$$
R_{\mathrm{T}}=R_1+\sqrt{R_1^2+2 R_1 R_2}
$$

Lainey Roebuck
Lainey Roebuck
Numerade Educator
04:06

Problem 92

Suppose a resistor $R$ lies along each edge of a cube ( 12 resistors in all) with connections at the corners. Find the equivalent resistance between two diagonally opposite corners of the cube (points $a$ and $b$ in Fig. 26.75).
( FIGURE CAN'T COPY )

Christopher Dzorkpata
Christopher Dzorkpata
Numerade Educator
