Electromagnetic Fields and Waves: Including Electric Circuits

Paul Lorrain, Dale R. Corson

Chapter 3

Electric Fields I - all with Video Answers

Educators


Chapter Questions

01:33

Problem 1

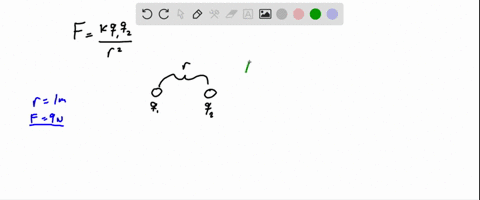

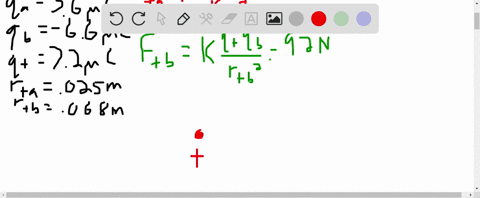

The force of attraction between two charges of 1 coulomb and of opposite signs, separated by a distance of 1 meter, is about $9 \times 10^{9}$ newtons.
How large is a cube of lead that has a weight of $9 \times 10^{9}$ newtons? Lead has a density of $1.13 \times 10^{4}$ kilograms/meter $^{3}$.

Stephen Zaffke
Stephen Zaffke
Numerade Educator
04:25

Problem 2

It is possible to separate normal seeds from discolored ones and from foreign objects by means of a device that operates as follows. The seeds drop one by one between a pair of photocells. If the color is not right, voltage is applied to a needle that deposits a charge on the seed. The seeds. then fall between a pair of electrically charged plates that deflect the undesired ones into a separate bin. One such machine can sort peas at the rate of 100 per second, or about 2 metric tons per 24-hour day.
(a) If the seeds fall at the rate of 100 per second, over what distance must they fall if they must be spaced vertically by 20 millimeters when they pass between the photocells? Neglect air resistance.
(b) Assume that the seeds acquire a charge of $1.5 \times 10^{-9}$ coulomb, that the deflecting plates are parallel and 50 millimeters apart, and that the potential difference between them is 25,000 volts. How long should the plates extend below the charging needle if the charged seeds must deflect by 40 millimeters on leaving the plates? Assume that the charging needle, and the top of the deflecting plates are close to the photocell.

Salamat Ali
Salamat Ali
Numerade Educator
05:39

Problem 3

In 1906, in the course of a historic experiment that demonstrated the small size of the atomic nucleus, Rutherford observed that an alpha particle $\left(Q_{1}=2 \times 1.6 \times 10^{-19}\right.$ coulomb) having a kinetic energy of $7.68 \times 10^{6}$ electron volts $\left(7.68 \times 10^{6} \times 1.6 \times 10^{-19}\right.$ joule) rebounds backward in a head-on collision with a gold nucleus $\left(Q_{2}=79 \times 1.6 \times 10^{-19}\right.$ coulomb).
(a) What is the distance of closest approach where the electrostatic potential energy is equal to the initial kinetic energy? Express your result in femtometers $\left(10^{-15}\right.$ meter $)$.
(b) What is the maximum force of repulsion?
(c) What is the maximum acceleration in $g$ 's? The mass of the alpha particle is about 4 times that of a proton, or $4 \times 1.7 \times 10^{-27}$ kilogram.

Ren Jie Tuieng
Ren Jie Tuieng
Numerade Educator
04:12

Problem 4

Ion thrusters correct either the attitude or the trajectory of satellites.
The force exerted by a thruster is equal to $m^{\prime} v$, where $m^{\prime}$ is the mass of propellant ejected per second and $v$ is the exhaust velocity with respect to the thruster.
Figure $3-10$ shows a schematic diagram of a thruster that ejects a beam of charged particles. The propellant enters at $P$ and is ionized in $S .$ Electrodes $A$ and $B$ form a lens that accelerates the positive ions. A beam of positive ions exits on the right at a velocity determined by the accelerating voltage $V$. The ions of mass $m$ carry charges $n e$, where $e$ is the magnitude of the electronic charge. The current is $I$. Electrons emitted by the filament $F$ neutralize the beam so as to prevent the satellite from charging up.
(a) Show that the thrust is given by $F=I[2 V m /(n e)]^{1 / 2}$.
(b) What is the value of $F$ for a 0.1-ampere beam of protons when $V=50$ kilovolts?
(c) If $P$ is the power $I V$ spent in accelerating the particles, show that
$$
F=\left(2 P m^{\prime}\right)^{1 / 2}=\frac{2 P}{v}=P\left(\frac{2 m}{n e V}\right)^{1 / 2}
$$
Thus, for given values of $P$ and $m^{\prime}$, the thrust is independent of the charge-to-mass ratio of the ions. Or, for a given $P, F$ is inversely proportional to $v$. The last expression shows that, for a given power expenditure $P$, it is preferable to use heavy ions carrying a single charge $(n=1)$ and to use as low an accelerating voltage $V$ as possible.
(d) If the electron source is turned off and if the beam current $I$ is 1 ampere, how long will it take the body of the rocket to attain a voltage equal to the accelerating voltage, if $V$ is 50 kilovolts? Assume that the rocket is spherical and that it has a radius of 1 meter. At that point the thruster ceases to operate because the ions follow the satellite.

Amit Srivastava
Amit Srivastava
Numerade Educator
01:32

Problem 5

An electric field points everywhere in the $z$-direction.
(a) What can you conclude about the value of the partial derivatives of $\boldsymbol{E}$ with respect to $x, y, z(\mathrm{i})$ if the space charge density $\rho$ is zero and (ii) if $\rho$ is not zero?
(b) Sketch lines of $\boldsymbol{E}$ for one possible and for one impossible field, on the assumption that $\boldsymbol{\nabla} \times \boldsymbol{E}=0$.

Keshav Singh
Keshav Singh
Numerade Educator
04:16

Problem 6

The conduction electron density at the surface of electrically charged copper
A copper atom has a diameter of about $0.3$ nanometer.
(a) Calculate (i) the approximate number of atoms per square meter, (ii) the approximate charge density that would result if each atom gained one free electron, and (iii) the corresponding electric field strength.
(b) The maximum possible electric field strength in air is $3 \times 10^{6}$ volts/ meter. How far apart are the excess electrons at that value of $E$ ?

Narayan Hari
Narayan Hari
Numerade Educator
01:31

Problem 7

The electric field strength in the atmosphere near the surface of the earth is about 100 volts/meter and points downward. The potential increases with increasing height, up to about 300,000 volts. This field is maintained by thunderstorms, which deposit negative charge on the earth at the average rate of about $10^{3}$ amperes.
Calculate the electric charge carried by the earth.

Mayukh Banik
Mayukh Banik
Numerade Educator
04:57

Problem 8

Figure $33-4$ shows a coaxial line. Show that, at a distance $\rho$ from the axis in the region between the two conductors, $E=\lambda /\left(2 \pi \epsilon_{0} \rho\right)$, where $\lambda$ is the charge per unit length on the inner conductor. The vector $\boldsymbol{E}$ points outward if $\lambda$ is positive.

Ceren Uzun
Ceren Uzun
Texas Tech University
03:01

Problem 9

A uniform linear distribution of charge of $\lambda$ coulombs/meter is situated at a distance $r$ from a point charge $Q$ of opposite sign.
(a) Calculate the force of attraction.
(b) Show that the force is the same as if the linear distribution were replaced by a single charge $Q^{\prime}=2 \lambda r$ situated at the foot of the perpendicular drawn from $Q$

Kayla Gephart
Kayla Gephart
Numerade Educator
08:59

Problem 10

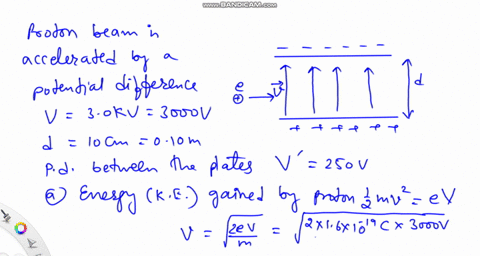

A $1.00$-microampere beam of protons is accelerated through a difference of potential of 10,000 volts.
(a) Calculate the charge density in the beam, once the protons have been accelerated, assuming that the current density is uniform over a diameter of $2.00$ millimeters and is zero outside.
(b) Calculate the radial $E$ both inside and outside the beam.
(c) Draw a graph of the radial $E$ for values of $r$ ranging from 0 to $10.0$ millimeters.
(d) The beam is situated on the axis of a grounded cylindrical conducting tube with an inside radius of $10.0$ millimeters. Draw a graph of $V$ inside the tube.
(e) Calculate the electric charge density per unit length on the inside of the tube.

Vishal Gupta
Vishal Gupta
Numerade Educator
08:17

Problem 11

The radial dependence of the electric charge density inside a certain atomic nucleus of radius $a$ is roughly described by $\rho=\rho_{0}\left(1-r^{2} / a^{2}\right)$, for $r \leq a$, where $\rho_{0}=5.0 \times 10^{25}$ coulombs/meter $^{3}$ and $a=3.4$ femtometers.
(a) What is the total charge $Q$ ?
(b) Find $E$ and $V$ outside the nucleus. What are the values of $E$ and $V$ at the surface?
(c) Find $E$ and $V$ inside the nucleus. What is the value of $V$ at the center?
(d) Show that $E$ is maximum at $r / a=0.745$.
(e) Draw graphs showing $E /\left(2 \rho_{0} / 15 \epsilon_{0}\right)$ and $V /\left(2 \rho_{0} / 15 \epsilon_{0}\right)$ as functions

Mohit Khurana
Mohit Khurana
Texas A&M University
03:00

Problem 12

A Van de Graaff particle accelerator has a high-voltage electrode maintained under pressure in gaseous $S F_{6}$ in a metal tank. It is possible to maintain much higher voltages in this way than if the electrode were in air.
Assume that the electrode is spherical and that its radius is $r_{1}$. Its voltage is $V .$ The tank has a radius $r_{2}$ and is grounded. The electric field strength is highest at the surface of the electrode. You are required to find values of $r_{1}$ and $r_{2}$ that will minimize this $E$.
For a given value of $r_{1}$, the optimum value of $r_{2}$ is infinite, which is absurd. Of course, cost, weight, and space limit $r_{2} .$ So you must optimize $r_{1}$ for a given $r_{2}$, which is 483 millimeters in one specific case.
(a) Show that $E$ at the surface of the high-voltage electrode ( $\left.r=r_{1}\right)$ has a minimum value of $2 V / r_{1}$ when $r_{1}=r_{2} / 2$.
(b) Explain qualitatively why there is an optimum radius $r_{1}$.
(c) Identifying an optimum condition is not sufficient. You must also evaluate how critical the condition is. So plot $E / V$ at $r=r_{1}$ for $r_{2}=0.483$ meter and for values of $r_{1}$ ranging from 100 to 400 millimeters.
(d) What range of values of $r_{1}$ is permissible if $E$ can be $10 \%$ larger than $2 V / r_{1} ?$
(e) Calculate $2 V / r_{1}$ for $V=5 \times 10^{5}$ volts and for the optimum $r_{1}$.

Hubert Agamasu
Hubert Agamasu
Numerade Educator
04:45

Problem 13

(a) Calculate the escape energy for a particle of mass $m$ and charge $q$ situated at the surface of a star of mass $M$, charge $Q$, and radius $R$.
(b) Calculate the equilibrium potential $V$ of the star. Assume a sphere of fully ionized atomic hydrogen, with the electrons and protons at the same temperature and zero net current. The fraction of the electrons, or protons, that possess enough energy to escape is
$$
\exp \left(-\frac{\text { escape kinetic energy }}{k T}\right)
$$
where $k$ is Boltzmann's constant, $1.37 \times 10^{-2 x}$ joule per degree. At equilibrium, the electron and proton currents are equal. It is this phenomenon that causes the solar wind.
(c) Show that $V \approx 10^{3}$ volts for the sun.
This phenomenon does not appear to have any appreciable astrophysical significance. Even giant galaxies have center-to-surface potential differences that are only of the order of 1000 volts, like the sun.

Keshav Singh
Keshav Singh
Numerade Educator
16:18

Problem 14

(a) Calculate the escape energy for a particle of mass $m$ and charge $q$ situated at the surface of a star of mass $M$, charge $Q$, and radius $R$.
(b) Calculate the equilibrium potential $V$ of the star. Assume a sphere of fully ionized atomic hydrogen, with the electrons and protons at the same temperature and zero net current. The fraction of the electrons, or protons, that possess enough energy to escape is
$$
\exp \left(-\frac{\text { escape kinetic energy }}{k T}\right)
$$
where $k$ is Boltzmann's constant, $1.37 \times 10^{-2 x}$ joule per degree. At equilibrium, the electron and proton currents are equal. It is this phenomenon that causes the solar wind.
(c) Show that $V \approx 10^{3}$ volts for the sun.
This phenomenon does not appear to have any appreciable astrophysical significance. Even giant galaxies have center-to-surface potential differences that are only of the order of 1000 volts, like the sun. Show that, for any $r, I=2 \pi r \rho \mathcal{M E}$, where $\rho$ is the space charge density $\epsilon_{0} E / r .$
(b) The drift velocity of the dust particles is given by Stokes's law: it is the force $E Q$ divided by $6 \pi \eta a$, where $\eta$ is the viscosity of the gas.
Show that their drift velocity $v$ is $2 \epsilon_{0} E^{2} a / \eta$.
(c) Calculate $I, \rho, v$, and the time required for a dust particle to drift from the cathode to the anode when $\mathscr{M}=2 \times 10^{-4}$ meter $^{2} /$ (volt-second), $a=5$ micrometers, and $\eta=2 \times 10^{-5}$ kilogram/(meter-second).
This simplified theory neglects turbulence, which is important in practice.

Amit Srivastava
Amit Srivastava
Numerade Educator
15:52

Problem 15

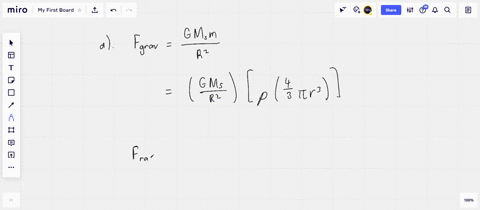

In 1959 Lyttleton and Bondi suggested that the expansion of the universe could be explained on the basis of Newtonian mechanics if matter carries a net electric charge.
Imagine a spherical volume $V$ of astronomical size containing un-ionized atomic hydrogen of uniform density $N$ atoms per cubic meter, and assume that the proton charge $e_{p}$ is equal to $(1+y) e$, where $e$ is the magnitude of the electron charge.
(a) Find $E$ at the radius $R$.
(b) Show that, for $y>10^{-18}$, the electric repulsion becomes greater than the gravitational attraction, so the gas expands.
(c) Show that the force of repulsion on an atom is then proportional to its distance $R$ from the center and that, as a consequence, the radial velocity of an atom at $R$ is proportional to $R$. Assume that the density is maintained constant by the continuous creation of matter in space.
(d) Show that the velocity $v$ is $R / T$, where $T$ is the time required for the radial distance $R$ of a given atom to increase by a factor of $e .$ This time $T$ can be taken to be the age of the universe.
(e) In the Millikan oil-drop experiment, an electrically charged droplet of oil is suspended in the electric field between two plane horizontal electrodes. It is observed that the charge carried by the droplet changes by integral amounts within an accuracy of about 1 part in $10^{5}$.
Show that the Millikan oil-drop experiment leads us to believe that $y$ is less than about $10^{-16}$.

Vidhi Bhatt
Vidhi Bhatt
Numerade Educator
04:58

Problem 16

The volume average of $\boldsymbol{E}$ over a spherical volume is equal to the value of $\boldsymbol{E}$ at the center. An alternative proof.
We know that the force exerted by a uniform spherical charge distribution on an outside charge is the same as if the spherical charge were concentrated at its center.
(a) Use this fact to show that the field of a point charge is such that its volume average over a sphere is equal to its value at the center.
(b) Show that the same applies to any electrostatic field in a charge-free region.

Manish Kumar ( Iit K )
Manish Kumar ( Iit K )
Numerade Educator
