Electromagnetic Fields and Waves: Including Electric Circuits

Paul Lorrain, Dale R. Corson

Chapter 6

Electric Fields Iv - all with Video Answers

Educators


Chapter Questions

02:44

Problem 1

The dipole and the qua?rupole
Calculate the potential energies of an electric dipole and of an electric quadrupole.

Sachin Rao
Sachin Rao
Numerade Educator
02:41

Problem 2

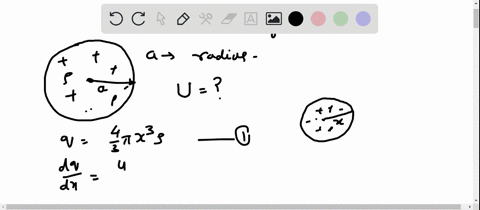

The potential energy of a sphere of charge
(a) Calculate the electric potential energy of a sphere of radius $R$ carrying a total charge $Q$ uniformly distributed throughout its volume.
(b) Calculate the gravitational potential energy of a sphere of radius $R^{\prime}$ and total mass $M$.
(c) Calculate the gravitational potential energy of the moon. See The Table of Physical Constants at the end of the book.
(d) Imagine that you can assemble a sphere of protons with a density equal to that of water. What would be the radius of this sphere if its electric potential energy were sufficient to blow up the moon?
(e) What is the voltage at the surface of the sphere of protons?

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
19:43

Problem 3

The energy in the field of a sphere of charge
A sphere of radius $R$ contains a charge $Q$, uniformly distributed throughout its volume. Calculate (a) the energy, (b) the energy stored in the field inside the sphere, and (c) the energy stored in the field outside the sphere. There is five times more energy outside than inside.

Linda Winkler
Linda Winkler
Numerade Educator
View

Problem 4

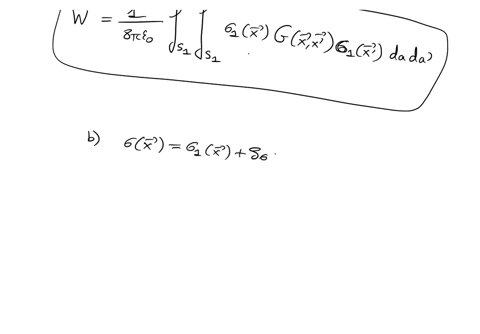

The reciprocity theorem for electrostatics
Consider a set of $n$ conductors of arbitrary sizes, shapes, and positions. Conductors $1,2,3, \ldots$ carry charges $Q_{1}, Q_{2}, Q_{3}, \ldots$, and their voltages are $V_{1}, V_{2}, V_{3}, \ldots$. Without disturbing the conductors, you change the charges to $Q_{1}^{\prime}, Q_{2}^{\prime}, Q_{3}^{\prime}$.
According to the reciprocity theorem for electrostatics,
$$
Q_{1} V_{1}^{\prime}+Q_{2} V_{2}^{\prime}+Q_{3} V_{3}^{\prime}+\cdots=Q_{1}^{\prime} V_{1}+Q_{2}^{\prime} V_{2}+Q_{3}^{\prime} V_{3}+\cdots
$$
or
$$
\sum Q V^{\prime}=\sum Q^{\prime} V
$$
We shall find analogous reciprocity theorems in Chaps. 8 and 27 .
You can prove this theorem by calculating the energy required to change the charges from $Q$ to $Q^{\prime}$ and equating this energy to $\Sigma Q^{\prime} V^{\prime} / 2-\Sigma Q V / 2$. To do this, set the charge and voltage on conductor 1 equal to $(1-x) Q_{1}+$ $x Q_{1}^{\prime}$ and $(1-x) V_{1}+x V_{1}^{\prime}$. Then you can go from one state to the other by letting $x$ go from zero to unity.

AP
Andreas Papavassiliou
Numerade Educator
02:08

Problem 5

Cylindrical capacitor
(a) Show that the capacitance per unit length of a cylindrical capacitor is $C^{\prime}=2 \pi \epsilon_{0} / \ln \left(R_{2} / R_{1}\right)$, where $R_{1}$ and $R_{2}$ are the inner and outer radii.
(b) Calculate the capacitance per meter when $R_{2} / R_{1}=e=2.718$.

Himanshu Kushwaha
Himanshu Kushwaha
Numerade Educator
01:45

Problem 6

Spherical capacitor
(a) Show that the capacitance of a spherical capacitor of inner and outer radii $R_{1}$ and $R_{2}$ is
$$
C=\frac{4 \pi \epsilon_{0} R_{1} R_{2}}{R_{2}-R_{1}}
$$
(b) Calculate the capacitance when $R_{1}=100$ millimeters and $R_{2}=$ 200 millimeters.

Ajay Singhal
Ajay Singhal
Numerade Educator
00:48

Problem 7

Two capacitors $C_{1}$ and $C_{2}$ are charged to voltages $V_{1}$ and $V_{2}$, respectively, and then connected in parallel, positive terminal to positive terminal and negative to negative.
(a) What is the final voltage?
(b) What happens to the stored energy?

Prem Bijarniya
Prem Bijarniya
Numerade Educator
02:29

Problem 8

(a) Use the method of Sec. 6.5.1 to calculate the force of attraction between two charges $Q$ and $-Q$ separated by a distance $2 D$.
(b) Repeat the calculation for two charges of equal sign.

Nicholas Majtenyi
Nicholas Majtenyi
Numerade Educator
01:45

Problem 9

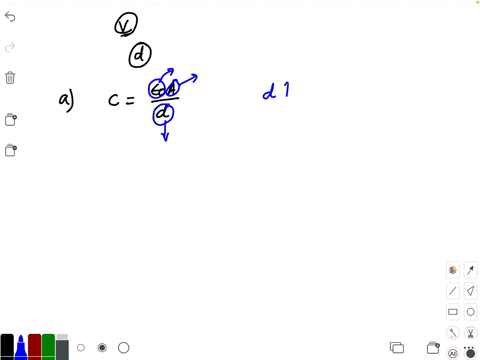

Imagine the following mechanism for generating high voltages. One plate of a parallel-plate capacitor is fixed and connected to ground. The other plate is movable. When the plates are close together at a distance $s$, a contact closes and the movable plate charges to the voltage $V$. Then the contact opens, the movable plate moves out to a distance $n s$, and its voltage increases to $n V$, disregarding edge effects. At this point another contact closes, and the movable plate discharges to ground through a load resistance $R$
(a) Verify that there is conservation of energy.
(b) Can you suggest a more convenient geometry for such a high-voltage generator?

Ajay Singhal
Ajay Singhal
Numerade Educator
05:45

Problem 10

It is suggested that a balloon made of light conducting material could be kept approximately spherical by connecting it to a high-voltage supply. The balloon has a diameter of 100 millimeters, and the maximum breakdown field in air is 3 megavolts/meter.
(a) What is the maximum permissible voltage?
(b) What gas pressure, in atmospheres, inside the balloon would have the same effect?
(c) How large could the surface mass density of the balloon be?

Luis Rios
Luis Rios
Numerade Educator
03:28

Problem 11

Four charges $+Q,-Q,+Q,-Q$ occupy the corners of a square of side $a$, with the positive charges on one diagonal and the negative charges on the other.
(a) Calculate the stored energy $\mathscr{8}$, and sketch a curve of $\mathscr{E}$ as a function of $a$.
(b) A mechanism constrains the charges to stay at the corners of a square but allows $a$ to vary. What will happen?
(c) Calculate the forces on the charges by the method of virtual work.
(d) Compare with the values deduced from Coulomb's law.

Ben Nicholson
Ben Nicholson
Numerade Educator
02:47

Problem 12

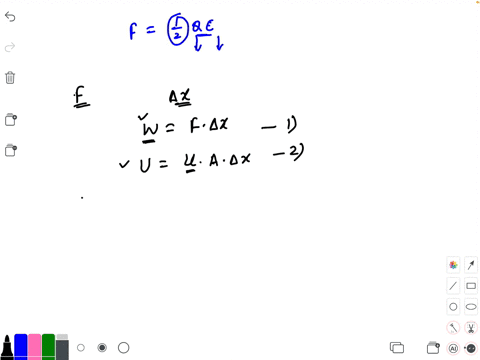

Show that the force of attraction between the plates of a parallel-plate capacitor that is not connected to a battery is $\epsilon_{0} E^{2} \mathscr{A} / 2$, as in Sec. 6.6.

Ajay Singhal
Ajay Singhal
Numerade Educator
05:56

Problem 13

Half the battery energy becomes mechanical work, and the other half is stored in the electric field.
Rewrite Eq. 6-32 in the form $\mathscr{E}_{B}=\mathscr{E}_{E}-\mathscr{E}_{F}$, and show that, if $d s$ is negative, one-half of the energy supplied by the battery becomes electric energy, while the other half performs mechanical work.
