Chapter 15, Electrons in a Periodic Potential Video Solutions, The Oxford Solid State Basics

Problem 1

†Nearly Free Electron Model
Consider an electron in a weak periodic potential in one dimension $V(x)=V(x+a)$. Write the periodic potential as
$$
V(x)=\sum_{G} e^{i G x} V_{G}
$$
where the sum is over the reciprocal lattice $G=$ $2 \pi n / a$, and $V_{G}^{*}=V_{-G}$ assures that the potential $V(x)$ is real.
(a) Explain why for $k$ near to a Brillouin zone boundary (such as $k$ near $\pi / a$ ) the electron wavefunction should be taken to be
$$
\psi=A e^{i k x}+B e^{i(k+G) x}
$$
where $G$ is a reciprocal lattice vector such that $|k|$ is close to $|k+G|$.
(b) For an electron of mass $m$ with $k$ exactly at a zone boundary, use the above form of the wavefunction to show that the eigenenergies at this wavevector are
$$
E=\frac{\hbar^{2} k^{2}}{2 m}+V_{0} \pm\left|V_{G}\right|
$$
where $G$ is chosen so $|k|=|k+G|$.
$D$ Give a qualitative explanation of why these two states are separated in energy by $2\left|V_{G}\right|$.
D. Give a sketch (don't do a full calculation) of the energy as a function of $k$ in both the extended and the reduced zone schemes.

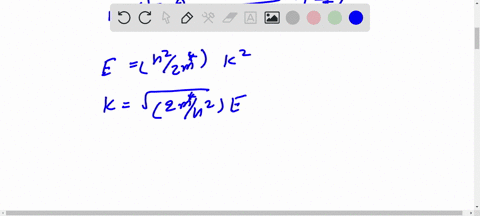

(c) ${ }^{*}$ Now consider $k$ close to, but not exactly at, the zone boundary. Give an expression for the energy $E(k)$ correct to order $(\delta k)^{2}$ where $\delta k$ is the wavevector difference from $k$ to the zone boundary wavevector.
$\triangleright$ Calculate the effective mass of an electron at this wavevector.
