Fundamentals of Fluid Mechanics

Bruce R. Munson, Theodore H. Okiishi, Wade W. Huebsch

Chapter 5

Finite Control Volume Analysis - all with Video Answers

Educators

+ 4 more educators

Chapter Questions

View

Problem 1

Use the Reynolds transport theorem (Eq. 4.19) with $B=$ volume and, therefore, $b=$ volume/mass $=$ I/density to obtain the continuity equation for steady or unsteady incompressible flow through a fixed control volume: $\int_{\mathrm{cv}} \mathbf{V} \cdot \hat{\mathbf{n}} d A=0$

Victor Salazar
Victor Salazar
Numerade Educator
05:20

Problem 2

An incompressible fluid flows horizontally in the $x-y$ plane with a velocity given by
\[
u=30(y / h)^{1 / 2} \mathrm{m} / \mathrm{s}, \mathrm{v}=0
\]
where $y$ and $h$ are in meters and $h$ is a constant. Determine the average velocity for the portion of the flow between $y=0$ and $y=h$

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
View

Problem 3

Water flows steadily through the horizontal piping system shown in Fig. P5.3. The velocity is uniform at section (1), the mass flowrate is 10 slugs/s at section $(2),$ and the velocity is nonuniform
at section (3)
(a) Determine the value of the quantity $\frac{D}{D t} \int_{\sin } \rho d \Psi$ where the system is the water contained in the pipe bounded by sections $(1),(2),$ and (3)
(b) Determine the mean velocity at section (2)
(c) Determine, if possible, the value of the integral $\int \rho V \cdot \hat{\mathbf{n}} d A$ over section $(3) .$ If it is not possible, explain what additional information is needed to do so.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 4

Water flows out through a set of thin, closely spaced blades as shown in Fig. P5.4 with a speed of $V=10 \mathrm{ft} / \mathrm{s}$ around the entire circumference of the outlet. Determine the mass flowrate through the inlet pipe.

Victor Salazar
Victor Salazar
Numerade Educator
10:06

Problem 5

Estimate the rate (in gal/hr) that your car uses gasoline when it is being driven on an interstate highway. Determine how long it would take to empty a 12 -oz soft-drink container at this flowrate. List all assumptions and show calculations.

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
01:13

Problem 6

The pump shown in Fig. P5.6 produces a steady flow of 10 gal/s through the nozzle. Determine the nozzle exit diameter, $D_{2},$ if the exit velocity is to be $V_{2}=100 \mathrm{ft} / \mathrm{s}$

Penny Riley
Penny Riley
Numerade Educator
View

Problem 7

Water flows into a sink as shown in Video $\mathrm{V} 5.1$ and Fig. $\mathrm{P} 5.7$ at a rate of $2 \mathrm{gal} / \mathrm{min}$. Determine the average velocity through each of the three 0.4 -in.-diameter overflow holes if the drain is closed and the water level in the sink remains constant.

Victor Salazar
Victor Salazar
Numerade Educator
01:19

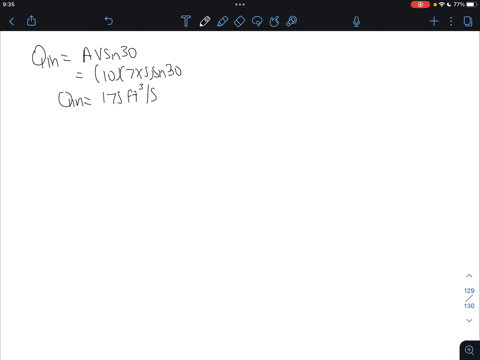

Problem 8

The wind blows through a $7 \mathrm{ft} \times 10 \mathrm{ft}$ garage door opening with a speed of $5 \mathrm{ft} / \mathrm{s}$ as shown in Fig. $\mathrm{P} 5.8 .$ Determine the average speed, $V,$ of the air through the two $3 \mathrm{ft} \times 4 \mathrm{ft}$ openings in the windows.

Penny Riley
Penny Riley
Numerade Educator
View

Problem 9

The human circulatory system consists of a complex branching pipe network ranging in diameter from the aorta (largest) to the capillaries (smallest). The average radii and the number of these vessels are shown in the table, Does the average blood velocity increase, decrease, or remain constant as it travels from the aorta to the capillaries?
$$\begin{array}{lcc}
\hline \text { Vessel } & \text { Average Radius, mm } & \text { Number } \\
\hline \text { Aorta } & 12.5 & 1 \\
\text { Arteries } & 2.0 & 159 \\
\text { Arterioles } & 0.03 & 1.4 \times 10^{2} \\
\text { Capillaries } & 0.006 & 3.9 \times 10^{9} \\
\hline
\end{array}$$

Victor Salazar
Victor Salazar
Numerade Educator
01:25

Problem 10

Air flows steadily between two cross sections in a long. straight section of 0.1 -m-inside-diameter pipe. The static temperature and pressure at each section are indicated in Fig. P5.10. If the average air velocity at section (1) is $205 \mathrm{m} / \mathrm{s}$, determine the average air velocity at section (2)

Penny Riley
Penny Riley
Numerade Educator
View

Problem 11

A hydraulic jump (see Video $\vee 10.11$ ) is in place downstream from a spillway as indicated in Fig. P5.11. Upstream of the jump, the depth of the stream is $0.6 \mathrm{ft}$ and the average stream velocity is $18 \mathrm{ft} / \mathrm{s}$, Just downstream of the jump, the average stream velocity is $3.4 \mathrm{ft} / \mathrm{s}$. Calculate the depth of the stream, $h$, just downstreum of the jump.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 12

Water enters a rigid, sealed, cylindrical tank at a steady rate of 100 liters/hr and forces gasoline $(S G=0.68)$ out as is indicated in Fig. PS.12. What is the time rate of change of mass of gasoline contained in the tank?

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 13

An evaporative cooling tower (see Fig. $\mathrm{P} 5.13$ ) is used to cool water from 110 to $80^{\circ} \mathrm{F}$. Water enters the tower at a rate of $250,000 \mathrm{lbm} / \mathrm{hr} .$ Dry air (no water vapor) flows into the tower at a rate of 151,000 lbm/hr. If the rate of wet airflow out of the tower is $156,900 \mathrm{lbm} / \mathrm{hr},$ determine the rate of water evaporation in $\mathrm{lbm} / \mathrm{hr}$ and the rate of cooled water flow in $16 \mathrm{m} / \mathrm{hr}$.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 14

At cruise conditions, air flows into a jet engine at a steady rate of $65 \mathrm{lbm} / \mathrm{s}$. Fuel enters the engine at a steady rate of $0.60 \mathrm{lbm} / \mathrm{s}$. The average velocity of the exhaust gases is $1500 \mathrm{ft} / \mathrm{s}$ relative to the engine. If the engine exhaust effective cross-sectional area is $3.5 \mathrm{ft}^{2}$, estimate the density of the exhaust gases in $1 \mathrm{bm} / \mathrm{ft}^{3}$

Victor Salazar
Victor Salazar
Numerade Educator
04:22

Problem 15

Water at $0.1 \mathrm{m}^{3} / \mathrm{s}$ and alcohol $(S G=0.8)$ at $0.3 \mathrm{m}^{3} / \mathrm{s}$ are mixed in a $y$ -duct as shown in Fig. $5.15 .$ What is the average density of the mixture of alcohol and water?

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
01:33

Problem 16

Oil having a specific gravity of 0.9 is pumped as illustrated in Fig. P5.16 with a water jet pump. The water volume flowrate is 1 $\mathrm{m}^{3} / \mathrm{s} .$ The water and oil mixture has an average specific gravity of $0.95 .$ Calculate the rate, in $\mathrm{m}^{3} / \mathrm{s}$, at which the pump moves oil.

Penny Riley
Penny Riley
Numerade Educator
02:03

Problem 17

Fresh water flows steadily into an open 55 -gal drum initially filled with seawater. The fresh water mixes thoroughly with the seawater, and the mixture overflows out of the drum. If the fresh water flowrate is 10 gal/min, estimate the time in seconds required to decrease the difference between the density of the mixture and the density of fresh water by $50 \%$

Penny Riley
Penny Riley
Numerade Educator
View

Problem 18

A water jet pump (see Fig. $\mathrm{P} 5.18$ ) involves a jet crosssectional area of $0.01 \mathrm{m}^{2},$ and a jet velocity of $30 \mathrm{m} / \mathrm{s}$. The jet is surrounded by entrained water. The total cross-sectional area associated with the jet and entrained streams is $0.075 \mathrm{m}^{2} .$ These two fluid streams leave the pump thoroughly mixed with an average velocity of $6 \mathrm{m} / \mathrm{s}$ through a cross-sectional area of $0.075 \mathrm{m}^{2}$. Determine the pumping rate (i.e., the entrained fluid flowrate) involved in liters/s.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 19

To measure the mass flowrate of air through a 6 -in.-insidediameter pipe, local velocity data are collected at different radii from the pipe axis (see Table). Determine the mass flowrate corresponding to the data listed in the following table.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 20

Two rivers merge to form a larger river as shown in Fig. $P 5.20 .$ At a location downstream from the junction (before the two streams completely merge), the nonuniform velocity profile is as shown and the depth is $6 \mathrm{ft}$. Determine the value of $V$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 21

Various types of attachments can be used with the shop vac shown in Video $V 5.2 .$ Two such attachments are shown in Fig. $\mathrm{P} 5.21-$ a nozzle and a brush. The flowrate is $1 \mathrm{ft}^{3} / \mathrm{s}$. (a) Determine the average velocity through the nozzle entrance, $V_{n}$. (b) Assume the air enters the brush attachment in a radial direction all around the brush with a velocity profile that varies linearly from 0 to $V_{b}$ along the length of the bristles as shown in the figure. Determine the value of $V_{b}$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 22

An appropriate turbulent pipe flow velocity profile is
\[
\mathbf{V}=u_{c}\left(\frac{R-r}{R}\right)^{1 / n} \hat{\mathbf{i}}
\]
where $u_{c}=$ centerline velocity, $r=$ local radius, $R=$ pipe radius, and $\mathbf{i}=$ unit vector along pipe centerline. Determine the ratio of average velocity, $\bar{u},$ to centerline velocity, $u_{c},$ for $(\text { a }) n=4,$ (b) $n=6$ (c) $n=8$ (d) $n=10 .$ Compare the different velocity profiles.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 23

As shown in Fig. $\mathrm{P} 5.23,$ at the entrance to a 3 -ft-wide channel the velocity distribution is uniform with a velocity $V$. Further downstream the velocity profile is given by $u=4 y-2 y^{2},$ where $u$ is in $\mathrm{ft} / \mathrm{s}$ and $y$ is in $\mathrm{ft}$. Determine the value of $V$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 24

An incompressible flow velocity field (water) is given as
\[
\mathbf{V}=-\frac{1}{r} \hat{\mathbf{e}}_{r}+\frac{1}{r} \hat{\mathbf{e}}_{0} \mathrm{m} / \mathrm{s}
\]
where $r$ is in meters. (a) Calculate the mass flowrate through the cylindrical surface at $r=1 \mathrm{m}$ from $z=0$ to $z=1 \mathrm{m}$ as shown in Fig. $P 5.24 a .$ (b) Show that mass is conserved in the annular control volume from $r=1 \mathrm{m}$ to $r=2 \mathrm{m}$ and $z=0$ to $z=1 \mathrm{m}$ as shown in Fig. $\mathrm{P} 5.24 b$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 25

Flow of a viscous fluid over a flat plate surface results in the development of a region of reduced velocity adjacent to the wetted surface as depicted in Fig. P5.25. This region of reduced flow is called a boundary layer. At the leading edge of the plate, the velocity profile may be considered uniformly distributed with a value $U$ All along the outer edge of the boundary layer, the fluid velocity component parallel to the plate surface is also $U$. If the $x$ -direction velocity profile at section (2) is
\[
\frac{u}{U}=\left(\frac{y}{\delta}\right)^{1 / 7}
\]
develop an expression for the volume flowrate through the edge of the boundary layer from the leading edge to a location downstream at $x$ where the boundary layer thickness is $\delta$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 26

Air at standard conditions enters the compressor shown in Fig. $P 5.26$ at a rate of $10 \mathrm{ft}^{3} / \mathrm{s}$. It leaves the tank through a 1.2 -in. diameter pipe with a density of 0.0035 slugs/ft $^{3}$ and a uniform speed of $700 \mathrm{ft} / \mathrm{s}$
(a) Determine the rate (slugs/s) at which the mass of air in the tank is increasing or decreasing.
(b) Determine the average time rate of change of air density within the tank.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 27

Estimate the time required to fill with water a cone-shaped container (see Fig. $P 5.27$ ) 5 ft high and 5 ft across at the top if the filling rate is 20 gal/min.

Victor Salazar
Victor Salazar
Numerade Educator
02:01

Problem 28

How long would it take to fill a cylindrical-shaped swimming pool having a diameter of $8 \mathrm{m}$ to a depth of $1.5 \mathrm{m}$ with water from a garden hose if the flowrate is 1.0 liter/s?

Supratim Pal
Supratim Pal
Numerade Educator
View

Problem 29

For an automobile moving along a highway, describe the control volume you would use to estimate the flowrate of air across the radiator. Explain how you would estimate the velocity of that air.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 30

A hypodermic syringe (see Fig. $\mathrm{P} 5.30$ ) is used to apply a vaccine. If the plunger is moved forward at the steady rate of $20 \mathrm{mm} / \mathrm{s}$ and if vaccine leaks past the plunger at 0.1 of the volume flowrate out the needle opening, calculate the average velocity of the needle exit flow. The inside diameters of the syringe and the needle are $20 \mathrm{mm}$ and $0.7 \mathrm{mm}$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 31

The Hoover Dam (see Video $V 2.4$ ) backs up the Colorado River and creates Lake Mead, which is approximately 115 miles long and has a surface area of approximately 225 square miles. If during flood conditions the Colorado River flows into the lake at a rate of 45,000 cfs and the outflow from the dam is 8000 cfs, how many feet per 24 -hour day will the lake level rise?

Victor Salazar
Victor Salazar
Numerade Educator
01:26

Problem 32

Storm sewer backup causes your basement to flood at the steady rate of 1 in. of depth per hour. The basement floor area is $1500 \mathrm{ft}^{2} .$ What capacity (gal/min) pump would you rent to (a) keep the water accumulated in your basement at a constant level until the storm sewer is blocked off, and
(b) reduce the water accumulation in your basement at a rate of 3 in./hr even while the backup problem exists?

Penny Riley
Penny Riley
Numerade Educator
View

Problem 33

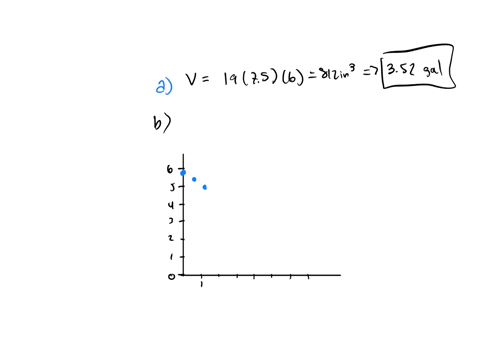

(See Fluids in the News article "New 1.6 -gpf $\operatorname{standards"}$ Section $5.1 .2 .)$ When a toilet is flushed, the water depth, $h$ in the tank as a function of time, $t,$ is as given in the table. The size
(a) Determine the volume of the rectangular tank is 19 in. by 7.5 in. of water used per flush, gpf.
(b) Plot the flowrate for $0 \leq t \leq 6$ s.
$$\begin{array}{ll}
t(\mathrm{s}) & h \text { (in.) } \\
\hline 0 & 5.70 \\
0.5 & 5.33 \\
1.0 & 4.80 \\
2.0 & 3.45 \\
3.0 & 2.40 \\
4.0 & 1.50 \\
5.0 & 0.75 \\
6.0 & 0
\end{array}$$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 34

A fluid flows steadily in the $x$ direction through a control volume. Measurements indicate that to cause this flow the force acting on the contents of the control volume is $120 \mathrm{N}$ in the negative $x$ direction. Determine the net rate of flow of linear momentum through the control surface.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 35

Consider the unsteady flow of a fluid in the $x$ direction through a control volume. The linear momentum of the fluid within the control volume is a function of time given by $200 t \hat{\mathbf{i}}$ slug $\cdot \mathrm{ft} / \mathrm{s},$ where $t$ is in seconds and $\hat{\mathbf{i}}$ is a unit vector in the $x$ direction. Measurements indicate that to cause this flow the force acting on the contents of the control volume is $40 \hat{\mathbf{i}} 1 \mathrm{b}$ Determine the net rate of flow of linear momentum through the control surface.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 36

A 10 -mm-diameter jet of water is deflected by a homogeneous rectangular block $(15 \mathrm{mm} \text { by } 200 \mathrm{mm} \text { by } 100 \mathrm{mm})$ that weighs $6 \mathrm{N}$ as shown in Video $\mathrm{V} 5.6$ and Fig. $\mathrm{P} 5.36 .$ Determine the minimum volume flowrate needed to tip the block.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 37

When a baseball player catches a ball, the force of the ball on her glove is as shown as a function of time in Fig. P5.37. Describe how this situation is similar to the force generated by the deflection of a jet of water by a vane. Note: Consider many baseballs being caught in quick succession.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 38

Determine the anchoring force required to hold in place the conical nozzle attached to the end of the laboratory sink faucet shown in Fig. $\mathrm{P} 5.38$ when the water flowrate is 10 gal/min. The nozzle weight is $0.2 \mathrm{lb}$. The nozzle inlet and exit inside diameters are 0.6 and 0.2 in., respectively. The nozzle axis is vertical, and the axial distance between sections (1) and (2) is 1.2 in. The pressure at section (1) is 68 psi.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 39

Water flows through a horizontal, $180^{\circ}$ pipe bend as is illustrated in Fig. P5.39. The flow cross-sectional area is constant at a value of $9000 \mathrm{mm}^{2}$. The flow velocity everywhere in the bend is $15 \mathrm{m} / \mathrm{s}$. The pressures at the entrance and exit of the bend are 210 and $165 \mathrm{kPa}$, respectively. Calculate the horizontal ( $x$ and $y$ ) components of the anchoring force needed to hold the bend in place.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 40

Water flows through a horizontal bend and discharges into the atmosphere as shown in Fig. P5.40. When the pressure gage reads 10 psi, the resultant $x$ -direction anchoring force, $F_{A r}$ in the horizontal plane required to hold the bend in place is shown on the figure. Determine the flowrate through the bend and the $y$ -direction anchoring force, $F_{h},$ required to hold the bend in place. The flow is not frictionless.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 41

A free jet of fluid strikes a wedge as shown in Fig. P5.41. Of the total flow, a portion is deflected $30^{\circ} ;$ the remainder is not deflected. The horizontal and vertical components of force needed to hold the wedge stationary are $F_{H}$ and $F_{V}$, respectively. Gravity is negligible, and the fluid speed remains constant. Determine the force ratio, $F_{H} / F_{V}$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 42

Water enters the horizontal, circular cross-sectional, sudden contraction nozzle sketched in Fig. $\mathrm{P} 5.42$ at section (1) with a uniformly distributed velocity of $25 \mathrm{ft} / \mathrm{s}$ and a pressure of 75 psi. The water exits from the nozzle into the atmosphere at section (2) where the uniformly distributed velocity is $100 \mathrm{ft} / \mathrm{s}$. Determine the axial component of the anchoring force required to hold the contraction in place.

Susan Hallstrom
Susan Hallstrom
Numerade Educator
02:02

Problem 43

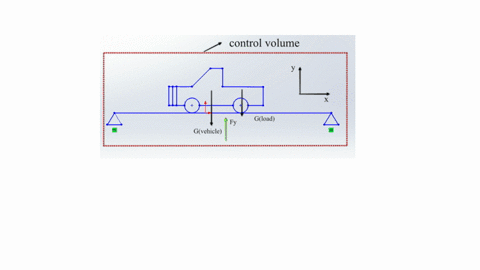

A truck carrying chickens is too heavy for a bridge that it needs to cross. The empty truck is within the weight limits; with the chickens it is overweight. It is suggested that if one could get the chickens to fly around the truck (i.e., by banging on the truck side it would be safe to cross the bridge. Do you agree? Explain.

James Kiss
James Kiss
Numerade Educator
02:59

Problem 44

Exhaust (assumed to have the properties of standard air) leaves the 4 -ft-diameter chimney shown in Video $\mathrm{V} 5.4$ and Fig. $P 5.44$ with a speed of $6 \mathrm{ft} / \mathrm{s}$. Because of the wind, after a few diameters downstream the exhaust flows in a horizontal direction with the speed of the wind, 15 ft/s. Determine the horizontal component of the force that the blowing wind exerts on the exhaust gases.

James Kiss
James Kiss
Numerade Educator
View

Problem 45

Air flows steadily between two cross sections in a long, straight section on 12 -in.-inside-diameter pipe. The static temperature and pressure at each section are indicated in Fig P5.45. If the average air velocity at section (2) is $320 \mathrm{m} / \mathrm{s}$, determine the average air velocity at section (1). Determine the frictional force exerted by the pipe wall on the air flowing between sections (1) and (2). Assume uniform velocity distributions at each section.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 46

Water flows steadily from a tank mounted on a cart as shown in Fig. $5.46 .$ After the water jet leaves the nozzle of the tank, it falls and strikes a vane attached to another cart. The cart's wheels are frictionless, and the fluid is inviscid. (a) Determine the speed of the water leaving the tank, $V_{1}$, and the water speed leaving the 1, cart, $V_{2}$ (b) Determine the tension in rope $A$ (c) Determine the tension in rope $B$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 47

Determine the magnitude and direction of the anchoring force needed to hold the horizontal elbow and nozzle combination shown in Fig. $\mathrm{P} 5.47$ in place. Atmospheric pressure is 100 $\mathrm{kPa}(\mathrm{abs}) .$ The gage pressure at section (1) is $100 \mathrm{kPa}$. At section (2), the water exits to the atmosphere.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 48

Water is added to the tank shown in Fig. P5.48 through a vertical pipe to maintain a constant (water) level. The tank is placed on a horizontal plane which has a frictionless surface. Determine the horizontal force, $F$, required to hold the tank stationary. Neglect all losses.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 49

Water flows as two free jets from the tee attached to the pipe shown in Fig. P5.49. The exit speed is $15 \mathrm{m} / \mathrm{s}$. If viscous effects and gravity are negligible, determine the $x$ and $y$ components of the force that the pipe exerts on the tee.

Victor Salazar
Victor Salazar
Numerade Educator
01:40

Problem 50

A nozzle is attached to a vertical pipe and discharges water into the atmosphere as shown in Fig. P5.50. When the discharge is $0.1 \mathrm{m}^{3} / \mathrm{s},$ the gage pressure at the flange is $40 \mathrm{kPa}$. Determine the vertical component of the anchoring force required to hold the nozzle in place. The nozzle has a weight of $200 \mathrm{N}$, and the volume of water in the nozzle is $0.012 \mathrm{m}^{3}$. Is the anchoring force directed upward or downward?

Penny Riley
Penny Riley
Numerade Educator
View

Problem 51

The hydraulic dredge shown in Fig. P5.51 is used to dredge sand from a river bottom. Estimate the thrust needed from the propeller to hold the boat stationary. Assume the specific gravity of the sand/water mixture is $S G=1.4$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 52

A static thrust stand is to be designed for testing a specific jet engine, knowing the following conditions for a typical test.
\[
\begin{aligned}
\text { intake air velocity } &=700 \mathrm{ft} / \mathrm{s} \\
\text { exhaust gas velocity } &=1640 \mathrm{ft} / \mathrm{s} \\
\text { intake cross section area } &=10 \mathrm{ft}^{2} \\
\text { intake static pressure } &=11.4 \mathrm{psia} \\
\text { intake static temperature } &=480^{\circ} \mathrm{R} \\
\text { exhaust gas pressure } &=0 \mathrm{psi}
\end{aligned}
\]
estimate a nominal thrust to design for.

Victor Salazar
Victor Salazar
Numerade Educator
01:15

Problem 53

A vertical jet of water leaves a nozzle at a speed of $10 \mathrm{m} / \mathrm{s}$ and a diameter of $20 \mathrm{mm}$. It suspends a plate having a mass of 1.5 kg as indicated in Fig. P5.53. What is the vertical distance $h ?$

Penny Riley
Penny Riley
Numerade Educator
View

Problem 54

A horizontal, circular cross-sectional jet of air having a diameter of 6 in. strikes a conical deflector as shown in Fig. P5.54. A horizontal anchoring force of 5 lb is required to hold the cone in place. Estimate the nozzle flowrate in $\mathrm{ft}^{3} / \mathrm{s}$. The magnitude of the velocity of the air remains constant.

Victor Salazar
Victor Salazar
Numerade Educator
01:47

Problem 55

A vertical, circular cross-sectional jet of air strikes a conical deflector as indicated in Fig. P5.55. A vertical anchoring force of $0.1 \mathrm{N}$ is required to hold the deflector in place. Determine the mass (kg) of the deflector. The magnitude of velocity of the air remains constant.

Anand Jangid
Anand Jangid
Numerade Educator
01:56

Problem 56

A vertical jet of water having a nozzle exit velocity of $15 \mathrm{ft} / \mathrm{s}$ with a diameter of 1 in. suspends a hollow hemisphere as indicated in Fig. P5.56. If the hemisphere is stationary at an elevation of 12 in., determine its weight.

Kratika Bhadauria
Kratika Bhadauria
Numerade Educator
View

Problem 57

Air flows into the atmosphere from a nozzle and strikes a vertical plate as shown in Fig. P5.57. A horizontal force of $12 \mathrm{N}$ is required to hold the plate in place. Determine the reading on the pressure gage. Assume the flow to be incompressible and frictionless.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 58

Water flows from a large tank into a dish as shown in Fig. P5.58. (a) If at the instant shown the tank and the water in it weigh $W_{1}$ Ib, what is the tension, $T_{1},$ in the cable supporting the $\operatorname{tank} ?(\mathbf{b})$ If at the instant shown the dish and the water in it weigh $W_{2}$ Ib, what is the force, $F_{2}$, needed to support the dish?

Victor Salazar
Victor Salazar
Numerade Educator
03:02

Problem 59

Two water jets of equal size and speed strike each other as shown in Fig. P5.59. Determine the speed, $V$, and direction, $\theta$, of the resulting combined jet. Gravity is negligible.

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
View

Problem 60

Assuming frictionless, incompressible, one-dimensional flow of water through the horizontal tee connection sketched in Fig. $P 5.60,$ estimate values of the $x$ and $y$ components of the force exerted by the tee on the water. Each pipe has an inside diameter of $1 \mathrm{m}$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 61

Water discharges into the atmosphere through the device shown in Fig. P5.61. Determine the $x$ component of force at the flange required to hold the device in place. Neglect the effect of gravity and friction.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 62

Determine the magnitude of the horizontal component of the anchoring force required to hold in place the sluice gate shown in Fig. $5.62 .$ Compare this result with the size of the horizontal component of the anchoring force required to hold in place the sluice gate when it is closed and the depth of water upstream is $10 \mathrm{ft}$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 63

Water flows steadily into and out of a tank that sits on frictionless wheels as shown in Fig. P5.63. Determine the diameter $D$ so that the tank remains motionless if $F=0$

James Kiss
James Kiss
Numerade Educator
00:59

Problem 64

The rocket shown in Fig. P5.64, is held stationary by the horizontal force, $F_{x},$ and the vertical force, $F_{z}$. The velocity and pressure of the exhaust gas are $5000 \mathrm{ft} / \mathrm{s}$ and 20 psia at the nozzle exit, which has a cross section area of 60 in. $^{2}$. The exhaust mass flowrate is constant at $21 \mathrm{lbm} / \mathrm{s}$. Determine the value of the restraining force $F_{x}$. Assume the exhaust flow is essentially horizontal.

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
02:00

Problem 65

A horizontal circular jet of air strikes a stationary flat plate as indicated in Fig. P5.65. The jet velocity is $40 \mathrm{m} / \mathrm{s}$ and the jet diameter is $30 \mathrm{mm}$. If the air velocity magnitude remains constant as the air flows over the plate surface in the directions shown, determine: (a) the magnitude of $F_{A},$ the anchoring force required to hold the plate stationary; (b) the fraction of mass flow along the plate surface in each of the two directions shown; (c) the magnitude of $F_{A},$ the anchoring force required to allow the plate to move to the right at a constant speed of $10 \mathrm{m} / \mathrm{s}$

Nicholas Mogoi
Nicholas Mogoi
Numerade Educator
View

Problem 66

Air discharges from a 2 -in.-diameter nozzle and strikes a curved vane, which is in a vertical plane as shown in Fig. P5.66. A stagnation tube connected to a water U-tube manometer is located in the free air jet. Determine the horizontal component of the force that the air jet exerts on the vane. Neglect the weight of the air and all friction.

James Kiss
James Kiss
Numerade Educator
01:24

Problem 67

Water is sprayed radially outward over $180^{\circ}$ as indicated in Fig. $\mathrm{P} 5.67 .$ The jet sheet is in the horizontal plane. If the jet velocity at the nozzle exit is $20 \mathrm{ft} / \mathrm{s}$, determine the direction and magnitude of the resultant horizontal anchoring force required to hold the nozzle in place.

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
View

Problem 68

A sheet of water of uniform thickness $(h=0.01 \mathrm{m})$ flows from the device shown in Fig. P5.68. The water enters vertically through the inlet pipe and exits horizontally with a speed that varies linearly from 0 to $10 \mathrm{m} / \mathrm{s}$ along the 0.2-m length of the slit. Determine the $y$ component of anchoring force necessary to hold this device stationary.

James Kiss
James Kiss
Numerade Educator
View

Problem 69

The results of a wind tunnel test to determine the drag on a body (see Fig. $\mathrm{P} 5.69$ ) are summarized below. The upstream [section (1)] velocity is uniform at 100 fUs. The static pressures are given by $p_{1}=p_{2}=14.7$ psia. The downstream velocity distribution, which is symmetrical about the centerline, is given by
\[
\begin{array}{ll}
u=100-30\left(1-\frac{|y|}{3}\right) & |y| \leq 3 \mathrm{ft} \\
u=100 & |y|>3 \mathrm{ft}
\end{array}
\]
where $u$ is the velocity in $\mathrm{ft} / \mathrm{s}$ and $y$ is the distance on either side of the centerline in feet (see Fig. P5.69). Assume that the body shape does not change in the direction normal to the paper. Calculate the drag force (reaction force in $x$ direction) exerted on the air by the body per unit length normal to the plane of the sketch.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 70

A variable mesh screen produces a linear and axisymmetric velocity profile as indicated in Fig. $\mathrm{P} 5.70$ in the airflow through a 2 -ft-diameter circular cross-sectional duct. The static pressures upstream and downstream of the screen are 0.2 and 0.15 psi and are uniformly distributed over the flow cross-sectional area. Neglecting the force exerted by the duct wall on the flowing air, calculate the screen drag force.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 71

Consider unsteady flow in the constant diameter, horizontal pipe shown in Fig. P5.71. The velocity is uniform throughout the entire pipe, but it is a function of time: $\mathbf{V}=u(t)$ is the $x$ component of the unsteady momentum equation to determine the pressure difference $p_{1}-p_{2} .$ Discuss how this result is related to $F_{x}=m a_{r}$

James Kiss
James Kiss
Numerade Educator
View

Problem 72

In a laminar pipe flow that is fully developed, the axial velocity profile is parabolic. That is,
\[
u=u_{c}\left[1-\left(\frac{r}{R}\right)^{2}\right]
\]
as is illustrated in Fig. $\mathrm{P} 5.72 .$ Compare the axial direction momentum flowrate calculated with the average velocity, $\bar{u},$ with the axial direction momentum flowrate calculated with the nonuniform velocity distribution taken into account.

Victor Salazar
Victor Salazar
Numerade Educator
00:50

Problem 73

Water from a garden hose is sprayed against your car to rinse dirt from it. Estimate the force that the water exerts on the car. List all assumptions and show calculations.

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
01:42

Problem 74

A Pelton wheel vane directs a horizontal, circular cross-sectional jet of water symmetrically as indicated in Fig. $\mathrm{P} 5.74$ and Video V5.6. The jet leaves the nozzle with a velocity of 100 ft/s. Determine the $x$ -direction component of anchoring force required to (a) hold the vane stationary, (b) confine the speed of the vane to a value of $10 \mathrm{ft} / \mathrm{s}$ to the right. The fluid speed magnitude remains constant along the vane surface.

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
01:28

Problem 75

The thrust developed to propel the jet ski shown in Video $\mathrm{V} 9.18$ and Fig. $\mathrm{P} 5.75$ is a result of water pumped through the vehicle and exiting as a high-speed water jet. For the conditions shown in the figure, what flowrate is needed to produce a $300-1 b$ thrust? Assume the inlet and outlet jets of water are free jets.

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
03:39

Problem 76

Thrust vector control is a technique that can be used to greatly improve the maneuverability of military fighter aircraft. It consists of using a set of vanes in the exit of a jet engine to deflect
(a) Determine the pitchthe exhaust gases as shown in Fig. P5.76. ing moment (the moment tending to rotate the nose of the aircraft up) about the aircraft's mass center (cg) for the conditions indicated in the figure.
(b) By how much is the thrust (force along the centerline of the aircraft) reduced for the case indicated compared to normal flight when the exhaust is parallel to the centerline?

Rashmi Sinha
Rashmi Sinha
Numerade Educator
03:11

Problem 77

The exhaust gas from the rocket shown in Fig. $\mathrm{P} 5.77 a$ leaves the nozzle with a uniform velocity parallel to the $x$ axis. The gas is assumed to be discharged from the nozzle as a free jet.
(a) Show that the thrust that is developed is equal to $\rho A V^{2}$, where $A=\pi D^{2} / 4$.
(b) The exhaust gas from the rocket nozzle shown in Fig. $P 5.77 b$ is also uniform, but rather than being directed along the $x$ axis, it is directed along rays from point 0 as indicated. Determine the thrust for this rocket.

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
01:57

Problem 78

(See Fluids in the News article titled "Where the Plume goes," Section $5.2 .2 .$ ) Air flows into the jet engine shown in Fig. $P 5.78$ at a rate of 9 slugs/s and a speed of 300 ft/s. Upon landing, the engine exhaust exits through the reverse thrust mechanism with a speed of $900 \mathrm{ft} / \mathrm{s}$ in the direction indicated. Determine the reverse thrust applied by the engine to the airplane. Assume the inlet and exit pressures are atmospheric and that the mass flowrate of fuel is negligible compared to the air flowrate through the engine.

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
01:07

Problem 79

(See Fluids in the News article titled "Motorized Surfboard," Section 5.2.2.) The thrust to propel the powered surfboard shown in Fig. $\mathrm{P} 5.79$ is a result of water pumped through the board that exits as a high-speed 2.75 -in.-diameter jet. Determine the flowrate and the velocity of the exiting jet if the thrust is to be 300 Ib. Neglect the momentum of the water entering the pump.

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
00:43

Problem 80

(See Fluids in the News article titled "Bow Thrusters," Section $5.2 .2 .$ ) The bow thruster on the boat shown in Fig. P5.80 is used to turn the boat. The thruster produces a 1 -m-diameter jet of water with a velocity of $10 \mathrm{m} / \mathrm{s}$. Determine the force produced by the thruster. Assume that the inlet and outlet pressures are zero and that the momentum of the water entering the thruster is negligible.

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
02:31

Problem 81

Water flows from a two-dimensional open channel and is diverted by an inclined plate as illustrated in Fig. P5.81. When the velocity at section (1) is $10 \mathrm{ft} / \mathrm{s}$, what horizontal force (per unit width) is required to hold the plate in position? At section (1) the pressure distribution is hydrostatic, and the fluid acts as a free jet at section $(2)$. Neglect friction.

Narayan Hari
Narayan Hari
Numerade Educator
View

Problem 82

If a valve in a pipe is suddenly closed, a large pressure surge may develop. For example, when the electrically operated shutoff valve in a dishwasher closes quickly, the pipes supplying the dishwasher may rattle or "bang" because of this large pressure pulse. Explain the physical mechanism for this "water hammer" phenomenon. How could this phenomenon be analyzed?

James Kiss
James Kiss
Numerade Educator
View

Problem 83

A snowplow mounted on a truck clears a path $12 \mathrm{ft}$ through heavy wet snow, as shown in Figure P5.83. The snow is 8 in. deep and its density is $10 \mathrm{lbm} / \mathrm{ft}^{3}$. The truck travels at $30 \mathrm{mph}$. The snow is discharged from the plow at an angle of $45^{\circ}$ from the direction of travel and $45^{\circ}$ above the horizontal, as shown in Figure $\mathrm{P} 5.83 .$ Estimate the force required to push the plow.

James Kiss
James Kiss
Numerade Educator
01:00

Problem 84

Describe a few examples (include photographs/images) of turbines where the force/torque of a flowing fluid leads to rotation of a shaft.

James Kiss
James Kiss
Numerade Educator
01:14

Problem 85

Describe a few examples (include photographs/images) of pumps where a fluid is forced to move by "blades" mounted on a rotating shaft.

James Kiss
James Kiss
Numerade Educator
01:48

Problem 86

An incompressible fluid flows outward through a blower as indicated in Fig. $\mathrm{P} 5.86 .$ The shaft torque involved, $T_{\text {shaft }},$ is estimated with the following relationship:
\[
T_{\text {shaft }}=\dot{m} r_{2} V_{\theta 2}
\]
where $\dot{m}=$ mass flowrate through the blower, $r_{2}=$ outer radius of blower, and $V_{o 2}=$ tangential component of absolute fluid velocity leaving the blower. State the flow conditions that make this formula valid.

Narayan Hari
Narayan Hari
Numerade Educator
View

Problem 87

Water enters a rotating lawn sprinkler through its base at the steady rate of 16 gal/min as shown in Fig. P5.87. The exit cross-sectional area of each of the two nozzles is 0.04 in. $^{2}$, and the flow leaving each nozzle is tangential. The radius from the axis of rotation to the centerline of each nozzle is 8 in.
(a) Determine the resisting torque required to hold the sprinkler head stationary. Determine the resisting torque associated with the sprinkler rotating with a constant speed of 500 rev/min.
(c) Determine the angular velocity of the sprinkler if no resisting torque is applied.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 88

Five liters/s of water enter the rotor shown in Video V5.10 and Fig. P5.88 along the axis of rotation. The cross-sectional area of each of the three nozzle exits normal to the relative velocity is $18 \mathrm{mm}^{2}$. How large is the resisting torque required to hold the rotor stationary? How fast will the rotor spin steadily if the resisting torque is reduced to zero and
(a) $\theta=0^{\circ},$ (b) $\theta=30^{\circ},$ (c) $\theta=60^{\circ} ?$

Victor Salazar
Victor Salazar
Numerade Educator
02:16

Problem 89

(See Fluids in the News article titled "Tailless Helicopters," Section $5.2 .4 .$ ) Shown in Fig. P5.89 is a toy "helicopter" powered by air escaping from a balloon. The air from the balloon flows radially through each of the three propeller blades and out through small nozzles at the tips of the blades. Explain physically how this flow can cause the rotation necessary to rotate the blades to produce the needed lifting force.

Dominador Tan
Dominador Tan
Numerade Educator
View

Problem 90

A water turbine wheel rotates at the rate of 50 rpm in the direction shown in Fig. $\mathrm{P} 5.90 .$ The inner radius, $r_{2},$ of the blade row is $2 \mathrm{ft}$, and the outer radius, $r_{1}$, is $4 \mathrm{ft}$. The absolute velocity vector at the turbine rotor entrance makes an angle of $20^{\circ}$ with the tangential direction. The inlet blade angle is $60^{\circ}$ relative to the tangential direction. The blade outlet angle is $120^{\circ} .$ The flowrate is $20 \mathrm{ft}^{3} / \mathrm{s} .$ For the flow tangent to the rotor blade surface at inlet and outlet, determine an appropriate constant blade height, $b$, and the corresponding power available at the rotor shaft.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 91

A water turbine with radial flow has the dimensions shown in Fig. P5.91. The absolute entering velocity is $50 \mathrm{ft} / \mathrm{s}$, and it makes an angle of $30^{\circ}$ with the tangent to the rotor. The absolute exit velocity is directed radially inward. The angular speed of the rotor is 120 rpm. Find the power delivered to the shaft of the turbine.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 92

A fan (see Fig. $P 5.92$ ) has a bladed rotor of 12 -in. outside diameter and 5 -in. inside diameter and runs at 1725 rpm. The width of each rotor blade is 1 in. from blade inlet to outlet. The volume flowrate is steady at $230 \mathrm{ft}^{3} / \mathrm{min},$ and the absolute velocity of the air at blade inlet, $V_{1},$ is purely radial. The blade discharge angle is $30^{\circ}$ measured with respect to the tangential direction at the outside diameter of the rotor. (a) What would be a reasonable blade inlet angle (measured with respect to the tangential direction at the inside diameter of the rotor)? (b) Find the power required to run the fan.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 93

The radial component of velocity of water leaving the centrifugal pump sketched in Fig. $\mathrm{P} 5.93$ is $30 \mathrm{ft} / \mathrm{s}$. The magnitude of the absolute velocity at the pump exit is $60 \mathrm{ft} / \mathrm{s}$. The fluid enters the pump rotor radially. Calculate the shaft work required per unit mass flowing through the pump.

Victor Salazar
Victor Salazar
Numerade Educator
04:17

Problem 94

$\text { An axial flow turbomachine rotor involves the upstream ( } 1)$ and downstream (2) velocity triangles shown in Fig. P5.94. Is this turbomachine a turbine or a fan? Sketch an appropriate blade section and determine energy transferred per unit mass of fluid.

Sriparna Bhattacharjee
Sriparna Bhattacharjee
Numerade Educator
View

Problem 95

An inward flow radial turbine (see Fig. P5.95) involves a nozzle angle, $\alpha_{1},$ of $60^{\circ}$ and an inlet rotor tip speed, $U_{1},$ of $6 \mathrm{m} / \mathrm{s}$ The ratio of rotor inlet to outlet diameters is $1.8 .$ The absolute velocity leaving the rotor at section (2) is radial with a magnitude of $12 \mathrm{m} / \mathrm{s}$. Determine the energy transfer per unit mass of fluid flowing through this turbine if the fluid is
(a) air, (b) water.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 96

A sketch of the arithmetic mean radius blade sections of an axial-flow water turbine stage is shown in Fig. P5.96. The rotor speed is $1000 \mathrm{rpm}$
(a) Sketch and label velocity triangles for the flow entering and leaving the rotor row. Use $\mathbf{V}$ for absolute velocity, $\mathbf{W}$ for relative velocity, and $\mathbf{U}$ for blade velocity. Assume flow enters and leaves each blade row at the blade angles shown.
(b) Calculate the work per unit mass delivered at the shaft.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 97

By using velocity triangles for flow upstream (1) and downstream (2) of a turbomachine rotor, prove that the shaft work in per unit mass flowing through the rotor is
\[
w_{\text {shaft net in }}=\frac{V_{2}^{2}-V_{1}^{2}+U_{2}^{2}-U_{1}^{2}+W_{1}^{2}-W_{2}^{2}}{2}
\]
where $V=$ absolute flow velocity magnitude, $W=$ relative flow velocity magnitude, and $U=$ blade speed.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 98

Distinguish between shaft work and other kinds of work associated with a flowing fluid.

Nick Johnson
Nick Johnson
Numerade Educator
View

Problem 99

An incompressible fluid flows along a 0.20 -m-diameter pipe with a uniform velocity of $3 \mathrm{m} / \mathrm{s}$. If the pressure drop between the upstream and downstream sections of the pipe is $20 \mathrm{kPa}$ determine the power transferred to the fluid due to fluid normal stresses.

James Kiss
James Kiss
Numerade Educator
View

Problem 100

A 100 -ft-wide river with a flowrate of $2400 \mathrm{ft}^{3} / \mathrm{s}$ flows over a rock pile as shown in Fig. P5.100. Determine the direction of flow and the head loss associated with the flow across the rock pile.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 101

A horizontal Venturi flow meter consists of a converging-diverging conduit as indicated in Fig. P5.101. The diameters of cross sections (1) and (2) are 6 and 4 in. The velocity and static pressure are uniformly distributed at cross sections (1) and $(2) .$ Determine the volume flowrate (ft'/s) through the meter if $p_{1}-p_{2}=$ $3 \mathrm{psi}$, the flowing fluid is oil $\left(p=56 \mathrm{lbm} / \mathrm{ft}^{3}\right),$ and the loss per unit mass from (1) to (2) is negligibly small.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 102

Oil $(S G=0.9)$ flows downward through a vertical pipe contraction as shown in Fig. P5.102. If the mercury manometer reading, $h,$ is $100 \mathrm{mm}$, determine the volume flowrate for frictionless flow. Is the actual flowrate more or less than the frictionless value? Explain.

Victor Salazar
Victor Salazar
Numerade Educator
01:27

Problem 103

An incompressible liquid flows steadily along the pipe shown in Fig. $\mathrm{P} 5.103$. Determine the direction of flow and the head loss over the 6 -m length of pipe.

Narayan Hari
Narayan Hari
Numerade Educator
View

Problem 104

A siphon is used to draw water at $70^{\circ} \mathrm{F}$ from a large container as indicated in Fig. P5.104. The inside diameter of the siphon line is 1 in. and the pipe centerline rises 3 ft above the essentially constant water level in the tank. Show that by varying the length of the siphon below the water level, $h$, the rate of flow through the siphon can be changed. Assuming frictionless flow, determine the maximum flowrate possible through the siphon. The limiting condition is the occurrence of cavitation in the siphon. Will the actual maximum flow be more or less than the frictionless value? Explain.

Victor Salazar
Victor Salazar
Numerade Educator
01:54

Problem 105

A water siphon having a constant inside diameter of 3 in. is arranged as shown in Fig. $\mathrm{P} 5.105 .$ If the friction loss between $A$ and $B$ is $0.8 V^{2} / 2,$ where $V$ is the velocity of flow in the siphon, determine the flowrate involved.

Anand Jangid
Anand Jangid
Numerade Educator
View

Problem 106

Water flows through a valve (see Fig. $P 5.106$ ) at the rate of $1000 \mathrm{lbm} / \mathrm{s}$. The pressure just upstream of the valve is $90 \mathrm{psi}$ and the pressure drop across the valve is 50 psi. The inside diameters of the valve inlet and exit pipes are 12 and 24 in. If the flow through the valve occurs in a horizontal plane, determine the loss in available energy across the valve.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 107

A gas expands through a nozzle from a pressure of 300 psia to a pressure of 5 psia. The enthalpy change involved, $h_{1}-h_{2},$ is $150 \mathrm{Btu} / \mathrm{lbm} .$ If the expansion is adiabatic but with frictional effects and the inlet gas speed is negligibly small, determine the exit gas velocity.

Victor Salazar
Victor Salazar
Numerade Educator
04:24

Problem 108

For the $180^{\circ}$ elbow and nozzle flow shown in Fig. P5.108, determine the loss in available energy from section (1) to section
(2). How much additional available energy is lost from section (2) to where the water comes to rest?

Narayan Hari
Narayan Hari
Numerade Educator
View

Problem 109

An automobile engine will work best when the back pressure at the interface of the exhaust manifold and the engine block is minimized. Show how reduction of losses in the exhaust manifold, piping, and muffler will also reduce the back pressure. How could losses in the exhaust system be reduced? What primarily limits the minimization of exhaust system losses?

James Kiss
James Kiss
Numerade Educator
View

Problem 110

(See Fluids in the News article titled "Smart Shocks," Section $5.3 .3 .$. A 200 -lb force applied to the end of the piston of the shock absorber shown in Fig. P5.1 10 causes the two ends of the shock absorber to move toward each other with a speed of $5 \mathrm{ft} / \mathrm{s}$ Determine the head loss associated with the flow of the oil through the channel. Neglect gravity and any friction force between the piston and cylinder walls.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 111

Based on flowrate and pressure rise information, estimate the power output of a human heart.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 112

What is the maximum possible power output of the hydroelectric turbine shown in Fig. P5.1 $12 ?$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 113

Oil $(S G=0.88)$ flows in an inclined pipe at a rate of $5 \mathrm{ft}^{3} / \mathrm{s}$ as shown in Fig. $\mathrm{P} 5.113 .$ If the differential reading in the mercury manometer is $3 \mathrm{ft}$, calculate the power that the pump supplies to the oil if head losses are negligible.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 114

The pumper truck shown in Fig. P5.1 14 is to deliver $1.5 \mathrm{ft}^{3} / \mathrm{s}$ to a maximum elevation of $60 \mathrm{ft}$ above the hydrant. The pressure at the 4 -in.-diameter outlet of the hydrant is 10 psi. If head losses are negligibly small, determine the power that the pump must add to the water.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 115

The hydroelectric turbine shown in Fig. P5.1 15 passes 8 million gal/min across a head of $600 \mathrm{ft}$. What is the maximum amount of power output possible? Why will the actual amount be less?

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 116

A pump is to move water from a lake into a large, pressurized tank as shown in Fig. P5.1 16 at a rate of 1000 gal in 10 min or less. Will a pump that adds 3 hp to the water work for this purpose? Support your answer with appropriate calculations. Repeat the problem if the tank were pressurized to $3,$ rather than $2,$ atmospheres.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 117

Water is supplied at $150 \mathrm{ft}^{3} / \mathrm{s}$ and $60 \mathrm{psi}$ to a hydraulic turbine through a 3 -ft inside-diameter inlet pipe as indicated in Fig. P5.117. The turbine discharge pipe has a 4 -ft inside diameter. The static pressure at section $(2), 10 \mathrm{ft}$ below the turbine inlet, is 10 -in. $\mathrm{Hg}$ vacuum. If the turbine develops $2500 \mathrm{hp},$ determine the power lost between sections (1) and (2)

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 118

Water is pumped from the tank shown in Fig. P5.1 18a. The head loss is known to be $1.2 \mathrm{V}^{2} / 2 \mathrm{g}$, where $V$ is the average velocity in the pipe. According to the pump manufacturer, the relationship between the pump head and the flowrate is as shown in Fig. P5.1 $18 b: h_{p}=20-2000 Q^{2}$, where $h_{p}$ is in meters and $Q$ is in $\mathrm{m}^{3} / \mathrm{s} .$ Determine the flowrate, $Q$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 119

Water is pumped from the large tank shown in Fig. P5.119. The head loss is known to be equal to $4 V^{\prime} / 2 g$ and the pump head is $h_{p}=20-4 Q^{2},$ where $h_{p}$ is in ft when $Q$ is in $\mathrm{ft}^{3} / \mathrm{s}$. Determine the flowrate.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 120

Water flows by gravity from one lake to another as sketched in Fig. $\mathrm{P} 5.120$ at the steady rate of 80 gpm. What is the loss in available energy associated with this flow? If this same amount of loss is associated with pumping the fluid from the lower lake to the higher one at the same flowrate, estimate the amount of pumping power required.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 121

The turbine shown in Fig. P5.121 develops 100 hp when the flowrate of water is $20 \mathrm{ft}^{3} / \mathrm{s}$. If all losses are negligible, determine
(a) the elevation $h,$ (b) the pressure difference across the turbine, and (c) the flowrate expected if the turbine were removed.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 122

Water is pumped from a tank, point (1), to the top of a water plant aerator, point $(2),$ as shown in Video $\mathrm{V} 5.16$ and Fig. $\mathrm{P} 5.122$ at a rate of $3.0 \mathrm{ft}^{3} / \mathrm{s}$. (a) Determine the power that the pump adds to the water if the head loss from (1) to (2) where $V_{2}=0$ is 4 ft.
(b) Determine the head loss from (2) to the bottom of the aerator column, point $(3),$ if the average velocity at (3) is $V_{3}=2 \mathrm{ft} / \mathrm{s}$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 123

Water is to be moved from one large reservoir to another at a higher elevation as indicated in Fig. $\mathrm{P} 5.123 .$ The loss of available energy associated with $2.5 \mathrm{ft}^{3} / \mathrm{s}$ being pumped from sections (1) to (2) is loss $=61 \bar{V}^{2} / 2 \mathrm{ft}^{2} / \mathrm{s}^{2},$ where $\bar{V}$ is the average velocity of water in the 8 -in. inside-diameter piping involved. Determine the amount of shaft power required.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 124

A \frac{3}{4}$ -hp motor is required by an air ventilating fan to produce a 24 -in.- -diameter stream of air having a uniform speed of $40 \mathrm{ft} / \mathrm{s}$ Determine the aerodynamic efficiency of the fan.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 125

A pump moves water horizontally at a rate of $0.02 \mathrm{m}^{3} / \mathrm{s}$ Upstream of the pump where the pipe diameter is $90 \mathrm{mm}$, the pressure is $120 \mathrm{kPa}$. Downstream of the pump where the pipe diameter is $30 \mathrm{mm}$, the pressure is $400 \mathrm{kPa}$. If the loss in energy across the pump due to fluid friction effects is $170 \mathrm{N} \cdot \mathrm{m} / \mathrm{kg}$, determine the hydraulic efficiency of the pump.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 126

Water is to be pumped from the large tank shown in Fig. $\mathrm{P} 5.126$ with an exit velocity of $6 \mathrm{m} / \mathrm{s}$. It was determined that the original pump (pump 1) that supplies 1 $\mathrm{kW}$ of power to the water did not produce the desired velocity. Hence, it is proposed that an additional pump (pump 2 ) be installed as indicated to increase the flowrate to the desired value. How much power must pump 2 add to the water? The head loss for this flow is $h_{L}=250 Q^{2}$, where $h_{L}$ is in $\mathrm{m}$ when $Q$ is in $\mathrm{m}^{3} / \mathrm{s}$

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 127

(See Fluids in the News article titled "Curtain of Air," Section $5.3 .3 .$ The fan shown in Fig. $\mathrm{P} 5.127$ produces an air curtain to separate a loading dock from a cold storage room. The air curtain is a jet of air $10 \mathrm{ft}$ wide, $0.5 \mathrm{ft}$ thick moving with speed $V=30 \mathrm{ft} / \mathrm{s}$ The loss associated with this flow is loss $=K_{L} V^{2} / 2,$ where $K_{L}=5$ How much power must the fan supply to the air to produce this flow?

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 128

If a $\frac{3}{4}$ -hp motor is required by a ventilating fan to produce a $24-$ in. stream of air having a velocity of 40 ft/s as shown in Fig. P5.128, estimate (a) the efficiency of the fan and (b) the thrust of the supporting member on the conduit enclosing the fan.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 129

Air flows past an object in a pipe of $2-\mathrm{m}$ diameter and exits as a free jet as shown in Fig. P5.129. The velocity and pressure upstream are uniform at $10 \mathrm{m} / \mathrm{s}$ and $50 \mathrm{N} / \mathrm{m}^{2},$ respectively. At the pipe exit the velocity is nonuniform as indicated. The shear stress along the pipe wall is negligible.
(a) Determine the head loss associated with a particle as it flows from the uniform velocity upstreamof the object to a location in the wake at the exit plane of the pipe.
(b) Determine the force that the air exerts on the object.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 130

Near the downstream end of a river spillway, a hydraulic jump often forms, as illustrated in Fig. P5.130 and Video V10.11. The velocity of the channel flow is reduced abruptly across the jump. Using the conservation of mass and linear momentum principles, derive the following expression for $h_{2}$
\[
h_{2}=-\frac{h_{1}}{2}+\sqrt{\left(\frac{h_{1}}{2}\right)^{2}+\frac{2 V_{1}^{2} h_{1}}{g}}
\]
The loss of available energy across the jump can also be determined if energy conservation is considered. Derive the loss expression
\[
\text { jump loss }=\frac{g\left(h_{2}-h_{1}\right)^{3}}{4 h_{1} h_{2}}
\]

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 131

Water flows steadily down the inclined pipe as indicated in Fig $\mathrm{P} 5.131 .$ Determine the following: (a) the difference in pressure $p_{1}-p_{2},$ (b) the loss between sections (1) and $(2),(\mathrm{c})$ the net axial force exerted by the pipe wall on the flowing water between sections (1) and (2)

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 132

Water flows steadily in a pipe and exits as a free jet through an end cap that contains a filter as shown in Fig. P5.132. The flow is in a horizontal plane. The axial component, $R_{y},$ of the anchoring force needed to keep the end cap stationary is 60 lb. Determine the head loss for the flow through the end cap.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 133

When fluid flows through an abrupt expansion as indicated in Fig. $\mathrm{P} 5.133,$ the loss in available energy across the expansion, loss $_{\mathrm{ex}},$ is often expressed as
\[
\operatorname{loss}_{e x}=\left(1-\frac{A_{1}}{A_{2}}\right)^{2} \frac{V_{1}^{2}}{2}
\]
where $A_{1}=$ cross-sectional area upstream of expansion, $A_{2}=$ cross-sectional area downstream of expansion, and $V_{1}=$ velocity of flow upstream of expansion. Derive this relationship.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 134

Two water jets collide and form one homogeneous jet as shown in Fig. P5.134. (a) Determine the speed, $V$, and direction, $\theta,$ of the combined jet. (b) Determine the loss for a fluid particle flowing from (1) to $(3),$ from (2) to $(3) .$ Gravity is negligible.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 135

Water flows vertically upward in a circular cross-sectional pipe. At section $(1),$ the velocity profile over the cross-sectional area is uniform. At section (2), the velocity profile is
\[
\mathbf{V}=w_{c}\left(\frac{R-r}{R}\right)^{1 / 7} \hat{\mathbf{k}}
\]
where $\mathbf{V}=$ local velocity vector, $w_{c}=$ centerline velocity in the axial direction, $R=$ pipe inside radius, and $r=$ radius from pipe axis. Develop an expression for the loss in available energy between sections (1) and (2)

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 136

A small fan moves air at a mass flowrate of $0.004 \mathrm{lbm} / \mathrm{s}$ Upstream of the fan, the pipe diameter is 2.5 in., the flow is laminar. the velocity distribution is parabolic, and the kinetic energy coefficient, $\alpha_{1},$ is equal to $2.0 .$ Downstream of the fan, the pipe diameter is 1 in., the flow is turbulent, the velocity profile is quite flat, and the kinetic energy coefficient, $\alpha_{2},$ is equal to $1.08 .$ If the rise in static pressure across the fan is 0.015 psi and the fan shaft draws 0.00024 hp, compare the value of loss calculated:
(a) assuming uniform velocity distributions,
(b) considering actual velocity distributions.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 137

Air enters a radial blower with zero angular momentum. It leaves with an absolute tangential velocity, $V_{\theta},$ of $200 \mathrm{ft} / \mathrm{s}$ The rotor blade speed at rotor exit is $170 \mathrm{ft} / \mathrm{s}$. If the stagnation pressure rise across the rotor is 0.4 psi, calculate the loss of available energy across the rotor and the rotor efficiency.

Victor Salazar
Victor Salazar
Numerade Educator
02:17

Problem 138

Water enters a pump impeller radially. It leaves the impeller with a tangential component of absolute velocity of $10 \mathrm{m} / \mathrm{s}$. The impeller exit diameter is $60 \mathrm{mm}$, and the impeller speed is $1800 \mathrm{rpm}$. If the stagnation pressure rise across the impeller is $45 \mathrm{kPa}$, determine the loss of available energy across the impeller and the hydraulic efficiency of the pump.

Narayan Hari
Narayan Hari
Numerade Educator
View

Problem 139

Water enters an axial-flow turbine rotor with an absolute velocity tangential component, $V_{\theta},$ of $15 \mathrm{ft} / \mathrm{s}$. The corresponding blade velocity, $U,$ is $50 \mathrm{ft}$ s. The water leaves the rotor blade row with no angular momentum. If the stagnation pressure drop across the turbine is 12 psi, determine the hydraulic efficiency of the turbine.

Victor Salazar
Victor Salazar
Numerade Educator
View

Problem 140

An inward flow radial turbine (see Fig. P5.140) involves a nozzle angle, $\alpha_{1},$ of $60^{\circ}$ and an inlet rotor tip speed, $U_{1},$ of $30 \mathrm{ft} / \mathrm{s}$ The ratio of rotor inlet to outlet diameters is $2.0 .$ The radial component of velocity remains constant at $20 \mathrm{ft} / \mathrm{s}$ through the rotor, and the flow leaving the rotor at section (2) is without angular momentum. If the flowing fluid is water and the stagnation pressure drop across the rotor is 16 psi, determine the loss of available energy across the rotor and the hydraulic efficiency involved.

Victor Salazar
Victor Salazar
Numerade Educator
01:06

Problem 141

The distribution of axial direction velocity, $u,$ in a pipe flow is linear from zero at the wall to maximum of $u_{c}$ at the centerline. Determine the average velocity, $\bar{u},$ and the kinetic energy coefficient, $\alpha$

Dominador Tan
Dominador Tan
Numerade Educator
