Electromagnetic Fields and Waves: Including Electric Circuits

Paul Lorrain, Dale R. Corson

Chapter 25

Magnetic Fields Viii - all with Video Answers

Educators


Chapter Questions

05:48

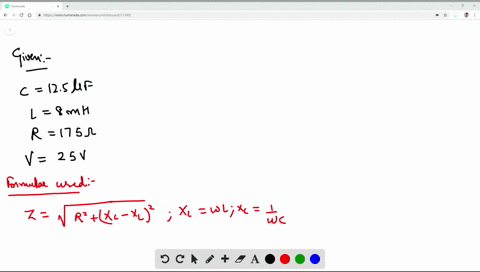

Problem 1

Impedance
(a) Calculate the impedance $Z$ of the circuit shown in Fig. 25-12. What is the value of $Z$ when (i) $f=0$, (ii) $f \rightarrow \infty$ ?
(b) Calculate the magnitude and the phase angle of $Z$ at 1 kilohertz.
(c) Calculate the amplitude and the phase angle of $Y=1 / Z$ at that frequency.
(d) Calculate the power dissipation when the current is 100 milliamperes, again at 1 kilohertz.
(e) Can the real part of the impedance become negative?
(f) For what frequency ranges is the circuit equivalent to (i) a resistor in series with an inductor, (ii) a resistor in series with a capacitor?
(g) At what frequency is the circuit equivalent to a pure resistance?

PR
Paul Ridder
Numerade Educator
02:59

Problem 2

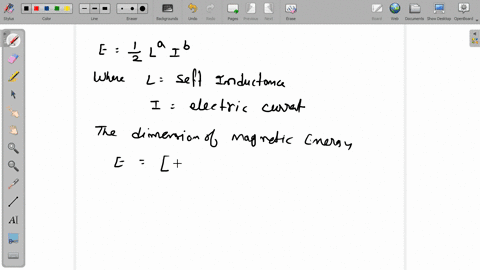

The magnetic energy stored in an inductor
A voltage source $V$ is connected through a switch to an inductor of inductance $L$ and resistance $R$. The switch closes at $t=0$.
Show that at any time $T$ the energy that has been supplied by the source, minus the energy dissipated in the resistance, is equal to the magnetic energy $I^{2} L / 2$.

Prem Bijarniya
Prem Bijarniya
Numerade Educator
02:01

Problem 3

$R L$ circuit
Find the current in the inductance $L$ of the circuit of Fig. 25-13. The switch closes at $t=0$. If you have studied Chap. 8 , use the substitution theorem and then Millman's theorem.

Farhanul Hasan
Farhanul Hasan
Numerade Educator
01:14

Problem 4

The star-delta transformation with a self-inductance
Section $8.9$ is a prerequisite for this problem. Show that the star and the delta of Fig. $25-14$ are equivalent at 1 kilohertz.

cm
Charles Magnusen
Numerade Educator
04:09

Problem 5

The coefficient of coupling
The coefficient of coupling $k$ between two single-turn coils was defined in

Kajal Gautam
Kajal Gautam
Numerade Educator
03:24

Problem 6

Measurement of the coefficient of coupling $k$
A transformer has a primary inductance $L_{1}$, a secondary inductance $L_{2}$, and a mutual inductance $M$. The winding resistances are negligible.
Show that $Z_{0} / Z_{n}=1-k^{2}$, where $Z_{0}$ and $Z_{*}$ are the impedances measured at the terminals of the primary, when the secondary is short-circuited and when it is open-circuited.

Vishal Gupta
Vishal Gupta
Numerade Educator
02:36

Problem 7

Impedances in parallel, with mutual inductance Calculate the impedance of the circuit shown in Fig. 25-15.

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
01:44

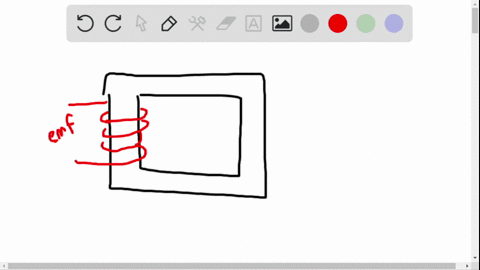

Problem 8

Improving (?) iron-core transformers
In a iron-core transformer, the windings are outside the core, where $B$ is. orders of magnitude smaller than inside. Why not put them inside?

Donald Albin
Donald Albin
Numerade Educator
01:27

Problem 9

Eddy-current losses in transformer laminations
Eddy-current losses in magnetic cores are minimized by assembling them from laminations. Consider a core of rectangular cross section as in Fig. 25-16. The eddy-current loss is proportional to $V^{2} / R$, where $V$ is the electromotance induced around a typical current path such as the one shown by a dashed curve. The resistance is also difficult to define, but it is of the order of twice the resistance of the upper half, or $2 a /[\sigma(b / a) L]$.
(a) Show that splitting the core into $n$ laminations reduces eddy-current losses by a factor of $n^{2}$,
(b) Show that these losses increase as the square of the frequency.

Narayan Hari
Narayan Hari
Numerade Educator
01:27

Problem 10

Hysteresis losses
Hysteresis losses are proportional to the operating frequency $f$, while eddy-current losses increase as $f^{2}$, as we saw above. You are given a number of transformer laminations. Can you devise an experiment that will permit you to evaluate the relative importance of the two types of loss?

Narayan Hari
Narayan Hari
Numerade Educator
05:32

Problem 11

The reflected impedance
Show that a positive (inductive) reactance in the secondary of a transformer is equivalent to a negative (capacitive) reactance in the. primary, and inversely.

Zulfiqar Ali
Zulfiqar Ali
Numerade Educator
View

Problem 12

Electromagnetic crack detectors and metal detectors
It is possible to detect cracks in metallic objects as follows. If the part to be examined is placed in the vicinity of a coil fed with alternating current, the inductance measured at the coil terminals is lowest when there are no cracks. Such instruments can detect cracks only. 10 micrometers deep. The coil forms part of a resonant circuit. $^{*}$ Metal detectors operate similarly.
Consider the following simpler situation. A single-layer close-wound solenoid has a length $l$, a radius $a$, and $N$ turns. Let us calculate how its impedance changes when one introduces into the solenoid a thin brass tube of wall thickness $b$.
When an alternating current flows in the solenoid, the changing magnetic flux induces a current in the tube, which thus acts as a secondary winding. According to Lenz's law, the induced current tends to cancel $d \Phi / d r$, and hence $j \omega \Phi$, and hence $\Phi$. The presence of the tube thus reduces the inductance at the solenoid terminals. The effective inductance of the solenoid decreases when the resistance of the tube decreases.

We disregard the skin effect (Sec. 29.1) in the tube and the stray capacitance of the coil. Also, we set $l \gg a$ so as to disregard end effects. The coefficient of coupling is nearly equal to unity.
(a) Calculate the resistance $R_{1}$ of the winding of the solenoid. Set the conductivity of copper equal to $\sigma_{e}$.
(b) Calculate the impedance $Z_{t}$ of the solenoid without the brass tube.
(c) Calculate the resistance $R_{2}$ of the brass tube in the azimuthal direction. Set its radius equal to $a$, and call its conductivity $\sigma_{b}$,
(d) Calculate its inductance $L_{2}$ and impedance $Z_{2}$
(e) Now calculate the impedance at the solenoid terminals with the tube in place.
(f) Calculate impedances, without and with the brass tube, when $N=1000, \quad l=200$ millimeters, $a=20.0$ millimeters, $b=0.5$ millimeter $f=1000$ hertz, $\quad \sigma_{e}=5.8 \times 10^{7}$ siemens/meter, $\quad \sigma_{b}=1.6 \times 10^{7}$ siemens $/$ meter. Note how the presence of the tube increases $R$ (more dissipation) and decreases $L$ (less flux).

Victor Salazar
Victor Salazar
Numerade Educator
05:43

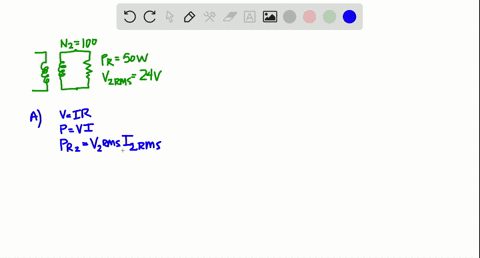

Problem 13

Soldering gun
A soldering gun consists of a step-down transformer that feeds a large current through a length of copper wire. One type dissipates 100 watts in a piece of copper wire $\left(\sigma=5.8 \times 10^{7}\right.$ siemens/meter) having a cross section of 4 millimeters $^{2}$ and a length of 100 millimeters.
(a) Find $V$ and $I$ in the secondary.
(b) Find the current in the primary if it is fed at 120 volts, assuming an efficiency of $100 \%$.

00000 00000
00000 00000
Numerade Educator
08:08

Problem 14

Impedance matching with an $L C$ circuit
Figure $25-17$ shows a radio transmitter connected to a resistance $R$ that represents an antenna. Set the impedance $Z_{L}$ seen by the transmitter equal to $R_{L}+j X_{L}$
(a) Under what condition is $X_{t}=0 ?$
(b) Then what is the value of $R / R_{x}$ ?
(c) Calculate the values of $C$ and $L$ for $R=50 \mathrm{ohms}$ and $f=$ 14 megahertz if $R / R_{L}$ must equal $12.5$.
(d) Now plot $R_{t .}$ and $X_{L}$ as functions of the frequency between $13.5$ and $14.5$ megahertz.
This $L C$ circuit is inexpensive, compared to a transformer, but the impedance match applies only at the design frequency.
