Chapter 11

The Design of State Variable Feedback Systems - all with Video Answers

Educators

Chapter Questions

Problem 1

A first-order system is represented by the timedomain differential equation
$$
\dot{x}=x+u .
$$

A feedback controller is to be designed such that
$$
u(t)=-k x,
$$
and the desired equilibrium condition is $x(t)=0$ as $t \rightarrow \infty$. The performance integral is defined as
$$
J=\int_0^{\infty} x^2 d t,
$$
and the initial value of the state variable is $x(0)=\sqrt{2}$. Obtain the value of $k$ in order to make $J$ a minimum. Is this $k$ physically realizable? Select a practical value for the gain $k$ and evaluate the performance index with that gain. Is the system stable without the feedback due to $u(t)$ ?

Check back soon!

Problem 2

To account for the expenditure of energy and resources, the control signal is often included in the performance integral. Then the operation will not involve an unlimited control signal $u(t)$. One suitable performance index, which includes the effect of the magnitude of the control signal, is
$$
J=\int_0^{\infty}\left(x^2(t)+\lambda u^2(t)\right) d t .
$$
(a) Repeat Problem P11.1 for the performance index.
(b) If $\lambda=2$, obtain the value of $k$ that minimizes the performance index. Calculate the resulting minimum value of $J$.

Check back soon!

Problem 3

An unstable robot system is described by the vector differential equation [10]
$$
\frac{d}{d t}\left[\begin{array}{l}
x_1 \\
x_2
\end{array}\right]=\left[\begin{array}{rr}
1 & 0 \\
-1 & 2
\end{array}\right]\left[\begin{array}{l}
x_1 \\
x_2
\end{array}\right]+\left[\begin{array}{l}
1 \\
1
\end{array}\right] u(t) .
$$

Both state variables are measurable, and so the control signal is set as $u(t)=-k\left(x_1+x_2\right)$. Following the method of Section 11.7, design gain $k$ so that the performance index is minimized. Evaluate the minimum value of the performance index. Determine the sensitivity of the performance to a change in $k$. Assume that the initial conditions are
$$
\mathbf{x}(0)=\left[\begin{array}{l}
1 \\
1
\end{array}\right] .
$$
Is the system stable without the feedback signals due to $u(t)$ ?

Check back soon!

Problem 4

Determine the feedback gain $k$ of Example 11.12 that minimizes the performance index
$$
J=\int_0^{\infty} \mathbf{x}^T \mathbf{x} d t
$$
when $\mathbf{x}^T(0)=\left[\begin{array}{ll}1 & 1\end{array}\right]$. Plot the performance index $J$ versus the gain $k$.

Check back soon!

Problem 5

Determine the feedback gain $k$ of Example 11.13 that minimizes the performance index
$$
J=\int_0^{\infty}\left(\mathbf{x}^T \mathbf{x}+\mathbf{u}^T \mathbf{u}\right) d t
$$
when $\mathbf{x}^T(0)=\left[\begin{array}{ll}1 & 1\end{array}\right]$. Plot the performance index $J$ versus the gain $k$.

Check back soon!

Problem 6

For the solutions of Problems P11.3, P11.4, and P11.5, determine the roots of the closed-loop optimal control system. Note that the resulting closed-loop roots depend on the performance index selected.

Check back soon!
03:33

Problem 7

A system has the vector differential equation as given in Equation (11.42). We want both state variables to be used in the feedback so that $u(t)=-k_1 x_1-k_2 x_2$. Also, we desire to have a natural frequency $\omega_n$ for this system equal to 2 . Find a set of gains $k_1$ and $k_2$ in order to achieve an optimal system when $J$ is given by Equation (11.63). Assume $\mathbf{x}^T(0)=\left[\begin{array}{ll}1 & 0\end{array}\right]$.

James Kiss
James Kiss
Numerade Educator
00:37

Problem 8

For the system of Example 11.11 determine the optimum value for $k_2$ when $k_1=1$ and $\mathbf{x}^T(0)=\left[\begin{array}{ll}1 & 0\end{array}\right]$.

Victor Salazar
Victor Salazar
Numerade Educator
06:03

Problem 9

An interesting mechanical system with a challenging control problem is the ball and beam, shown in Figure P11.9(a) [11]. It consists of a rigid beam that is free to rotate in the plane of the paper around a center pivot, with a solid ball rolling along a groove in the top of the beam. The control problem is to position the ball at a desired point on the beam using a torque applied to the beam as a control input at the pivot.
A linear model of the system with a measured value of the angle $\phi$ and its angular velocity $d \phi / d t=\omega$ is available. Select a feedback scheme so that the response of the closed-loop system has an overshoot of $4 \%$ and a settling time (with a $2 \%$ criterion) of 1 second for a step input.

Khoobchandra Agrawal
Khoobchandra Agrawal
Numerade Educator
03:07

Problem 10

The dynamics of a rocket are represented by
$$
\begin{aligned}
& \dot{\mathbf{x}}=\left[\begin{array}{ll}
0 & 0 \\
1 & 0
\end{array}\right] \mathbf{x}+\left[\begin{array}{l}
1 \\
0
\end{array}\right] u \\
& y=\left[\begin{array}{ll}
0 & 1
\end{array}\right] \mathbf{x}
\end{aligned}
$$
and state variable feedback is used, where $u=-8 x_1$ $16 x_2$. Determine the roots of the characteristic equation of this system and the response of the system when the initial conditions are $x_1(0)=1$ and $x_2(0)=0$.

James Kiss
James Kiss
Numerade Educator

Problem 11

The state variable model of a plant to be controlled is
$$
\begin{aligned}
& \dot{\mathbf{x}}=\left[\begin{array}{rr}
-5 & -2 \\
2 & 0
\end{array}\right] \mathbf{x}+\left[\begin{array}{c}
0.5 \\
0
\end{array}\right] u \\
& y=\left[\begin{array}{ll}
0 & 1
\end{array}\right] \mathbf{x}+[0] u .
\end{aligned}
$$

Use state variable feedback and incorporate a command input $u=-\mathbf{K x}+\alpha r$. Select the gains $\mathbf{K}$ and $\alpha$ so that the system has a rapid response with an overshoot of approximately $1 \%$, a settling time (with a $2 \%$ criterion) less than 1 second, and a zero steady-state error to a unit step input.

Check back soon!

Problem 12

A DC motor has the state variable model
$$
\begin{aligned}
& \dot{\mathbf{x}}=\left[\begin{array}{rrlrr}
-3 & -2 & -0.75 & 0 & 0 \\
-3 & 0 & 0 & 0 & 0 \\
0 & 2 & 0 & 0 & 0 \\
0 & 0 & 1 & 0 & 0 \\
0 & 0 & 0 & 2 & 0
\end{array}\right] \mathbf{x}+\left[\begin{array}{l}
1 \\
0 \\
0 \\
0 \\
0
\end{array}\right] u \\
& y=\left[\begin{array}{lllll}
0 & 0 & 0 & 0 & 2.75
\end{array}\right] \mathbf{x} .
\end{aligned}
$$

Determine whether this system is controllable and observable.

Check back soon!

Problem 13

Consider a system with state-space model
$$
\begin{aligned}
& \dot{\mathbf{x}}=\left[\begin{array}{rrr}
0 & 1 & 0 \\
0 & 0 & 1 \\
-2 & -3 & -5
\end{array}\right] \mathbf{x}+\left[\begin{array}{l}
0 \\
0 \\
1
\end{array}\right] u \\
& y=x_1
\end{aligned}
$$

Design a state feedback controller such that closed-loop poles are $s_1=-4.8, s_2=-4.8+j 6, s_3=-4.8-j 6$.

Check back soon!

Problem 14

A process has the transfer function
$$
\begin{aligned}
& \dot{\mathbf{x}}=\left[\begin{array}{cc}
-10 & 0 \\
1 & 0
\end{array}\right] \mathbf{x}+\left[\begin{array}{l}
1 \\
0
\end{array}\right] u \\
& y=\left[\begin{array}{ll}
0 & 1
\end{array}\right] \mathbf{x}+[0] u .
\end{aligned}
$$

Determine the state variable feedback gains to achieve a settling time (with a $2 \%$ criterion) of 1 second and an overshoot of about $10 \%$. Also sketch the block diagram of the resulting system. Assume the complete state vector is available for feedback.

Check back soon!

Problem 15

A telerobot system has the matrix equations [18]
$$
\dot{\mathbf{x}}=\left[\begin{array}{rrr}
-1 & 0 & 0 \\
0 & -2 & 0 \\
0 & 0 & -3
\end{array}\right] \mathbf{x}+\left[\begin{array}{l}
1 \\
1 \\
0
\end{array}\right] u
$$
and
$$
y=\left[\begin{array}{lll}
1 & 0 & 2
\end{array}\right] \mathbf{x} .
$$
(a) Determine the transfer function, $G(s)=$ $Y(s) / U(s)$. (b) Draw the block diagram indicating the state variables. (c) Determine whether the system is controllable. (d) Determine whether the system is observable.

Check back soon!

Problem 16

Hydraulic power actuators were used to drive the dinosaurs of the movie Jurassic Park [23]. The motions of the large monsters required high-power actuators requiring 1200 watts.
One specific limb motion has dynamics represented by
$$
\begin{aligned}
& \dot{\mathbf{x}}=\left[\begin{array}{rr}
-2 & 0 \\
1 & 0
\end{array}\right] \mathbf{x}+\left[\begin{array}{l}
1 \\
0
\end{array}\right] u \\
& y=\left[\begin{array}{ll}
0 & 1
\end{array}\right] \mathbf{x}+[0] u .
\end{aligned}
$$

We want to place the closed-loop poles at $s=$ $-2 \pm j 2$. Determine the required state variable feedback using Ackermann's formula. Assume that the complete state vector is available for feedback.

Check back soon!
03:39

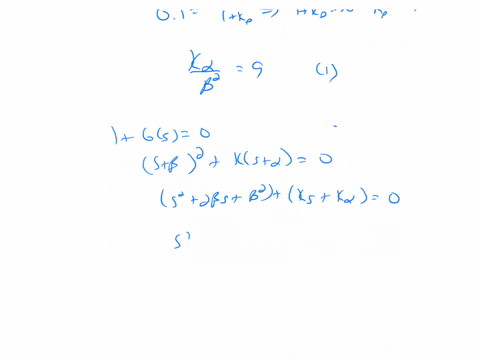

Problem 17

A system has a transfer function
$$
\frac{Y(s)}{R(s)}=\frac{s+a}{s^4+9 s^3+28 s^2+38 s+24} .
$$

Determine a real value of $a$ so that the system is either uncontrollable or unobservable.

Arpit Gupta
Arpit Gupta
Numerade Educator

Problem 18

A system has a plant
$$
\frac{Y(s)}{U(s)}=G(s)=\frac{1}{(s+1)^2} .
$$
(a) Find the matrix differential equation to represent this system. Identify the state variables on a block diagram model. (b) Select a state variable feedback structure using $u(t)$, and select the feedback gains so that the response $y(t)$ of the unforced system is critically damped when the initial condition is $x_1(0)=1$ and $x_2(0)=0$, where $x_1=y(t)$. The repeated roots are at $s=-\sqrt{2}$.

Check back soon!

Problem 19

The block diagram of a system is shown in Figure P11.19. Determine whether the system is controllable and observable.

Check back soon!
04:15

Problem 20

Consider the automatic ship-steering system discussed in Problems P8.11 and P9.15. The state variable form of the system differential equation is
$$
\dot{\mathbf{x}}(t)=\left[\begin{array}{cccr}
-0.05 & -6 & 0 & 0 \\
-10^{-3} & -0.15 & 0 & 0 \\
1 & 0 & 0 & 13 \\
0 & 1 & 0 & 0
\end{array}\right] \mathbf{x}(t)+\left[\begin{array}{c}
-0.2 \\
0.03 \\
0 \\
0
\end{array}\right] \delta(t),
$$
where $\mathbf{x}^T(t)=\left[\begin{array}{llll}v & \omega_s & y & \theta\end{array}\right]$. The state variables are $x_1=v=$ the transverse velocity; $x_2=\omega_s=$ angular rate of ship's coordinate frame relative to response frame; $x_3=y=$ deviation distance on an axis perpendicular to the track; $x_4=\theta=$ deviation angle. (a) Determine whether the system is stable. (b) Feedback can be added so that
$$
\delta(t)=-k_1 x_1-k_3 x_3 .
$$

Determine whether this system is stable for suitable values of $k_1$ and $k_3$.

Manish Jain
Manish Jain
Numerade Educator
04:20

Problem 21

An $R L$ circuit is shown in Figure P11.21. (a) Select the two stable variables and obtain the vector differential equation where the output is $v_0(t)$. (b) Determine whether the state variables are observable when $R_1 / L_1=R_2 / L_2$. (c) Find the conditions when the system has two equal roots.
Figure can't copy

Ashley Boni
Ashley Boni
Numerade Educator

Problem 22

A manipulator control system has a loop transfer function of
$$
G(s)=\frac{1}{s(s+0.4)}
$$
and negative unity feedback [17]. Represent this system by a state variable signal-flow graph or block diagram and a vector differential equation. (a) Plot the response of the closed-loop system to a step input. (b) Use state variable feedback so that the overshoot is $5 \%$ and the settling time (with a $2 \%$ criterion) is 1.35 seconds. (c) Plot the response of the state variable feedback system to a step input.

Check back soon!
04:10

Problem 23

Consider again the system of Example 11.7 when we desire that the steady-state error for a step input be zero and the desired roots of the characteristic equation be $s=-2 \pm j 1$ and $s=-10$.

James Kiss
James Kiss
Numerade Educator

Problem 24

Consider again the system of Example 11.7 when we desire that the steady-state error for a ramp input be zero and the roots of the characteristic equation be $s=-2 \pm j 2$ and $s=-20$.

Check back soon!

Problem 25

Consider the system represented in state variable form
$$
\begin{aligned}
& \dot{\mathbf{x}}=\mathbf{A x}+\mathbf{B} u \\
& y=\mathbf{C x}+\mathbf{D} u,
\end{aligned}
$$
where
$$
\begin{aligned}
& \mathbf{A}=\left[\begin{array}{rr}
1 & 4 \\
-5 & 10
\end{array}\right], \quad \mathbf{B}=\left[\begin{array}{l}
0 \\
1
\end{array}\right], \\
& \mathbf{C}=\left[\begin{array}{ll}
1 & -4
\end{array}\right], \quad \text { and } \quad \mathbf{D}=[0] .
\end{aligned}
$$

Verify that the system is observable. Then design a full-state observer by placing the observer poles at $s_{1,2}=-1$. Plot the response of the estimation error $\mathbf{e}=\mathbf{x}-\hat{\mathbf{x}}$ with an initial estimation error of $\mathbf{e}(0)=\left[\begin{array}{ll}1 & 1\end{array}\right]^T$.

Check back soon!
01:33

Problem 26

Consider the third-order system
$$
\begin{aligned}
& \dot{\mathbf{x}}=\left[\begin{array}{rrr}
0 & 1 & 0 \\
0 & 0 & 1 \\
-1 & -2 & -3
\end{array}\right] \mathbf{x}+\left[\begin{array}{l}
0 \\
0 \\
4
\end{array}\right] u \\
& y=\left[\begin{array}{lll}
2 & -4 & 0
\end{array}\right] \mathbf{x}+[0] u .
\end{aligned}
$$

Verify that the system is observable. If so, determine the observer gain matrix required to place the observer poles at $s_{1,2}=-1 \pm j 2$ and $s_3=-10$.

James Kiss
James Kiss
Numerade Educator
04:52

Problem 27

Consider the second-order system
$$
\begin{aligned}
& \dot{\mathbf{x}}=\left[\begin{array}{rr}
1 & 0 \\
-3 & -2
\end{array}\right] \mathbf{x}+\left[\begin{array}{c}
10 \\
0
\end{array}\right] u \\
& y=\left[\begin{array}{ll}
1 & 0
\end{array}\right] \mathbf{x}+[0] u .
\end{aligned}
$$

Determine the observer gain matrix required to place the observer poles at $s_{1,2}=-1 \pm j$.

Harmender Singh Yadav
Harmender Singh Yadav
Numerade Educator

Problem 28

Consider the single-input, single-output system is described by
$$
\begin{aligned}
\dot{\mathbf{x}}(t) & =\mathbf{A x}(t)+\mathbf{B} u(t) \\
y(t) & =\mathbf{C} \mathbf{x}(t)
\end{aligned}
$$
where
$$
\mathbf{A}=\left[\begin{array}{cc}
0 & 1 \\
-16 & -8
\end{array}\right], \mathbf{B}=\left[\begin{array}{l}
0 \\
K
\end{array}\right], \mathbf{C}=\left[\begin{array}{ll}
1 & 0
\end{array}\right] .
$$
(a) Determine the value of $K$ resulting in a zero steady-state tracking error when $u(t)$ is a unit step input for $t \geq 0$. The tracking error is defined here as $e(t)=u(t)-y(t)$.
(b) Plot the response to a unit step input and verify that the tracking error is zero for the gain $K$ determined in part (a).

Check back soon!

Problem 29

The block diagram shown in Figure P11.29 is an example of an interacting system. Determine a state variable representation of the system in the form
$$
\begin{aligned}
\dot{\mathbf{x}}(t) & =\mathbf{A x}(t)+\mathbf{B} u(t) \\
y(t) & =\mathbf{C x}(t)+\mathbf{D} u(t)
\end{aligned}
$$
Figure can't copy

Check back soon!
