Calculus

James Stewart

Chapter 16 Vector Calculus - all with Video Answers

Educators

Section 1

Vector Fields

02:24

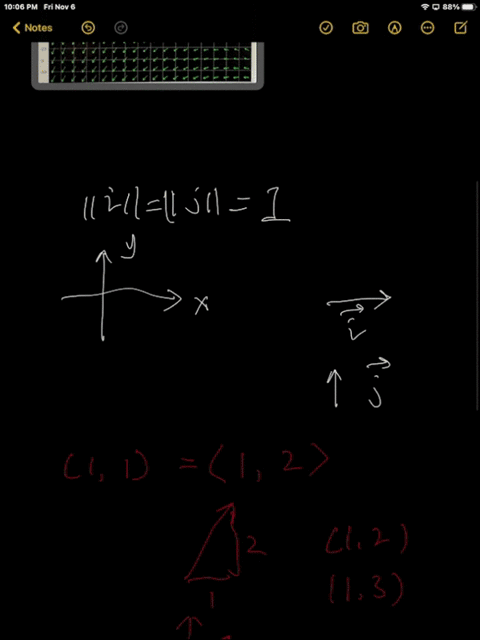

Problem 1

$1-10$ Sketch the vector field $\mathbf{F}$ by drawing a diagram like
Figure 5 or Figure $9 .$

$$\mathbf{F}(x, y)=0.3 \mathbf{i}-0.4 \mathbf{j}$$

Yujian Zeng

Numerade Educator

03:03

Problem 2

$1-10$ Sketch the vector field $\mathbf{F}$ by drawing a diagram like
Figure 5 or Figure $9 .$

$$\mathbf{F}(x, y)=\frac{1}{2} x \mathbf{i}+y \mathbf{j}$$

Yujian Zeng

Numerade Educator

03:38

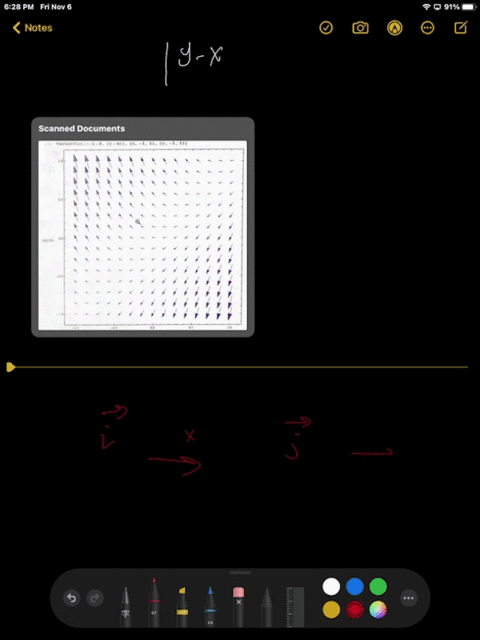

Problem 3

$1-10$ Sketch the vector field $\mathbf{F}$ by drawing a diagram like
Figure 5 or Figure $9 .$

$$\mathbf{F}(x, y)=-\frac{1}{2} \mathbf{i}+(y-x) \mathbf{j}$$

Yujian Zeng

Numerade Educator

02:35

Problem 4

$1-10$ Sketch the vector field $\mathbf{F}$ by drawing a diagram like
Figure 5 or Figure $9 .$

$$\mathbf{F}(x, y)=y \mathbf{i}+(x+y) \mathbf{j}$$

Yujian Zeng

Numerade Educator

03:04

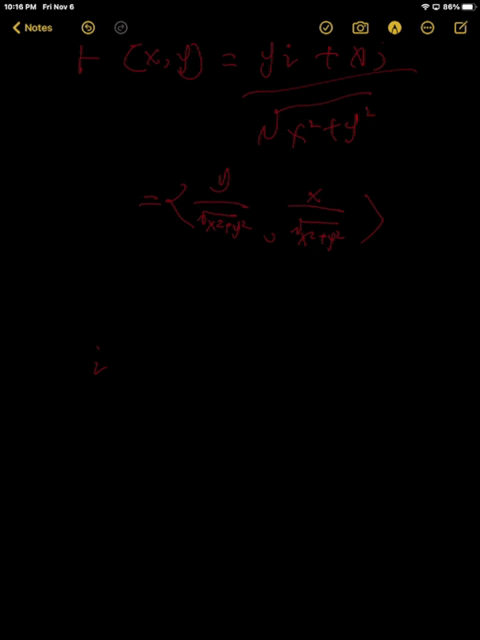

Problem 5

$1-10$ Sketch the vector field $\mathbf{F}$ by drawing a diagram like
Figure 5 or Figure $9 .$

$$\mathbf{F}(x, y)=\frac{y \mathbf{i}+x \mathbf{j}}{\sqrt{x^{2}+y^{2}}}$$

Yujian Zeng

Numerade Educator

03:41

Problem 6

$1-10$ Sketch the vector field $\mathbf{F}$ by drawing a diagram like
Figure 5 or Figure $9 .$

$$\mathbf{F}(x, y)=\frac{y \mathbf{1}-x \mathbf{J}}{\sqrt{x^{2}+y^{2}}}$$

Shu Naito

Numerade Educator

01:27

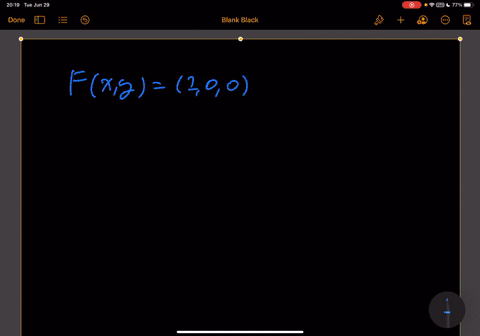

Problem 7

$1-10$ Sketch the vector field $\mathbf{F}$ by drawing a diagram like
Figure 5 or Figure $9 .$

$$\mathbf{F}(x, y, z)=\mathbf{i}$$

Shu Naito

Numerade Educator

03:20

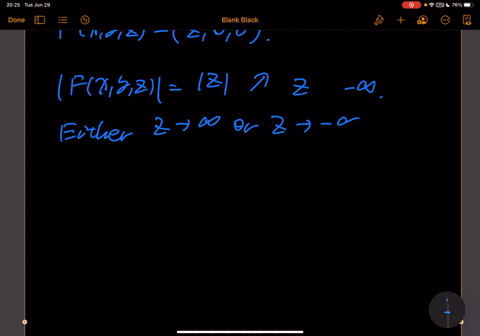

Problem 8

$1-10$ Sketch the vector field $\mathbf{F}$ by drawing a diagram like
Figure 5 or Figure $9 .$

$$\mathbf{F}(x, y, z)=z \mathbf{i}$$

Shu Naito

Numerade Educator

03:37

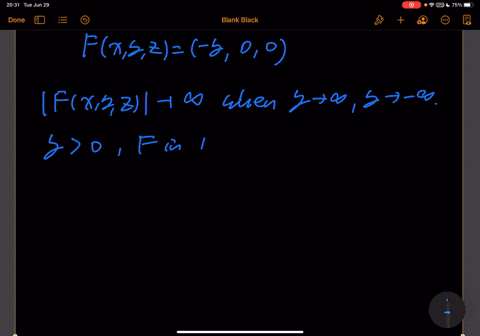

Problem 9

$1-10$ Sketch the vector field $\mathbf{F}$ by drawing a diagram like
Figure 5 or Figure $9 .$

$$\mathbf{F}(x, y, z)=-y \mathbf{i}$$

Shu Naito

Numerade Educator

01:17

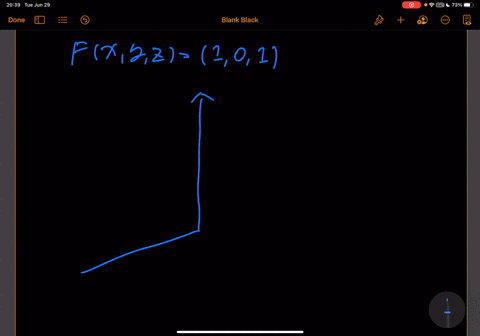

Problem 10

$1-10$ Sketch the vector field $\mathbf{F}$ by drawing a diagram like
Figure 5 or Figure $9 .$

$$\mathbf{F}(x, y, z)=\mathbf{i}+\mathbf{k}$$

Shu Naito

Numerade Educator

View

Problem 11

$11-14$ Match the vector fields $F$ with the plots labeled I-IV.
Give reasons for your choices.

$$\mathbf{F}(x, y)=\langle x,-y\rangle$$

Victor Salazar

Numerade Educator

03:11

Problem 12

$11-14$ Match the vector fields $F$ with the plots labeled I-IV.
Give reasons for your choices.

$$\mathbf{F}(x, y)=\langle y, x-y\rangle$$

Cameron Bunney

Numerade Educator

01:43

Problem 13

$11-14$ Match the vector fields $F$ with the plots labeled I-IV.
Give reasons for your choices.

$$\mathbf{F}(x, y)=\langle y, y+2\rangle$$

Cameron Bunney

Numerade Educator

03:58

Problem 14

$11-14$ Match the vector fields $F$ with the plots labeled I-IV.
Give reasons for your choices.

$$\mathbf{F}(x, y)=\langle\cos (x+y), x\rangle$$

Cameron Bunney

Numerade Educator

01:56

Problem 15

$15-18$ Match the vector fields $\mathbf{F}$ on $\mathbb{R}^{3}$ with the plots labeled
I-IV. Give reasons for your choices.

$$\mathbf{F}(x, y, z)=\mathbf{i}+2 \mathbf{j}+3 \mathbf{k}$$

Cameron Bunney

Numerade Educator

02:17

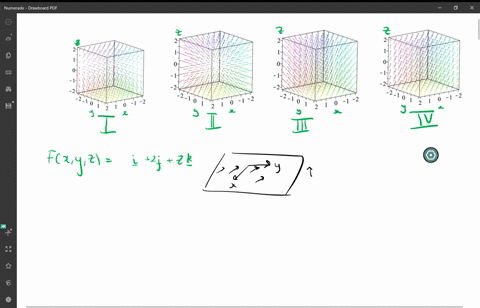

Problem 16

$15-18$ Match the vector fields $\mathbf{F}$ on $\mathbb{R}^{3}$ with the plots labeled
I-IV. Give reasons for your choices.

$$\mathbf{F}(x, y, z)=\mathbf{i}+2 \mathbf{j}+z \mathbf{k}$$

Cameron Bunney

Numerade Educator

02:01

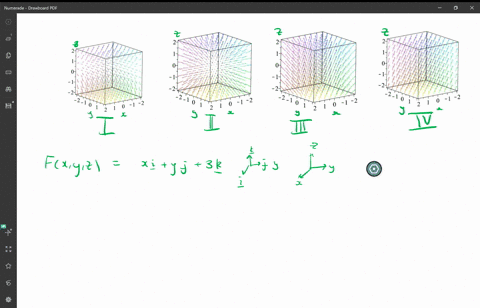

Problem 17

$15-18$ Match the vector fields $\mathbf{F}$ on $\mathbb{R}^{3}$ with the plots labeled
I-IV. Give reasons for your choices.

$$\mathbf{F}(x, y, z)=x \mathbf{i}+y \mathbf{j}+3 \mathbf{k}$$

Cameron Bunney

Numerade Educator

03:41

Problem 18

$15-18$ Match the vector fields $\mathbf{F}$ on $\mathbb{R}^{3}$ with the plots labeled
I-IV. Give reasons for your choices.

$$\mathbf{F}(x, y, z)=x \mathbf{i}+y \mathbf{j}+z \mathbf{k}$$

Cameron Bunney

Numerade Educator

02:33

If you have a CAS that plots vector fields (the command
is field plot in Maple and Plot Vector Field or
Vector Plot in Mathematica), use it to plot
$$\mathbf{F}(x, y)=\left(y^{2}-2 x y\right) \mathbf{i}+\left(3 x y-6 x^{2}\right) \mathbf{j}$$
Explain the appearance by finding the set of points $(x, y)$
such that $\mathbf{F}(x, y)=\mathbf{0} .$

Shu Naito

Numerade Educator

04:14

Problem 20

Let $\mathbf{F}(\mathbf{x})=\left(r^{2}-2 r\right) \mathbf{x},$ where $\mathbf{x}=\langle x, y\rangle$ and $ r=|\mathbf{x}| .$ Use a
CAS to plot this vector field in various domains until you can
see what is happening. Describe the appearance of the plot
and explain it by finding the points where $\mathbf{F}(\mathbf{x})=\mathbf{0}$ .

Cameron Bunney

Numerade Educator

01:50

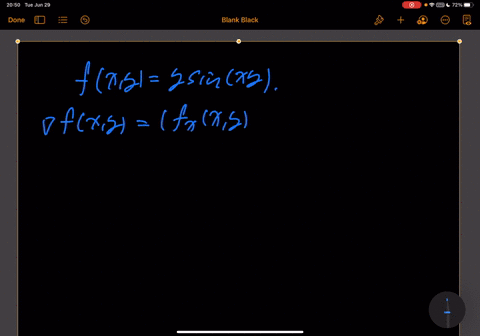

Problem 21

$21-24$ Find the gradient vector field of $f$

$$f(x, y)=y \sin (x y)$$

Shu Naito

Numerade Educator

02:03

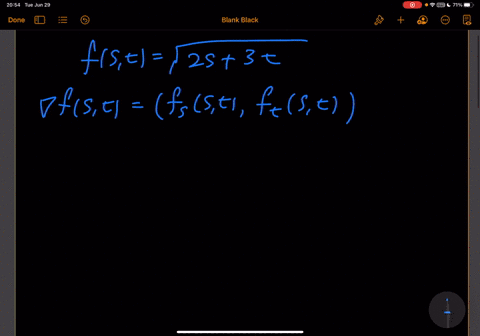

Problem 22

$21-24$ Find the gradient vector field of $f$

$$f(s, t)=\sqrt{2 s+3 t}$$

Shu Naito

Numerade Educator

01:50

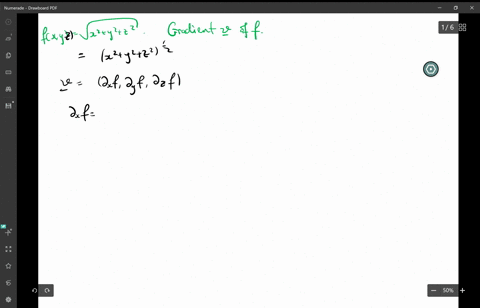

Problem 23

$21-24$ Find the gradient vector field of $f$

$$f(x, y, z)=\sqrt{x^{2}+y^{2}+z^{2}}$$

Cameron Bunney

Numerade Educator

03:23

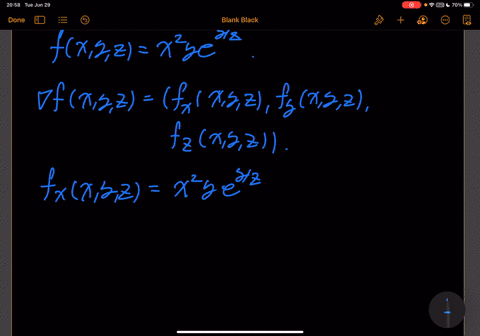

Problem 24

$21-24$ Find the gradient vector field of $f$

$$f(x, y, z)=x^{2} y e^{y / z}$$

Shu Naito

Numerade Educator

03:23

Problem 25

$25-26$ Find the gradient vector field $\nabla f$ of $f$ and sketch it.

$$f(x, y)=\frac{1}{2}(x-y)^{2}$$

Shu Naito

Numerade Educator

03:30

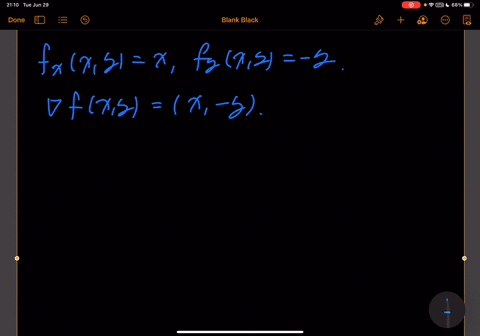

Problem 26

$25-26$ Find the gradient vector field $\nabla f$ of $f$ and sketch it.

$$f(x, y)=\frac{1}{2}\left(x^{2}-y^{2}\right)$$

Shu Naito

Numerade Educator

03:33

Problem 27

$27-28$ Plot the gradient vector field of $f$ together with a contour
map of $f .$ Explain how they are related to each other.

$$f(x, y)=\ln \left(1+x^{2}+2 y^{2}\right)$$

Cameron Bunney

Numerade Educator

03:23

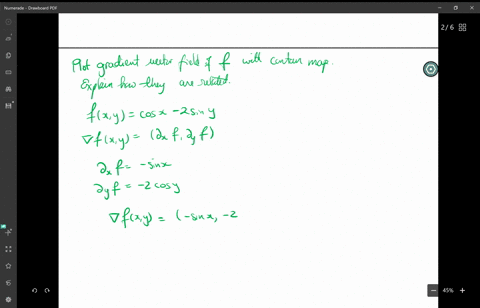

Problem 28

$27-28$ Plot the gradient vector field of $f$ together with a contour
map of $f .$ Explain how they are related to each other.

$$f(x, y)=\cos x-2 \sin y$$

Cameron Bunney

Numerade Educator

01:26

Problem 29

$29-32$ Match the functions $f$ with the plots of their gradient
vector fields labeled I-IV. Give reasons for your choices.

$$f(x, y)=x^{2}+y^{2}$$

Yujian Zeng

Numerade Educator

02:19

Problem 30

$29-32$ Match the functions $f$ with the plots of their gradient
vector fields labeled I-IV. Give reasons for your choices.

$$f(x, y)=x(x+y)$$

Yujian Zeng

Numerade Educator

01:57

Problem 31

$29-32$ Match the functions $f$ with the plots of their gradient
vector fields labeled I-IV. Give reasons for your choices.

$$f(x, y)=(x+y)^{2}$$

Yujian Zeng

Numerade Educator

04:30

Problem 32

$29-32$ Match the functions $f$ with the plots of their gradient
vector fields labeled I-IV. Give reasons for your choices.

$$f(x, y)=\sin \sqrt{x^{2}+y^{2}}$$

Yujian Zeng

Numerade Educator

01:48

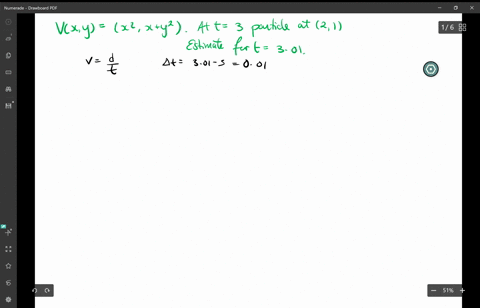

Problem 33

A particle moves in a velocity field $\mathbf{V}(x, y)=\left\langle x^{2}, x+y^{2}\right\rangle$
If it is at position $(2,1)$ at time $t=3,$ estimate its location
at time $t=3.01$

Cameron Bunney

Numerade Educator

01:56

Problem 34

At time $t=1,$ a particle is located at position $(1,3) .$ If it
moves in a velocity field
$$\mathbf{F}(x, y)=\left\langle x y-2, y^{2}-10\right\rangle$$
find its approximate location at time $t=1.05$

Cameron Bunney

Numerade Educator

13:03

Problem 35

The flow lines (or streamlines) of a vector field are the
paths followed by a particle whose velocity field is the
given vector field. Thus the vectors in a vector field are
tangent to the flow lines.
(a) Use a sketch of the vector field $\mathbf{F}(x, y)=x \mathbf{i}-y \mathbf{j}$ to
draw some flow lines. From your sketches, can you
(b) If parametric equations of a flow line are $x=x(t)$ ,
$y=y(t),$ explain why these functions satisfy the differ-
ential equations $d x / d t=x$ and $d y / d t=-y .$ Then solve
the differential equations to find an equation of the flow
line that passes through the point $(1,1)$ .

Shu Naito

Numerade Educator

08:16

Problem 36

(a) Sketch the vector field $\mathbf{F}(x, y)=\mathbf{i}+x \mathbf{j}$ and then
sketch some flow lines. What shape do these flow lines
appear to have?
(b) If parametric equations of the flow lines are $x=x(t)$ ,
$y=y(t),$ what differential equations do these functions
satisfy? Deduce that $d y / d x=x$ .
(c) If a particle starts at the origin in the velocity field given
by $\mathbf{F},$ find an equation of the path it follows.

Shu Naito

Numerade Educator
