Advanced Engineering Mathematics

Erwin Kreyszig

Chapter 10

Vector Integral Calculus. Integral Theorems - all with Video Answers

Educators

Section 4

Green's Theorem in the Plane

Problem 1

Using Green's theorem, evaluate $\int_{c} \mathbf{F}(\mathbf{r}) \cdot d \mathbf{r}$ counterclockwise around the boundary curve $C$ of the region $R$, where
$$\begin{aligned}
&\mathbf{F}=\left[\begin{array}{ll}
\frac{1}{2} x y^{4}, & \left.\frac{1}{2} x^{4} y\right], R \text { the rectangle with vertices }(0,0)
\end{array}\right.\\
&(3,0),(3,2),(0,2)
\end{aligned}$$

Manik Pulyani

Manik Pulyani

Numerade Educator

Problem 2

Using Green's theorem, evaluate $\int_{c} \mathbf{F}(\mathbf{r}) \cdot d \mathbf{r}$ counterclockwise around the boundary curve $C$ of the region $R$, where
$$\begin{aligned}
&\mathbf{P}=\left[\begin{array}{lll}
y & \sin x, & 2 x \cos y
\end{array}\right], R \text { the square with vertices }\\
&\left.(0,0),\left(\frac{1}{2} \pi, 0\right), \frac{1}{2} \pi, \frac{1}{2} \pi\right),\left(0, \frac{1}{2} \pi\right)
\end{aligned}$$

Manik Pulyani

Numerade Educator

Problem 3

Using Green's theorem, evaluate $\int_{c} \mathbf{F}(\mathbf{r}) \cdot d \mathbf{r}$ counterclockwise around the boundary curve $C$ of the region $R$, where
$$\mathbf{F}=\left[-y^{3}, \quad x^{3}\right], C \text { the circle } x^{2}+y^{2}=25$$

Manik Pulyani

Numerade Educator

Problem 4

Using Green's theorem, evaluate $\int_{c} \mathbf{F}(\mathbf{r}) \cdot d \mathbf{r}$ counterclockwise around the boundary curve $C$ of the region $R$, where
$$\begin{aligned}
&\mathbf{F}=\left[\begin{array}{ll}
-e^{3}, & e^{\pi}
\end{array}\right], R \text { the triangle with vertices }(0,0),\\
&(2,0),(2,1)
\end{aligned}$$

Manik Pulyani

Numerade Educator

Problem 5

Using Green's theorem, evaluate $\int_{c} \mathbf{F}(\mathbf{r}) \cdot d \mathbf{r}$ counterclockwise around the boundary curve $C$ of the region $R$, where
$\mathbf{F}=\left[e^{x+v}, \quad e^{x-y}\right], R$ the triangle with vertices (0,0), (1. $1),(1,2)$

Manik Pulyani

Numerade Educator

Problem 6

Using Green's theorem, evaluate $\int_{c} \mathbf{F}(\mathbf{r}) \cdot d \mathbf{r}$ counterclockwise around the boundary curve $C$ of the region $R$, where
$$\mathbf{F}-\left[x \cosh y, \quad x^{2} \sinh y\right], R: x^{2} \leqq y \leqq x, \text { Sketch } R$$.

Manik Pulyani

Numerade Educator

Problem 7

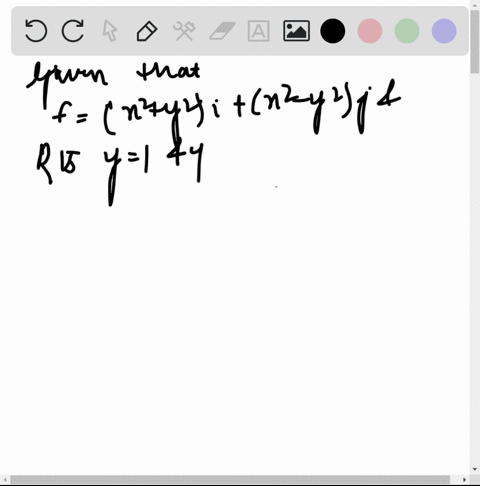

Using Green's theorem, evaluate $\int_{c} \mathbf{F}(\mathbf{r}) \cdot d \mathbf{r}$ counterclockwise around the boundary curve $C$ of the region $R$, where
$$\begin{aligned}
&\mathbf{F}=\left[x^{2}+y^{2}, x^{2}-y^{2}\right], R: 1 \leq y \leq 2-x^{2} . \text { Sketch }\\
& R.
\end{aligned}$$

Manik Pulyani

Numerade Educator

Problem 8

Using Green's theorem, evaluate $\int_{c} \mathbf{F}(\mathbf{r}) \cdot d \mathbf{r}$ counterclockwise around the boundary curve $C$ of the region $R$, where
$$\begin{aligned}
&\mathbf{F}=\left[\begin{array}{ll}
a^{x} \cos y_{1} & -e^{x} \sin y
\end{array}\right], R \text { the semidisk }\\
&x^{2}+y^{2} \leq a^{2}, x \geq 0
\end{aligned}$$

Manik Pulyani

Numerade Educator

Problem 9

Using Green's theorem, evaluate $\int_{c} \mathbf{F}(\mathbf{r}) \cdot d \mathbf{r}$ counterclockwise around the boundary curve $C$ of the region $R$, where
$$\mathbf{F}-\operatorname{grad}\left(x^{3} \cos ^{2}(x y)\right), R \text { the region in } \operatorname{Prob}, 7$$

Manik Pulyani

Numerade Educator

Problem 10

Using Green's theorem, evaluate $\int_{c} \mathbf{F}(\mathbf{r}) \cdot d \mathbf{r}$ counterclockwise around the boundary curve $C$ of the region $R$, where
$$\begin{aligned}
&\mathbf{F}=\left[x \ln y, \quad y e^{x}\right], R \text { the rectangle with vertices }(0,1),\\
&(3,1),(3,2),(0,2)
\end{aligned}$$

Manik Pulyani

Numerade Educator

Problem 11

Using Green's theorem, evaluate $\int_{c} \mathbf{F}(\mathbf{r}) \cdot d \mathbf{r}$ counterclockwise around the boundary curve $C$ of the region $R$, where
$$F=[2 x-3 y, \quad x+5 y], R: 16 x^{2}+25 y^{2} \leq 400, y \geq 0$$

Manik Pulyani

Numerade Educator

Problem 12

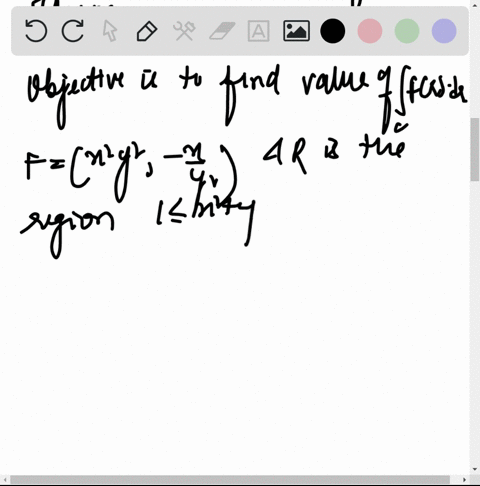

Using Green's theorem, evaluate $\int_{c} \mathbf{F}(\mathbf{r}) \cdot d \mathbf{r}$ counterclockwise around the boundary curve $C$ of the region $R$, where
$\mathbf{F}=\left[x^{2} y^{2}, \quad-x / y^{3}\right], R: 1 \leq x^{2}+y^{2} \leq 4, x \geq 0,$
$y \geq x$. Sketch $R.$

Manik Pulyani

Numerade Educator

Problem 13

Using (9), evaluate $\oint_{O} \frac{\partial w}{\partial n} d s$ counterclockwise over the boundary curve $C$ of the region $R$.
$w=\sinh x, R$ the triangle with vertices (0,0),(2,0) (2,1)

Manik Pulyani

Numerade Educator

Problem 14

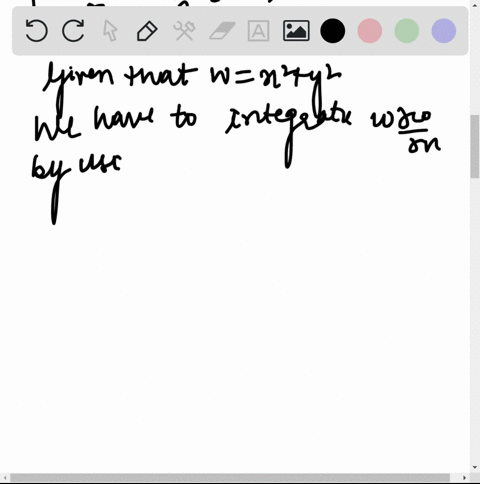

Using (9), evaluate $\oint_{O} \frac{\partial w}{\partial n} d s$ counterclockwise over the boundary curve $C$ of the region $R$.
$w-x^{2}+y^{2}, C ; x^{2}+y^{2}-1 .$ Confirm the answer by direct integration.

Manik Pulyani

Numerade Educator

Problem 15

Using (9), evaluate $\oint_{O} \frac{\partial w}{\partial n} d s$ counterclockwise over the boundary curve $C$ of the region $R$.
$$w=2 \ln \left(x^{2}+y^{2}\right)+x y^{3}, R \cdot t \leq y \leq 5-x^{2}, x \geq 0$$

Manik Pulyani

Numerade Educator

Problem 16

Using (9), evaluate $\oint_{O} \frac{\partial w}{\partial n} d s$ counterclockwise over the boundary curve $C$ of the region $R$.
$$w=x^{3} y+x y^{6}, R: x^{2}+y^{2} \leq 4, y \geq 0$$

Manik Pulyani

Numerade Educator

Problem 17

Apply (4) to figures of your choice whose area can also be obtained by another method and compare the results.

Manik Pulyani

Numerade Educator

Problem 18

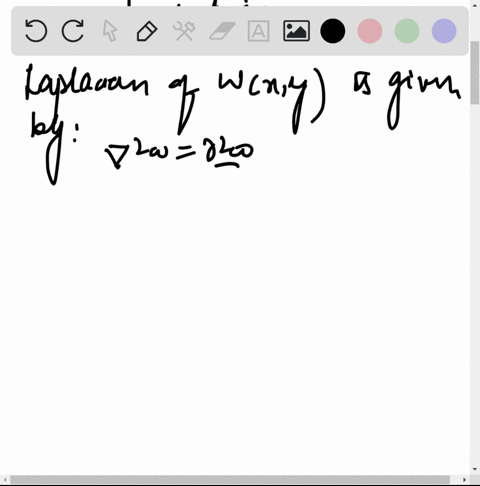

Show that for a solution $w(x, y)$ of Iaplace's equation $\nabla^{2} w=0$ in a region $R$ with boundary curve $C$ and outer unit pormal vector $\mathbf{n},$ (10) $\iint_{\pi}\left[\left(\frac{\partial w}{\partial x}\right)^{2}+\left(\frac{\partial w}{\partial y}\right)^{2}\right] d x d y$ $=\oint_{C} w \frac{\partial w}{\partial n} d r$.

Manik Pulyani

Numerade Educator

Problem 19

Show that $w=2 e^{x} \cos y$ satisfies Laplace's equation $\nabla^{2} w=0$ and, using (10) , integrate $w(\text { \partialw } | \partial n)$ counterclockwise around the boundery curve $C$ of the square $0 \leq x \leq 2,0 \leq y \leq 2$.

Manik Pulyani

Numerade Educator

Problem 20

Let $R$ and $C$ be as in Green's theorem, $\mathbf{r}^{\prime}$ a unit tangent vector, and $\mathbf{n}$ the outer unit normal vector of $C(\text { Fig. } 238 \text { in Example } 4 \text { ). Show that }(1)$ may be written (11) $\quad \iint_{K} \operatorname{div} \mathbf{F} d \mathbf{x} d y=\oint_{C} \mathbf{F} \cdot \mathbf{n}$ $d s$
or (12) $\quad \iint_{\Omega}(\operatorname{curl} \mathbf{F}) \cdot \mathbf{k} d x d y-\oint_{C} \mathbf{P} \cdot \mathbf{r}^{\prime} d s$ where $k$ is a unit vector perpendicular to the $x y$ -plane. Verify (11) and (12) for $\mathbf{P}=[7 x,-3 y]$ and $C$ the circle $x^{2}+y^{2}=4$ as well as for an example of your own choice.

Manik Pulyani

Numerade Educator
