R. C. Hibbeler
ISBN #9780133254426
9th Edition
1,383 Questions
Homework Questions
Mechanics of Materials is a comprehensive textbook that explores the fundamental behavior of materials under a variety of loadings, from stress and strain to torsion, bending, and axial loads. The book methodically develops essential analytical tools—such as free-body diagrams, equilibrium equations, and Mohr’s circle—while integrating design methodologies like Allowable Stress Design and Limit State Design to address uncertainties in material behavior. Each chapter builds on the previous ones, serving as integral “characters” in a cohesive narrative that guides readers through experimental testing, theoretical derivations, and practical applications in structural design. Overall, the text not only establishes a solid foundation in mechanical properties and analysis but also empowers engineers to design safe, efficient, and resilient structures.
Chapter 1
Stress
Chapter 2
Strain
Chapter 3
Mechanical Properties of Materials
Chapter 4
Axial Load
Chapter 5
Torsion
Chapter 6
Bending
Chapter 7
Transverse Shear
Chapter 8
Combined Loadings
Chapter 9
Stress Transformation
Chapter 10
Strain Transformation
Chapter 11
Design of Beams and Shafts
Chapter 12
Deflection of Beams and Shafts
View More
Chapter 13
Buckling of Columns
Chapter 14
Energy Methods
Problem 1
The A992 steel rod is subjected to the loading shown. If the cross-sectional area of the rod is $60 \mathrm{mm}^{2}$, determine the displacement of $B$ and $A,$ Neglect the size of the couplings at $B, C,$ and $D$.
Rashmi Sinha Numerade Educator
Problem 2

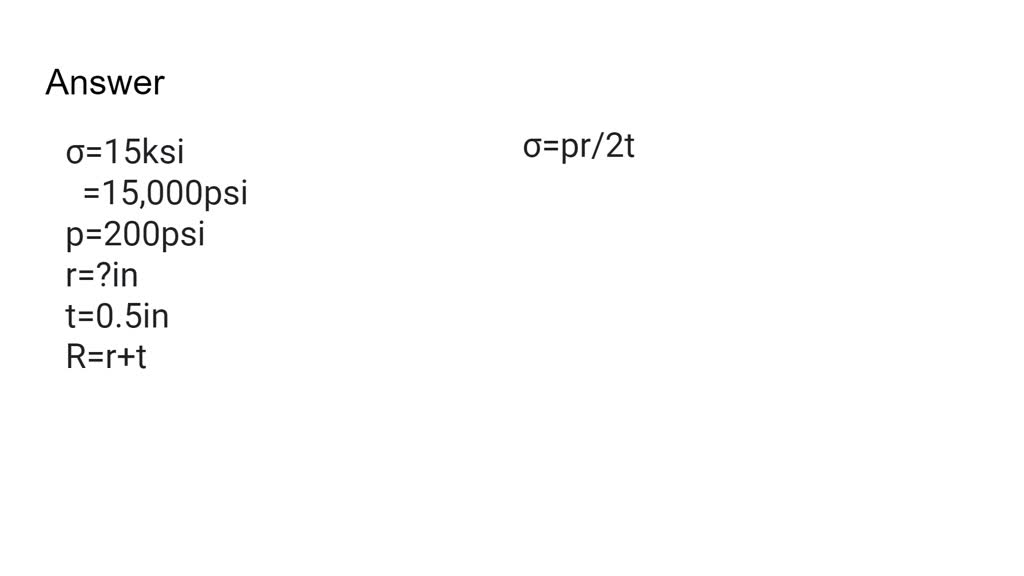

A pressurized spherical tank is to be made of 0.5 -in.-thick steel. If it is subjected to an internal pressure of $p=200$ psi, determine its outer radius if the maximum normal stress is not to exceed 15 ksi.
Alayne Nelson Numerade Educator
Problem 3
The aircraft link is made from an A992 steel rod. Determine the smallest diameter of the rod, to the nearest $\frac{1}{16}$ in., that will support the load of 4 kip without buckling. The ends are pin connected.
Satpal Satpal Numerade Educator
Problem 4
The rigid beam is supported by a pin at $A$ and wires $B D$ and $C E .$ If the load $\mathbf{P}$ on the beam causes the end $C$ to be displaced $10 \mathrm{mm}$ downward, determine the normal strain developed in wires $C E$ and $B D.$
Narayan Hari Numerade Educator
Problem 5
An air-filled rubber ball has a diameter of 6 in. If the air pressure within it is increased until the ball's diameter becomes 7 in., determine the average normal strain in the rubber.
Problem 6

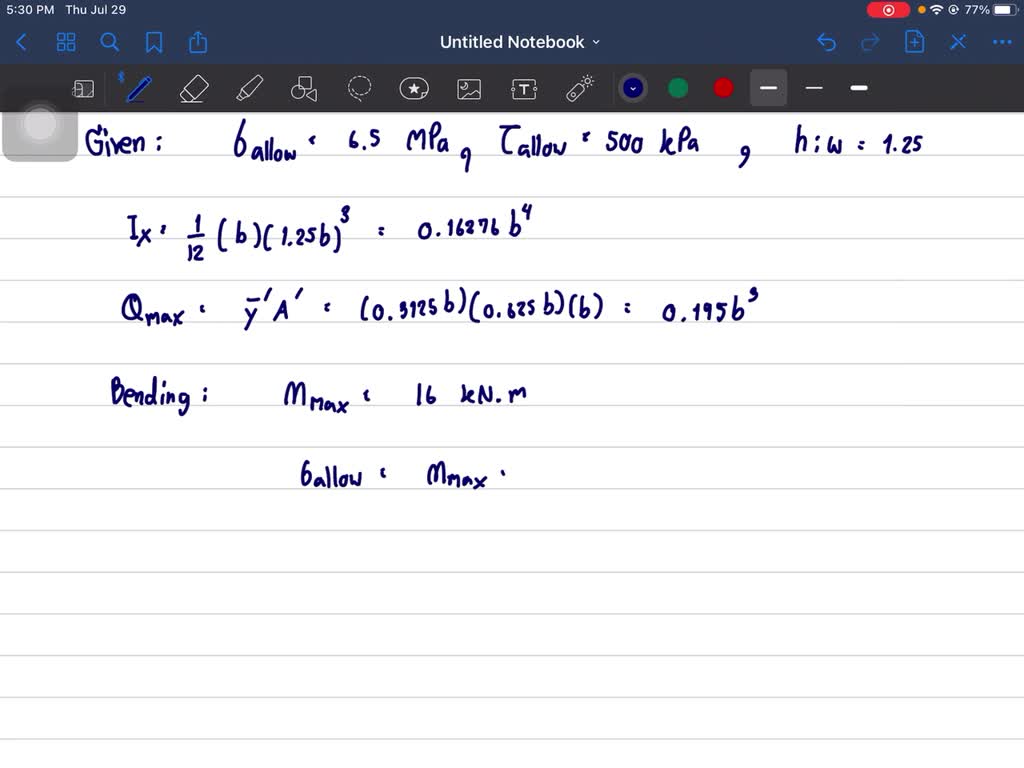

The simply supported beam is made of timber that has an allowable bending stress of $\sigma_{\text {allow }}=6.5 \mathrm{MPa}$ and an allowable shear stress of $\tau_{\text {allow }}=500$ kPa. Determine its dimensions if it is to be rectangular and have a height-to-width ratio of 1.25.
Chai Santi Numerade Educator
