- 4.49 A large cubical block of ice of mass M=64 kg and sides of length L=0.40 m is held stati

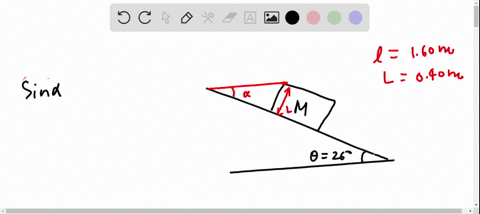

step 1 So here we have the freebided diagram of the system, and we can first find alpha. Alpha, in this

- 4.49 A large cubical block of ice of mass M=64 kg and...

- 4.49 A large cubical block of ice of mass $M=64 \mathrm{~kg}$ and sides of length $L=0.40 \mathrm{~m}$ is held stationary on a frictionless ramp. The ramp is at an angle of $\theta=26^{\circ}$ above the horizontal. The ice cube is held in place by a rope of negligible mass and length $l=1.6 \mathrm{~m}$. The rope is attached to the surface of the ramp and to the upper edge of the ice cube, a distance $I$ above the surface of the ramp. Find the tension in the rope.

Key Concepts

Equilibrium of Forces

This concept involves setting the net force on a system to zero when the system is in a state of equilibrium. In mechanics, especially for objects on inclined planes or connected by ropes, the forces such as gravity, normal force, and tension must balance so that there is no net acceleration. The equilibrium conditions are essential for solving for unknown forces by writing equations for both the components along the incline and those perpendicular to it.

Force Decomposition

Force decomposition is the process of breaking a force into its components along specified axes, typically parallel and perpendicular to an inclined plane. This is crucial because gravitational force, which acts vertically downward, must be resolved into components that align with the geometry of the system to properly analyze the balance of forces. Decomposition allows for the clear identification of contributing forces and simplifies the application of Newton's laws.

Torque (Moment) Equilibrium

Torque equilibrium refers to the condition where the sum of the torques (moments) about any pivot point for a system in static equilibrium is zero. In problems involving forces applied at different points or angles, calculating moments provides another equation to solve for unknowns such as tension. By choosing an appropriate pivot point and setting up moment equations, one can effectively deal with rotational aspects of the equilibrium problem.

Lever Arm and Moment Arms

The lever arm is the perpendicular distance from the pivot point to the line of action of a force, and it is critical in calculating the torque produced by that force. The concept of moment arms simplifies the evaluation of rotational effects by quantifying how a force’s location relative to a pivot influences its tendency to cause rotation. Understanding lever arms allows for proper formulation of the moment balance equations, essential in problems where the geometry of the object matters.

Geometric Relationships in Physics Problems

In many mechanics problems, especially those involving inclined planes or objects with specific shapes, it is necessary to apply geometric relationships to relate various distances, angles, and dimensions. These relationships help determine the orientation and effective lengths of forces acting on the object. By incorporating geometry, one can accurately resolve forces into components and determine lever arms, which are critical for solving both force and moment equilibrium equations.

Transcript
