1,3 -Cyclobutadiene is a rectangular molecule with two shorter double bonds and two longer singl

step 1 So they tell us that 1 -3 cyclobedo -dine is a rectangular molecule with two shorter double bond

1,3 -Cyclobutadiene is a rectangular molecule with two...

Key Concepts

Molecular Connectivity and Valid Resonance

A fundamental requirement for true resonance forms is that the arrangement of atoms (the molecular skeleton) remains unchanged between the structures. If a proposed structure alters the positions of bonds or the connectivity of atoms—instead of simply shifting electrons—it is not a resonance form but rather a distinct isomer or an entirely different molecule. In the context of cyclobutadiene, the structures in question do not maintain identical connectivity when the positions of the double and single bonds are swapped, hence they do not qualify as resonance forms.

Geometric Distortion and Antiaromaticity

Cyclobutadiene is an antiaromatic molecule that, in theory, could adopt a square geometry allowing for delocalized ?-electrons. However, due to instability associated with antiaromaticity, the molecule undergoes a distortion to a rectangular shape, localizing the double bonds in fixed positions. This distortion prevents the free-electron delocalization typically depicted by resonance and means that structures showing alternative placements of double bonds do not accurately represent the real electronic structure of the rectangular cyclobutadiene.

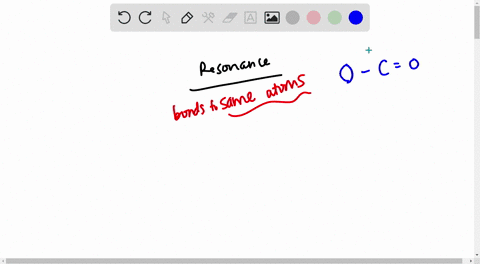

Resonance Structures

Resonance structures are alternate Lewis representations of the same molecule that show different distributions of electrons (typically in the form of ?-electrons) while keeping the same overall connectivity and positions of the nuclei. They are purely conceptual and indicate delocalization of electrons in a molecule, and each valid resonance form must have the same bonding framework and agreement in the locations of atoms.
