(1I) A satellite dish is about 0.5 m in diameter. According to the user's manual, the dish has t

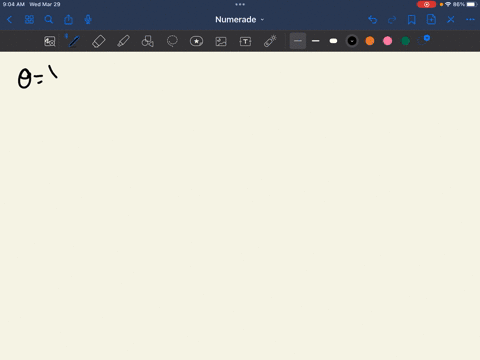

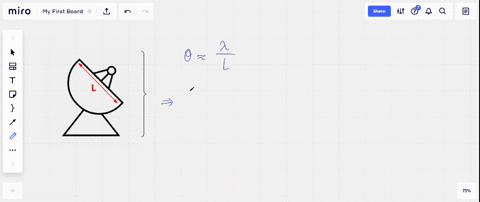

step 1 So in this question, we have a satellite dish that is pointing to the satellite. And we allow an

(1I) A satellite dish is about 0.5 m in diameter. According...

(1I) A satellite dish is about 0.5 $\mathrm{m}$ in diameter. According to the user's manual, the dish has to be pointed in the direction of the satellite, but an error of about $2^{\circ}$ to either side is allowed without loss of reception. Estimate the wavelength of the electromagnetic waves (speed = $3 \times 10^{8} \mathrm{m} / \mathrm{s} )$ received by the dish.

Key Concepts

Diffraction Limit

The diffraction limit is a fundamental principle that describes how the finite size of an aperture, such as a satellite dish, imposes limits on the resolution of a system. In optics and antenna theory, this limit determines the smallest angular separation that can be resolved, and it is typically given by the ratio of the wavelength being observed to the size of the aperture. This relationship is key for estimating the wavelength of electromagnetic waves in systems where the beam width or angular tolerance is known.

Aperture Antenna Theory

Aperture antennas, including satellite dishes, operate by collecting electromagnetic waves over a physical area and focusing them. The size and shape of the antenna determine its directivity and gain. The diffraction pattern produced by the aperture not only governs the beamwidth of the antenna but also informs us about the underlying wavelength of the signals being received. This concept is essential in linking physical dimensions and allowed angular errors to the frequency characteristics of the received electromagnetic waves.

Electromagnetic Wave Fundamentals

Electromagnetic waves are characterized by their wavelength, frequency, and speed, which are mathematically related by the equation ? = c/f, where c is the speed of light. In many practical scenarios, such as satellite communications, estimating one of these parameters based on physical constraints (like dish size and angular error) is a common application. Understanding these relationships is fundamental to problems in radio, microwave, and optics.
