8-31 The radiator of a steam heating system has a volume of 20 L and is filled with superheated

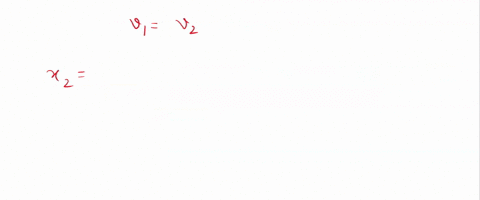

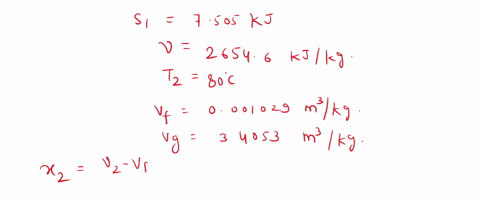

step 1 Hi friends, given volume of radiator 20 liter. Initial specific volume we have to find at temper

8-31 The radiator of a steam heating system has a volume of...

$8-31$ The radiator of a steam heating system has a volume of $20 \mathrm{~L}$ and is filled with superheated water vapor at $200 \mathrm{kPa}$ and $200^{\circ} \mathrm{C}$. At this moment both the inlet and the exit valves to the radiator are closed. After a while it is observed that the temperature of the steam drops to $80^{\circ} \mathrm{C}$ as a result of heat transfer to the room air, which is at $21^{\circ} \mathrm{C}$. Assuming the surround ings to be at $0^{\circ} \mathrm{C}$, determine $(a)$ the amount of heat transfer to the room and $(b)$ the maximum amount of heat that can be

Key Concepts

Maximum Extractable Heat (Thermodynamic Efficiency)

Determining the maximum amount of heat that can be transferred or extracted involves the concept of thermodynamic efficiency and often refers to limits established by the second law of thermodynamics, like those defined by Carnot efficiency. This concept emphasizes the bounds of performance for any heat exchange process, guiding how much useful energy can theoretically be harnessed from a temperature difference between a system and its environment.

Constant Volume Process

A constant volume process occurs in a system where the volume remains fixed throughout the process, implying that any heat transfer results in changes in pressure and temperature rather than in volume work. Analyzing such a process is fundamental when the container’s boundaries do not allow expansion or compression, thus simplifying the energy balance calculations.

Closed System Process

In a closed system, the mass of the working fluid remains constant with fixed boundaries such that no mass enters or leaves the system. This concept is central to analyzing changes of thermodynamic properties like temperature, pressure, and volume, where any energy exchange occurs only via work or heat transfer to or from the environment.

Superheated Vapor

Superheated vapor refers to a state in which a substance is at a temperature higher than its saturation temperature at a given pressure, and exists entirely in the vapor phase. This concept is key in understanding that the fluid does not undergo phase change upon initial cooling until reaching conditions near its saturation point, and it influences calculations of properties such as specific volume and internal energy.

Heat Transfer

Heat transfer is the process by which thermal energy is exchanged between a system and its surroundings due to a temperature difference. This principle enables the quantification of energy lost or gained by the system during processes such as cooling, and it is essential for determining the performance and efficiency of thermal systems.
