8 Water enters a pump at 100 kPa and 30^∘ C at a rate of 1.35 kg / s and leaves at 4 MPa. If th

step 1 Hi everyone, the actual power output is defined as mass flow rate into specific volume P2 minus

8 Water enters a pump at 100 kPa and 30^∘ C at a rate of...

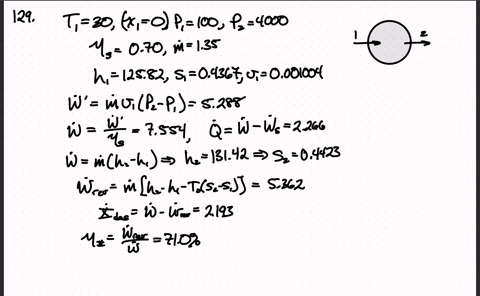

$8$ Water enters a pump at $100 \mathrm{kPa}$ and $30^{\circ} \mathrm{C}$ at a rate of $1.35 \mathrm{~kg} / \mathrm{s}$ and leaves at $4 \mathrm{MPa}$. If the pump has an isentropic efficiency of 70 percent, determine $(a)$ the actual power input, (b) the rate of frictional heating, (c) the exergy destruction, and (d) the second-law efficiency for an environment temperature of $20^{\circ} \mathrm{C}$

$8$ Water enters a pump at $100 \mathrm{kPa}$ and $30^{\circ} \mathrm{C}$ at a rate of $1.35 \mathrm{~kg} / \mathrm{s}$ and leaves at $4 \mathrm{MPa}$. If the pump has an isentropic efficiency of 70 percent, determine $(a)$ the actual power input,
(b) the rate of frictional heating, (c) the exergy destruction, and
(d) the second-law efficiency for an environment temperature of $20^{\circ} \mathrm{C}$

Key Concepts

Frictional Heating

Frictional heating refers to the generation of heat due to viscous effects and friction within the fluid and between the fluid and the pump components. This phenomenon is a key source of inefficiency in real pumping systems, as it represents a conversion of mechanical energy into thermal energy, contributing to energy losses that must be considered in both first-law (energy) and second-law (exergy) analyses.

Second-Law Efficiency

Second-law efficiency, or exergetic efficiency, compares the actual performance of a process to the ideal reversible scenario, taking into account the degradation of energy quality due to irreversibilities. It is the ratio of the useful work output (or minimized work input) predicted by an ideal analysis to the actual work input required, providing insight into how effectively a system uses energy from the standpoint of the second law of thermodynamics.

Exergy Analysis

Exergy analysis evaluates the quality or usefulness of energy within a system by determining the maximum possible work output when the system is brought into equilibrium with its environment. Exergy destruction quantifies the irreversibilities in the process, representing the portion of the energy that is degraded due to losses such as friction and non-ideal heat transfers. This concept is essential for understanding how much potential work is wasted in real systems.

Isentropic Efficiency

Isentropic efficiency is a measure of the performance of devices such as pumps and compressors, defined as the ratio of the ideal (isentropic) work required to produce a certain pressure increase to the actual work input required. It quantifies the deviation from the ideal process due to irreversibilities and losses in the system. Lower isentropic efficiency indicates greater energy losses during operation.

Isentropic Process

An isentropic process is an idealized thermodynamic process that is both adiabatic and reversible, meaning that there is no heat transfer and no entropy generation. In the context of pump analysis, the isentropic process provides a benchmark (the ideal case) against which the actual performance of the pump is compared. This helps in quantifying how real-world effects such as friction and other irreversibilities deviate from the ideal behavior.

Pump Energy Analysis

Pump energy analysis involves calculating the work done by the pump on the fluid by considering the mass flow rate and the change in specific energy properties across the pump. This analysis is crucial for determining the actual power input required to attain a desired pressure increase across the pump, taking into account the energy consumed due to friction and other losses.
