A 15.0 -m uniform ladder weighing 500 N rests against a frictionless wall. The ladder makes a 60

step 1 So we've told we have a uniform ladder that weighs 500 newtons that's against a frictionless wal

A 15.0 -m uniform ladder weighing 500 N rests against a...

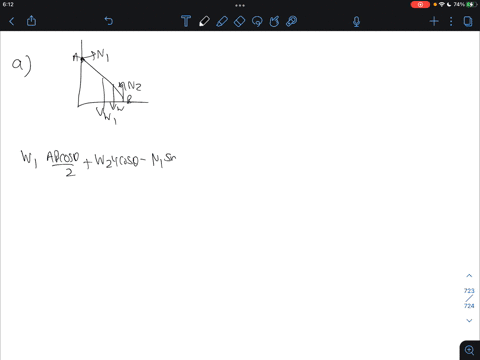

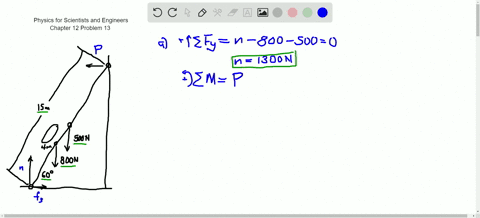

A 15.0 -m uniform ladder weighing 500 $\mathrm{N}$ rests against a frictionless wall. The ladder makes a $60.0^{\circ}$ angle with the horizontal. (a) Find the horizontal and vertical forces the ground exerts on the base of the ladder when an 800-N firefighter has climbed 4.00 $\mathrm{m}$ along the ladder from the bottom. (b) If the ladder is just on the verge of slipping when the firefighter is 9.00 $\mathrm{m}$ from the bottom, what is the coefficient of static friction between ladder and ground?

Key Concepts

Static Equilibrium

This concept refers to analyzing systems in which the sum of all forces and the sum of all torques (moments) are zero. In problems like the ladder scenario, ensuring that both the translational and rotational motions are absent is vital for determining unknown forces and torques acting on the system.

Force Resolution

This involves breaking vector quantities, such as forces, into their horizontal and vertical components. Doing so simplifies the process of applying equilibrium conditions to each direction separately, which is essential in solving for reaction forces in structures.

Torque (Moment) Equilibrium

Torque equilibrium requires that the sum of all torques about any chosen pivot point must be zero in a static system. By selecting an appropriate pivot, such as the base of a ladder, one can account for the lever arms of different forces and solve for unknown variables like reaction forces or friction coefficients.

Static Friction

Static friction is the force that resists the initiation of sliding motion between two surfaces. It is characterized by a maximum value proportional to the normal force, defined by the coefficient of static friction. Understanding this relationship is crucial when analyzing conditions just before a system begins to slip.

Center of Mass

The center of mass of an object is the point at which its mass can be considered to be concentrated. For uniform bodies, this is typically at the geometric center. In equilibrium problems, knowing the position of the center of mass helps in calculating torques produced by the object's weight.
