A 1.75 -kN.m torque is applied to the solid cylinder shown. Determine (a) the maximum shearing s

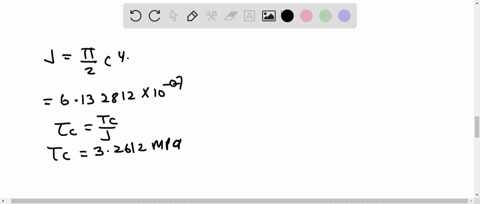

step 1 Let's first write the equation of maximum shear stress in shaft as tau is equal to tc upon j. Th

A 1.75 -kN.m torque is applied to the solid cylinder shown....

Key Concepts

Torsion in Circular Shafts

This concept involves understanding how an applied torque is transmitted through a circular shaft. The analysis typically uses the relationship between the torque, the polar moment of inertia, and the resulting shear stress, which is assumed to be distributed linearly over the cross?section in many simple cases.

Polar Moment of Inertia

The polar moment of inertia is a geometric property of a cross section that measures its resistance to torsion. It plays a similar role to the moment of inertia in bending, and it is calculated by integrating the square of the distance from the center to each differential area element over the cross section.

Shear Stress Distribution in Torsion

This key concept refers to the variation of shear stress across the cross section of a shaft when it is subjected to a torque. The shear stress is typically highest at the outer surface and zero at the center, following a linear distribution with respect to the radial position in a circular section.

Torque Contribution of Composite Regions

In a composite or multi-region shaft, the overall torque is distributed among different regions based on their geometry, especially the polar moment of inertia of each region. Understanding this concept is essential for determining how much of the applied torque is carried by a particular core or segment within the entire cross section.
