A 2.00-cm-tall object is 30.0 cm in front of a converging lens that has a focal length of 18.0

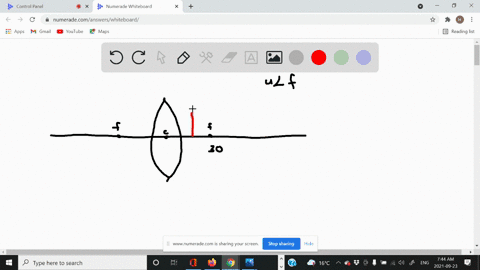

step 1 Hello, our lens has focal length of 30. There's a convex lens and the object is placed at a dist

A 2.00-cm-tall object is 30.0 cm in front of a converging...

A 2.00-cm-tall object is $30.0 \mathrm{~cm}$ in front of a converging lens that has a focal length of $18.0 \mathrm{~cm} .$ (a) Use the lens equation and (b) a ray diagram to describe the type, location, and height of the image that is formed. Example $\underline{24-5}$

Key Concepts

Ray Diagrams

Ray diagrams are a pictorial method used to trace the paths of light rays through a lens to determine the position, orientation, and size of the image. By drawing key rays such as those parallel to the principal axis and those passing through the focal point or optical center, one can visually construct the behavior of light and verify the results obtained by the lens equation.

Real and Inverted Image Formation

Converging lenses can produce real images when the object is placed beyond the focal length. These real images are typically inverted with respect to the object, as both the analytical lens equation and the ray diagram approach confirm. This concept is essential for understanding how light converges to form images in practical optical devices.

Lens Equation

The lens equation (1/f = 1/do + 1/di) is a fundamental relation in geometrical optics that connects the focal length of a lens (f), the object distance (do), and the image distance (di). It allows one to calculate the unknown distance when the other two are known, hence playing a critical role in determining where an image will form relative to a lens.

Magnification

Magnification in lens systems is defined as m = hi/ho = -di/do, where hi is the image height and ho is the object height. The negative sign indicates whether the image is inverted relative to the object, while the absolute value of magnification reveals the size scaling between the object and the image.
