A 200 g block hangs from a spring with spring constant 10 N...

A $200 \mathrm{g}$ block hangs from a spring with spring constant $10 \mathrm{N} / \mathrm{m}$ At $t=0$ s the block is $20 \mathrm{cm}$ below the equilibrium point and moving upward with a speed of $100 \mathrm{cm} / \mathrm{s}$. What are the block's a. Oscillation frequency? b. Distance from cquilibrium when the speed is $50 \mathrm{cm} / \mathrm{s} ?$ c. Position at $t=1.0 \mathrm{s} ?$

A $200 \mathrm{g}$ block hangs from a spring with spring constant $10 \mathrm{N} / \mathrm{m}$ At $t=0$ s the block is $20 \mathrm{cm}$ below the equilibrium point and moving upward with a speed of $100 \mathrm{cm} / \mathrm{s}$. What are the block's
a. Oscillation frequency?

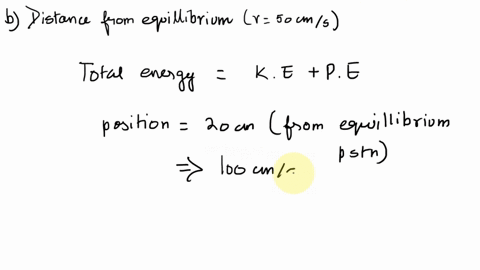

b. Distance from cquilibrium when the speed is $50 \mathrm{cm} / \mathrm{s} ?$
c. Position at $t=1.0 \mathrm{s} ?$

Key Concepts

Amplitude and Phase Determination in SHM

For a mass-spring oscillator, the motion is typically expressed as a sinusoidal function with an amplitude and a phase constant. These parameters are established by applying the system's initial conditions—initial displacement and velocity—which tailor the general solution to the specific motion of the block.

Equilibrium Position in Vertical Spring Systems

In vertical spring systems, the equilibrium position is shifted from the spring's natural length due to the weight of the attached mass. By defining displacement with respect to this static equilibrium, the influence of gravitational forces is effectively neutralized in the equation of motion, allowing the system to be analyzed as a standard harmonic oscillator.

Simple Harmonic Motion

Simple harmonic motion (SHM) describes the oscillatory motion where the restoring force is directly proportional to the displacement from an equilibrium position. In the context of a mass-spring system, this results in sinusoidal oscillations with constant amplitude and frequency under ideal conditions.

Angular Frequency and Frequency

The angular frequency (?) of a mass-spring system is determined by the spring constant and the mass using the relation ? = ?(k/m), which sets the rate of oscillation. The oscillation frequency (f) is given by dividing the angular frequency by 2? (f = ?/2?), making it a fundamental parameter to describe how many cycles occur per unit time.
