A 2.75 kg cat moves in a straight line (the x -axis)....

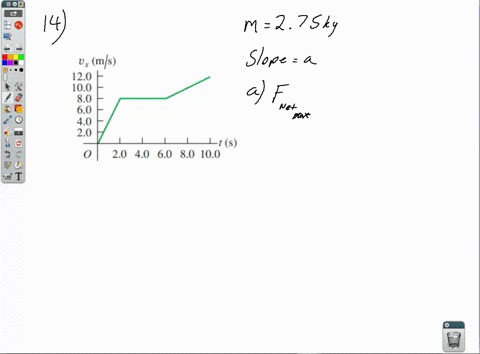

A $2.75 \mathrm{~kg}$ cat moves in a straight line (the $x$ -axis). Figure E4.14 shows a graph of the $x$ component of this cat's velocity as a function of time. (a) Find the maximum net force on this cat. When does this force occur? (b) When is the net force on the cat equal to zero? (c) What is the net force at time $8.5 \mathrm{~s} ?$

Key Concepts

Instantaneous Acceleration

This concept refers to the rate of change of velocity at a specific moment in time. It can be determined from a velocity-time graph by calculating the slope of the tangent line at the point of interest. Instantaneous acceleration is crucial for determining the net force on an object at a particular time, as it directly influences the force via Newton's Second Law.

Velocity-Time Graph Analysis

Analyzing a velocity-time graph involves understanding how the velocity of an object changes over time. Key features of the graph, such as slopes and flat segments, indicate periods of acceleration or constant velocity. This analysis is essential for determining when the net force is at its maximum, when it is zero (indicating no acceleration), and for calculating the net force at any given time by linking the slope of the graph (acceleration) with the object's mass.

Newton's Second Law

This principle states that the net force acting on an object is equal to the mass of the object multiplied by its acceleration (F = ma). It serves as the fundamental relationship between force, mass, and acceleration, allowing us to compute one if the other two are known. In dynamics problems, such as analyzing motion from a velocity-time graph, it provides the basis for translating acceleration data into net force values.

Transcript

00:01 All right, so this is a graphical interpretation problem.

00:05 And in part a, we are asked to find what moments this moving cat experiences its greatest force? well, this is a plot of velocity as a function of time.

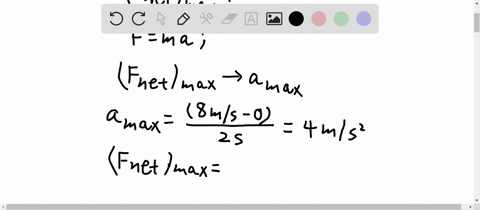

00:18 So we're first going to have to find the maximum acceleration before we can find the magnitude of the maximum force.

00:26 Because it's a straight line, it means that there was constant acceleration.

00:31 We basically want to find the time interval of this graph, where the slope is the steepest, and i believe that is the beginning of the graph from zero to two seconds.

00:42 So in other words, we're going to take the time, difference on the bottom, 2 .0 minus zero, and then the respective velocities of that interval, which were 8 .0, and then also zero respectively.

00:54 And so we have found that the maximum velocity over, that time interval was 4 .0 meters per square second.

01:05 Good, good, good.

01:06 And then we're just one step away from finding the maximum force.

01:09 We just go ahead and apply newton's second law f equals ma, but specifically for the maximal case.

01:17 Plug in the mass of the cat, which is given to us as 2 .75 kilograms.

01:22 And the acceleration, we just solved for 4 .0 and gets that the maximum of a lot, sorry, maximum force, is 11 newton's.

01:39 And they also wants to specify what time interval this occurred over.

01:43 This was on the time interval of 0, or t is between 0 and 2 .0 second.

01:52 Good, good, good.

01:54 So in part b, they want to know the time interval over which the force is equal to 0.

01:59 So the force is equal to 0.

02:00 And that means the acceleration at that point time is equal to 0, or that the velocity was constant.

02:06 Because there's no acceleration...
