A 3000 kg truck is about to tow a 1250 kg car up a hill that makes an angle of α=10^∘ with respe

step 1 Good day everyone. So based on here, taking car truck group as a system. So let's say we have th

A 3000 kg truck is about to tow a 1250 kg car up a hill that...

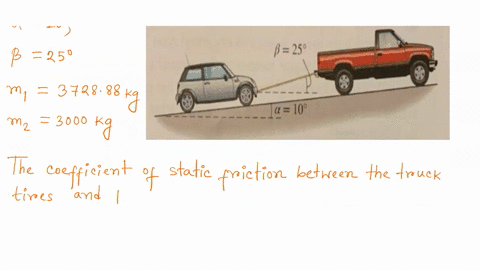

A $3000 \mathrm{kg}$ truck is about to tow a $1250 \mathrm{kg}$ car up a hill that makes an angle of $\alpha=10^{\circ}$ with respect to the horizontal. The rope attached from the truck to the car makes an angle of $\beta=25^{\circ}$ with respect to the horizontal. The coefficient of static friction between the truck tires and the road is $0.60 .$ Ignore friction on the car's tires due to the road. Starting from rest, they move with constant acceleration until, $400 \mathrm{m}$ up the hill, their speed is $11 \mathrm{m} / \mathrm{s}$. What is the total frictional force on the truck's tires? [Hint: You'll need to apply Newton's second law to at least one of three systems- the car, the truck, or the car $+$ rope $+$ truck. Consider the options and choose the easiest method. You may not need all of the given information.]

Key Concepts

Static Friction and Traction Forces in Vehicles

Vehicles rely on the static friction between the tires and the road to generate the traction force necessary for acceleration. The static frictional force, which in optimal situations can be up to ?_s times the normal force, is not always fully utilized but is the mechanism by which the engine’s force is transmitted to overcome opposing forces such as gravity and inertia.

Kinematics of Constant Acceleration

The kinematic equations describe relationships between displacement, initial and final velocities, acceleration, and time when acceleration is constant. In problems like these, one often uses these equations to determine the acceleration of the system from given distance and velocity data, which then feeds into force calculations via Newton's second law.

Resolution of Gravitational Forces on an Incline

When dealing with motion on an incline, the gravitational force acting on an object is resolved into two components: one perpendicular to the surface (which affects the normal force) and one parallel to the surface (m * g * sin?), which opposes or assists the motion along the incline. This decomposition is crucial for analyzing motion and forces in scenarios involving inclined planes.

Newton's Second Law applied to a System

When analyzing multiple objects that are connected or moving together, Newton's second law (F_net = m_total * a) can be used on the entire system. This approach simplifies the problem by canceling internal forces, such as tensions, allowing us to equate the net external forces—such as gravity and friction—with the total mass of the system times its acceleration.
