A 60-kg engine operates at 2000 r / min and has a rotating unbalance of 0.2 kg-m. Can an isolat

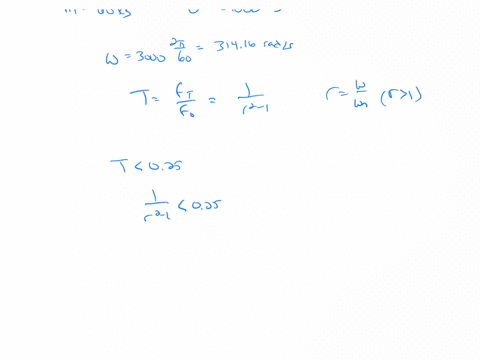

step 1 Here, f -not is equal to u omega -squared, which is just going to be omega -squared because u is

A 60-kg engine operates at 2000 r / min and has a rotating...

A $60-\mathrm{kg}$ engine operates at $2000 \mathrm{r} / \mathrm{min}$ and has a rotating unbalance of $0.2 \mathrm{~kg}-\mathrm{m}$. Can an isolator of damping ratio 0.1 be designed to limit the transmitted force to $1000 \mathrm{~N}$ and the steady-state amplitude to $3 \mathrm{~mm}$ ?

Key Concepts

Rotational Unbalance

Rotational unbalance refers to the condition in a rotating system where the distribution of mass is not symmetric about the rotational axis. This asymmetry leads to periodic forces as the system rotates, serving as a source of vibration. Understanding unbalance is crucial in evaluating the dynamic behavior of rotating machinery and in designing mitigation measures, such as isolators, to reduce vibration amplitudes and transmitted forces.

Forced Vibrations

Forced vibrations occur when a time-varying external force continuously excites a system. In engineering applications such as engines, the periodic excitation due to rotating unbalance results in forced harmonic vibrations. Analyzing forced vibration problems helps in determining the steady-state response of the system, such as amplitude and phase, under cyclic loads, which is key for ensuring that designed isolators maintain performance within allowable limits.

Damping Ratio

The damping ratio is a dimensionless parameter that quantifies the amount of damping in a system relative to critical damping. It influences how quickly vibrations decay and affects the vibratory amplitude and resonance behavior of the system. In applications like vibration isolation, specifying an appropriate damping ratio is critical to controlling both the amplitude of the system's response and the force transmitted through the isolators.

Vibration Isolation

Vibration isolation involves designing systems to reduce the transmission of vibrational energy from a source to its surroundings. By using isolators and tailored damping properties, engineers can limit the magnitude of both the oscillatory motion (steady-state amplitude) and the transmitted forces to prevent damage and improve performance. The process requires careful consideration of dynamic characteristics such as natural frequency, damping, and the excitation frequency.

Transmissibility

Transmissibility is the ratio of the output amplitude (or force transmitted) to the input amplitude of a vibratory system. It is a key concept in determining how effectively a vibration isolator reduces the impact of external excitation. The transmissibility factor depends on the system's damping ratio and the ratio of forcing frequency to the system’s natural frequency. Proper evaluation of this factor allows for designing isolators that meet specified limits on amplitude and transmitted force.
