A 600.0-N bricklayer is 1.5 m from one end of a uniform scaffold that is 7.0 m long and weighs

step 1 Once again, welcome to a new problem. This time we're dealing with static equilibrium. So if you

A 600.0-N bricklayer is 1.5 m from one end of a uniform...

Key Concepts

Static Equilibrium

Static equilibrium is the condition in which a system experiences no net force or moment, meaning that the sum of all forces and the sum of all torques (moments) in the system are zero. This principle is essential in analyzing structures like beams or scaffolds to determine the distribution of forces applied by supports, ensuring that the structure remains at rest.

Free-Body Diagram

A free-body diagram is a simplified representation of an object or system that shows all external forces and moments acting on it. This diagram is a fundamental tool in mechanics, as it helps in visualizing the problem, setting up equilibrium equations, and ensuring that all forces, including applied loads and reactions from supports, are accounted for.

Torque (Moment) Calculations

Torque, also known as moment, is the measure of a force's tendency to cause rotation about a pivot point and is calculated as the product of the force and its perpendicular distance from the pivot. In static problems, the sum of the torques about any point must be zero, which allows the calculation of unknown forces when the distances (lever arms) and magnitudes of other forces are known.

Center of Gravity

The center of gravity is the point at which the entire weight of a body or system can be considered to act. For uniform objects, this is typically at the geometric center. Knowing the center of gravity simplifies force analysis by allowing distributed loads to be treated as if they are concentrated at a single point.

Reaction Forces

Reaction forces are the forces exerted by supports or connections to maintain the equilibrium of a structure under load. In static analysis, these forces are determined by applying the conditions for equilibrium, ensuring that the total force and total moment on the system are balanced.

Transcript

00:01 Once again, welcome to a new problem.

00:04 This time we're dealing with static equilibrium.

00:07 So if you think about static equilibrium, what happens is we understand that the sum of forces in the x direction is zero.

00:17 The sum of forces in the y direction is zero.

00:20 And then the sum of a torque around a pivot is also going to be zero.

00:26 When it comes to forces, we're using newton's second law.

00:32 Is saying that the product of the force is the mass and the acceleration.

00:39 So it's the mass and the acceleration.

00:42 That's the product of the force.

00:44 So we're going to use this to solve specific problems involving a scaffold.

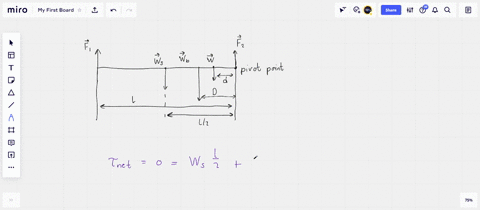

00:51 So assume that we have a scaffold and the actual length of the scaffold, l is equivalent to seven meters.

01:01 That means half of the scaffold in the middle, l over 2 is the same as 3 .5 meters, if you want to think of it that way.

01:14 And then for this scaffold, the middle, the weight is 800 newton.

01:23 So the weight of the scaffold is 800 newtons.

01:27 And we also have a brick layer that's 1 .5 meters from the right edge.

01:32 And this one weighs 600 newtons.

01:37 So this is 1 .5 meters.

01:40 We're going to call this x1 to 1 .5 meters and the weight is 600 newtons.

01:46 And then the other thing that happens is we have a pile of bricks and these ones sit three meters.

01:57 These ones see three meters from the edge.

02:00 So that means they're probably somewhere here and they're weigh 500.

02:05 So mg, this one we're going to call it mg bricks is 500 mutins and they seat three meters from the edge.

02:17 So that means this distance, you know, we can rectify this, we know this is l over 2, but then this distance right here, x2 is equivalent to 3 .0 meters.

02:32 X2 is equivalent to 3 .0 meters.

02:36 Equivalent to 3 .0 meters and then the brick layer is 600 newtons.

02:43 This is the right edge, the pivot.

02:47 So the question is determine, we want to determine these two forces.

02:54 We want to call this r1 and then we're going to call this r2.

03:02 So these are the two forces that we're dealing with.

03:06 We want to figure out what their reaction.

03:09 Is.

03:11 So coming back to the problem, determine the forces, and there happen to be reactions.

03:22 So determining the forces, r1 and r2, that keep the scaffold at static equilibrium.

03:41 So replacing it at static equilibrium...
