A 7 -ft tall steel cylinder has a cross-sectional area of 15 ft^2. At the bottom, with a height

step 1 So let's start with the statement of this question. I say there is a 7 feet tall steel cylinder,

A 7 -ft tall steel cylinder has a cross-sectional area of 15...

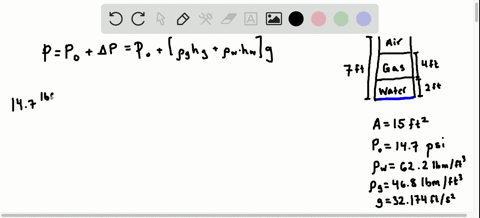

A 7 -ft tall steel cylinder has a cross-sectional area of $15 \mathrm{ft}^{2}$. At the bottom, with a height of $2 \mathrm{ft}$, is liquid water, on top of which is a 4 -ft-high layer of gasoline. The gasoline surface is exposed to atmospheric air at 14.7 psia. What is the highest pressure in the water?

Key Concepts

Absolute Pressure vs Gauge Pressure

Absolute pressure is the total pressure including atmospheric pressure, while gauge pressure measures the pressure relative to the ambient atmospheric pressure. This distinction is key when calculating pressures in systems exposed to the atmosphere, as the starting point for any pressure calculation is often the known atmospheric pressure.

Fluid Density

Density is a fundamental property that directly influences the pressure in a fluid, since a fluid’s weight per unit volume contributes to the pressure at a given depth. Understanding how different densities affect pressure is crucial in problems with multiple fluids, as each fluid’s contribution is proportional to its density.

Hydrostatic Pressure

This concept refers to the increase in pressure experienced by a fluid at rest as depth increases, due to the weight of the fluid above. It is typically calculated using the formula P = P? + ?gh, where P? is the pressure at the free surface, ? is the fluid density, g is the gravitational acceleration, and h is the depth below the surface.

Layered Fluids

This involves analyzing systems where more than one fluid, each with different densities, is present. In such cases, the total pressure at a point is determined by adding the contributions of each layer’s depth and density, making it important to account for each layer individually when calculating pressures at points within the fluid.
