A 900-N lawn roller is to be pulled over a 5.0 -cm high curb...

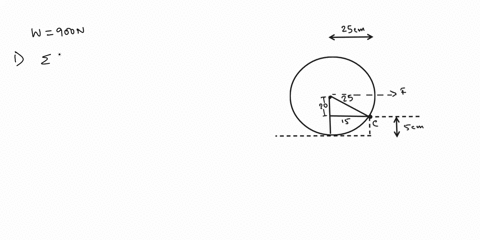

A 900-N lawn roller is to be pulled over a $5.0$ -cm high curb (see Fig. 5-22). The radius of the roller is $25 \mathrm{~cm}$. What minimum pulling force is needed if the angle $\theta$ made by the handle is $\left(\right.$ a) $0^{\circ}$ and $(b) 30^{\circ}$ ? [Hint: Find the force needed to keep the roller balanced against the edge of the curb, just clear of the ground.]

Key Concepts

Geometric Analysis in Statics

Geometric analysis involves using the dimensions and angles inherent in the problem—such as the radius of the roller, height of the curb, and the angle of the applied force—to determine the positions and distances required for calculating forces and torques. This analysis forms the backbone of setting up a correct physical model of the problem.

Force Components and Direction

When a force is applied at an angle, it is important to resolve it into its horizontal and vertical components. This concept is critical because only the appropriate component of the pulling force contributes effectively to the torque needed to lift the roller over the curb, affecting the overall force calculation.

Torque and Equilibrium

This key concept involves ensuring that the sum of all torques (moments) acting on the roller about the pivot point is zero during the lifting process. Understanding torque and equilibrium helps in determining the force required to tip the roller over the curb without it falling back, which is essential in statics problems that involve rotational balance.

Lever Arm and Moment Arm

The lever arm is the perpendicular distance from the line of action of a force to the pivot point. In this context, calculating the moment arms for the weight of the roller and the pulling force is crucial for setting up the torque balance equation that determines the minimum force needed to overcome the curb.
