(a) A particle starts by moving to the right along a horizontal line; the graph of its position

(a) A particle starts by moving to the right along a...

Key Concepts

Derivative as Slope

Taking the derivative of a function, which in this context involves computing the slope of the position graph at any point, is a central concept in calculus. The value of the derivative (or the slope) at each point on the graph tells you how fast and in which direction the position of the particle is changing, thereby linking the graphical behavior of a function to its instantaneous motion.

Graphical Interpretation in Kinematics

Interpreting graphs is crucial for understanding the movement of objects. Analyzing the slope of the position function helps in visualizing the intervals where the particle moves to the right, left, or remains stationary. Similarly, sketching the velocity function based on these slopes reveals changes in the direction and speed throughout the motion, which is a key skill in both physics and calculus.

Position Function

The position function describes how an object’s location changes over time. It is a key concept in kinematics because it establishes the relationship between time and the object's spatial position. The shape of this function’s graph directly reflects the particle’s motion along a line, providing insight into where the particle is at any given moment.

Velocity Function

The velocity function is the derivative of the position function and represents the rate of change of position with respect to time. It indicates both the speed and the direction of the particle's motion: positive values mean the particle is moving to the right, negative values mean it is moving to the left, and a zero value indicates that the particle is momentarily at rest.

Transcript

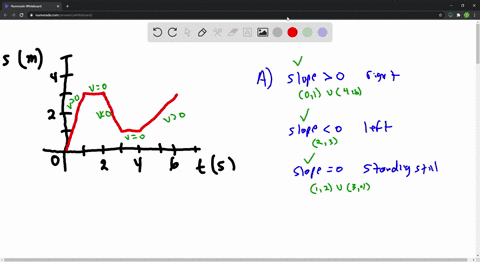

00:01 So for that first part, first determine where this is going to be moving to the left, right, and moving still.

00:09 So there's two ways we can think about it.

00:11 We can just look at the slopes of these lines, and so if the slope is going to be larger than zero, then we're moving to the right.

00:25 If the slope is less than zero, we're moving to the left, and if the slope is equal to zero, we're not moving.

00:36 So what did they say? standing still.

00:47 So we just need to come over here and look to see what falls into that category.

00:52 So first notice, from 0 to it looks like about 1, the slope is going to be larger than 0.

01:02 So since this is positioned, the slope of that should just be the velocity.

01:05 So i'll just go ahead and put velocity over here.

01:08 So on this first interval, velocity is going to be greater than zero.

01:13 So that goes from zero to one.

01:15 So we can just go over here and write that.

01:17 So it would be from zero to one to start.

01:24 And then on this next interval, we go from 1 to 2.

01:30 And notice how it's constant.

01:32 So velocity is 0 here.

01:34 So that would just be 1 to 2.

01:39 And then on this next part, notice the soap is negative, so this would be less than zero.

01:46 So that would be where we're moving to the level.

01:49 Actually, i put this in the wrong space.

01:51 This should be down here for standing still.

01:54 And then this goes from two to three.

01:58 So two to three.

02:01 We're moving to the left.

02:03 And then from three to four, our velocity is going to be zero because it's just constant.

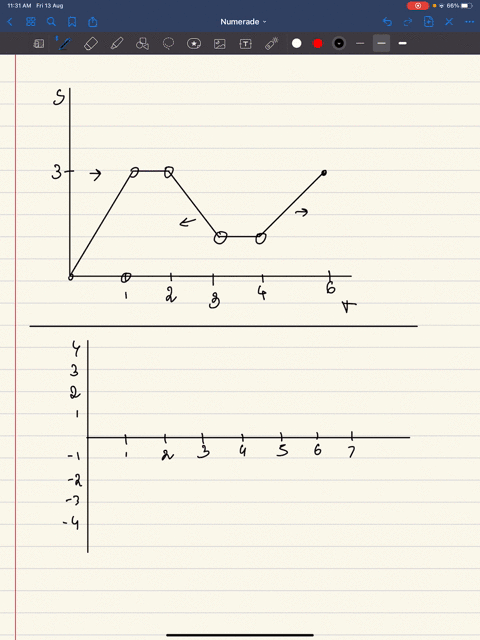

02:08 And so that would be from 3 to 4 so down here we would do union 3 to 4 and then after this our velocity is always positive and that would just be from 4 to 6 so then union 4 to 6 so those parts in green are going to be the time intervals okay now for part b they want to actually draw our velocity graph so i'm just going to assume that we aren't moving at all when we start.

02:43 So if i come over here and draw this now.

02:53 Let me put tick marks to kind of match it up and then i'll just kind of go up to like six or something as well.

03:04 So we need to figure out what is going to be the slope at each of these points.

03:09 Well here we have the point zero zero and then up here we have the point one 3.

03:19 So it's a constant slope on here.

03:24 And so we would just use the slope formula to get that.

03:26 So actually, i'll do that over here.

03:28 So this would be like part one.

03:30 And actually, i guess this should be two or part b to the question...
